1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
Specifications
Color :
Green
Type :
Refrigeration Compressor
Certification :
CE
Place of Origin :
China
MOQ :
1 Piece
Price :
discussed
Supply Ability :
10000Pieces/Year
Delivery Time :
5-7 Days
Packaging Details :
Standard Wooden Package
Application :
Refrigeration Parts
Cylinder :
1
Warranty :
1 Year
Power Source :
AC POWER
Model Number :
4EC-4.2Y-40S,4EES-4Y-40S
Payment Terms :
T/T,Western Union,
Weight :
105KG
Power :
4HP
Refrigerant :
R404 R407C R134A
Description
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
Product Overview

4HP High Quality Refrigeration Unit Compressor (4EC-4.2Y) / 4EES-4Y

Company Advantages
  • First-level agent offering competitive pricing
  • Comprehensive model availability
  • Fast delivery within 1-7 days after payment
  • Excellent after-sales service
  • Established client base domestically and internationally
Product Features
1. New Valve Plate Design
  • Advanced geometric concept for pressure valves - optimized for low rear expansion
  • High cooling capacity with minimal energy requirements
  • ECOLINE cylinder head system: Flexible operation in tandem
2. Motor
  • Efficient performance under full- and part-load conditions with broadband characteristics
  • Universal refrigeration compressor: Motor version 2 for medium and low temperature applications
  • Motor versions 1 and 3 available for special applications
3. Capacity Control
  • CRII system - intermittent blocked suction (e.g., 4-cylinder compressor with CRII on both heads: Range of control from 100% to ~10%)
  • ECOLINE VARISPEED - built-in frequency inverter
4. Downward Compatibility
  • Essential internal components completely redesigned
  • Standard outer contour: Every ECOLINE model is downward compatible
5. Drive Gear
  • New piston and connecting rod design
Technical Specifications
Technical Data
Parameter SI Units IP Units
Displacement (1450 RPM 50Hz) 95.3 m³/h 3365.5 CFH
Displacement (1750 RPM 60Hz) 115.02 m³/h 4061.9 CFH
No. of cylinder x bore x stroke 6 x 65 mm x 55 mm 6 x 2.56 inch x 2.17 inch
Weight 213 kg 470 lb
Max. pressure (LP/HP) 19 / 32 bar 275 / 464 psi
Connection suction line 54 mm - 2 1/8" 54 mm - 2 1/8"
Connection discharge line 35 mm - 1 3/8" 35 mm - 1 3/8"
Oil type R134a/R407C/R404A/R507A/R407A/R407F BSE32(Standard) / R134a tc>70°C: BSE55 (Option) BSE32(Standard) / R134a tc>155°F: BSE55 (Option)
Oil type R22 (R12/R502) B5.2(Option) B5.2(Option)
Standard Delivery Contents
Component SI Units IP Units
Motor protection SE-B2 SE-B2
Enclosure class IP54 (Standard), IP66 (Option) IP54 (Standard), IP66 (Option)
Vibration dampers Standard Standard
Oil charge 4.75 dm³ 167.2 fl oz
Motor Data
Parameter SI Units IP Units
Motor version 2 2
Motor voltage (more on request) 380-420V PW-3-50Hz 440-480V Y-3-60Hz UL
Max operating current 46.4 A 46.4 A
Winding ratio 50/50 50/50
Starting current (Rotor locked) 141.0 A Y / 233.0 A YY 245.0 A
Sound Measurements
Measurement SI Units IP Units
Sound power level (-10°C / 45°C) 79.3 dB(A) @50Hz 81.8 dB(A) @60Hz
Sound power level (-35°C / 40°C) 85.0 dB(A) @50Hz 87.5 dB(A) @60Hz
Sound pressure level @ 1m (-10°C / 45°C) 71.3 dB(A) @50Hz 73.8 dB(A) @60Hz
Sound pressure level @ 1m (-35°C / 40°C) 77 dB(A) @50Hz 79.5 dB(A) @60Hz
Sound power level (-10°C / 45°C) R134a 77.3 dB(A) @50Hz 79.8 dB(A) @60Hz
Sound pressure level @ 1m (-10°C / 45°C) R134a 69.3 dB(A) @50Hz 71.8 dB(A) @60Hz

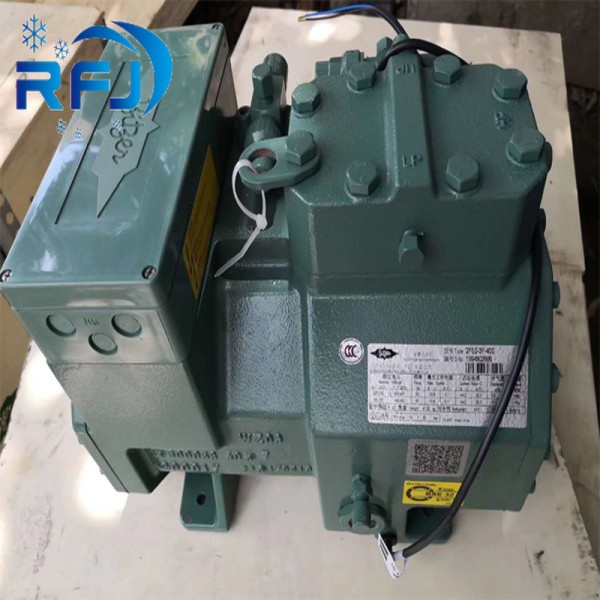

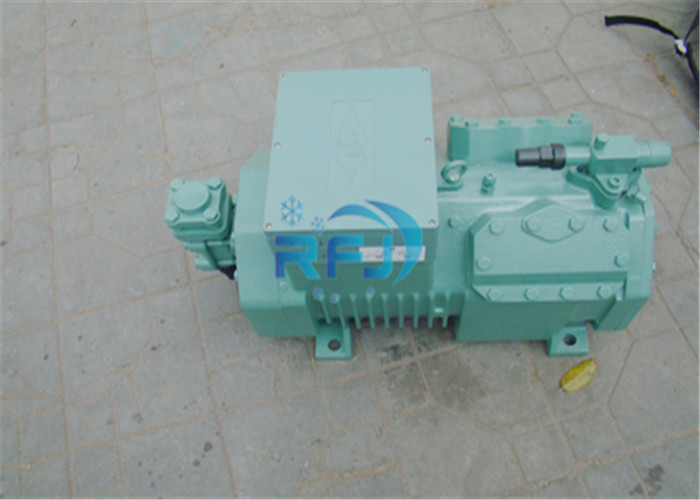

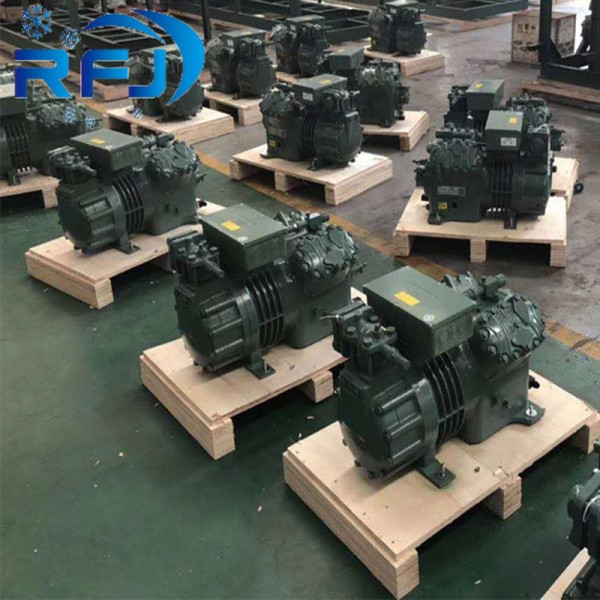

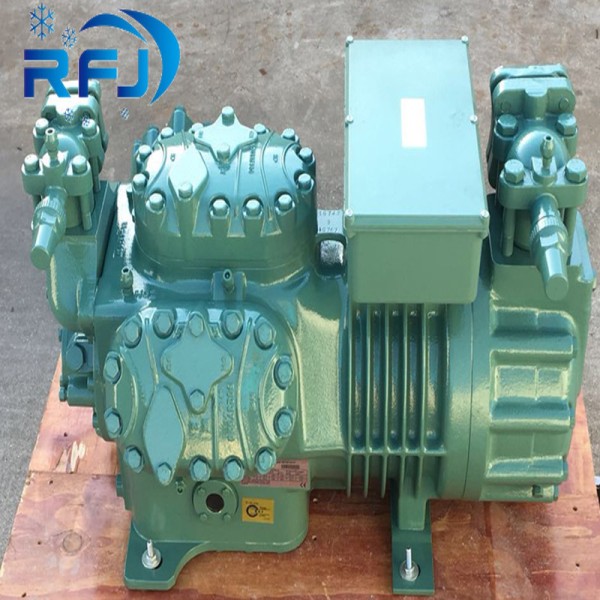

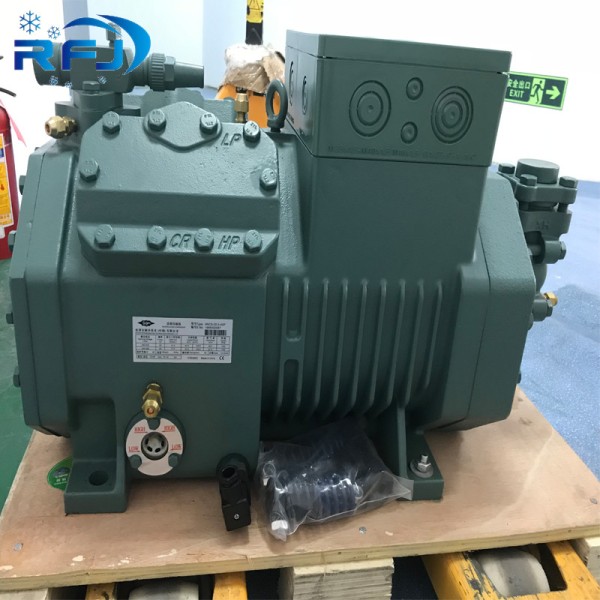

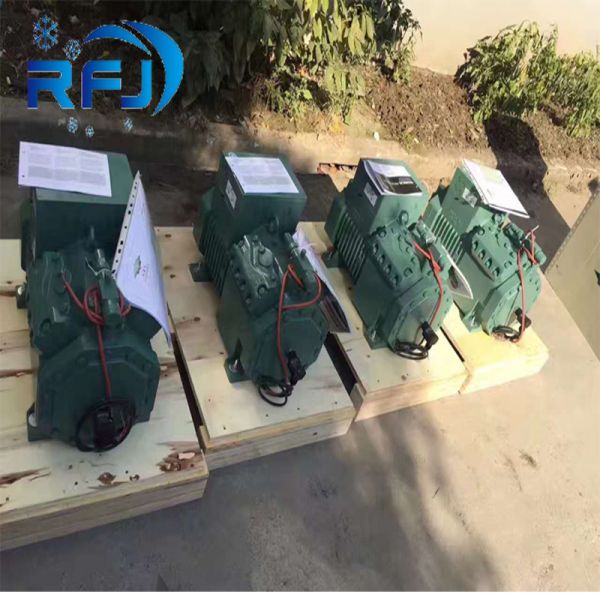

Product Images
1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval 1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval 1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval 1 Cylinder 4HP Refrigeration Unit Compressor 4EC-4.2Y-40S/4EES-4Y-40S ROHS CE Approval
