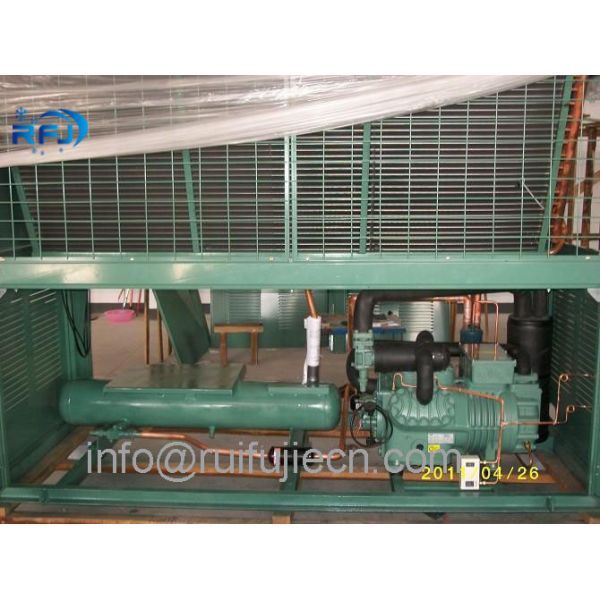

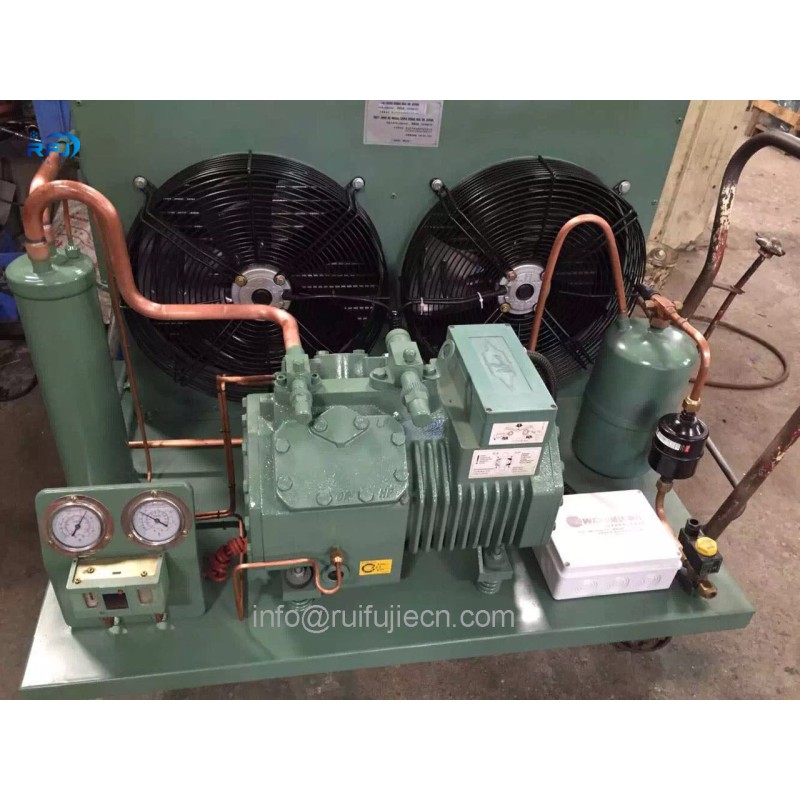

RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
Specifications
Material :
Stainless steel
Power of Condensing Fan Motor (W) :
330
Type :
Steam Condenser
Condensation Forms :
Air-Cooled
Certification :
CE
Application Field :
Automotive Industry
HS Code :
8418991000
Model Number :
4GE-23Y-40P
Cold Room Temperature :
-10-35
Condition :
New
Brand Name :
compressor
Payment Terms :
T/T,Western Union,MoneyGram
Place of Origin :
SHENZHEN
MOQ :
1 pc
Price :
discussed
Supply Ability :
1000pcs/year
Delivery Time :
15-20 days
Packaging Details :
Customerized Packing
Power of Crankcase Heater (W) :
0-120
Range of Evaporating Temperature :
-5-40
Description
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air-Cooled Condenser Unit For Deep Freezer
Product Overview

RFJ 4GE-23Y-40P box type air-cooled condenser unit for deep freezer applications.

Key Features
  • Box-type structure with compact design and attractive appearance
  • Scientific design ensuring steady air flow and optimal condenser heat transfer capacity
  • Rational performance design with high energy efficiency
  • Axial fan operation with good appearance and low noise
  • Easy maintenance with removable panels
  • Quality raw materials guaranteed through strong supplier relationships
Applications

Refrigeration industry, cold room projects, agriculture, food processing, restaurants, and chemical industry. Custom design services available.

RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
Product Code Explanation
F: Air cooled type
U: Condensing unit with U type condenser
BZ: Compressor code
XXX: Compressor motor rated power (HP or HP code)
Temperature Codes: HM (high & medium temp), H (high temp), M (medium temp), L (low temp), S (quick frozen)
RFJ 4GE-23Y-40P Refrigeration Controls Box Type Air - Cooled Condenser Unit For Deep Freezer
Top Discharge Compressor Condensing Unit (U Type)
Product Features
  • Fully assembled condensing unit with minimal space requirements and flexible installation
  • Double coils for condenser eliminating heat exchange loss
  • Top discharge design with air circulation following airflow principles, preventing reflow and improving heat transfer efficiency
  • External rotor motor for low noise, low power consumption, and large air volume
  • Original compressor with comprehensive internal protection system
Technical Parameters
Performance Model RFJ030H(U) RFJ040H(U) RFJ050H(U) RFJ060H(U) RFJ080H(U) RFJ100H(U) RFJ120H(U) RFJ1500H(U)
Nominal Power (HP) 3HP 4HP 5HP 6HP 8HP 10HP 12HP 15HP
Nominal Refrigerating Capacity (KW) 5.05 6.05 8.00 10.20 11.00 17.80 20.40 25.60
Motor Power (W) 180W 250W 2*180W 2*250W 2*250W 2*450W 2*450W 2*600W
Fan Diameter (mm) Φ400 Φ450 Φ400 Φ450 Φ450 Φ500 Φ500 Φ550
Number of Electric Motors 1 1 2 2 2 2 2 2
Air Volume (M³/H) 4500 4500 6220 6220 9000 13000 13000 16600
Import (mm) Φ16 Φ16 Φ16 Φ22 Φ22 Φ28 Φ28 Φ28
Export (mm) Φ10 Φ10 Φ12 Φ12 Φ12 Φ12 Φ16 Φ16
Dimensions L (mm) 750 1000 1270 1270 1370 1410 1500 1700
Dimensions W (mm) 650 650 700 700 800 850 900 900
Dimensions H (mm) 820 820 820 920 920 1030 1130 1130
Installation Size A (mm) 420 700 870 870 970 910 900 1100
Installation Size B (mm) 720 720 770 770 860 910 960 1060
Note: Above data based on condensing temperature 40℃, evaporation temperature -15℃. Manufacturer reserves the right to modify design without prior notice.
Side Discharge Compressor Condensing Unit (Ⅶ Type)
Product Features
  • Fully assembled condensing unit with minimal space requirements and flexible installation
  • Original compressor with comprehensive internal protection system
  • Side discharge design with separated condenser and compressor for maximum heat transfer speed and efficiency
  • External rotor motor for low noise, low power consumption, and large air volume
Technical Parameters
Performance Model RFJ080H(VII) RFJ100H(VII) RFJ120H(VII) RFJ150H(VII) RFJ200H(VII)
Nominal Refrigerating Capacity (KW) 13.0 16.5 21 25 29
Area (㎡) 70 85 105 130 130
Motor Power (W) 2*180W 2*250W 2*250W 2*450W 2*600W
Fan Diameter (mm) Φ400 Φ450 Φ450 Φ500 Φ550
Number of Electric Motors 2 2 2 2 2
Air Volume (M³/H) 4500x2 5000x2 5000x2 7000x2 8500x2
Dimensions L (mm) 1700 1800 1900 2000 2200
Dimensions W (mm) 700 750 800 870 870
Dimensions H (mm) 850 940 1040 1150 1150
Installation Size A (mm) 1300 1400 1500 1600 1800
Installation Size B (mm) 660 710 760 830 830
Note: Above data based on condensing temperature 40℃, evaporation temperature -18℃. Manufacturer reserves the right to modify design without prior notice.
