Medium And Low Temperature Maneurop Hermetic Compressor Condensing Unit MT80HP4CVE MTZ80HP4CVE MTZ64HM4CVE
Medium And Low Temperature Maneurop Hermetic Compressor Condensing Unit MT80HP4CVE MTZ80HP4CVE MTZ64HM4CVE
Medium And Low Temperature Maneurop Hermetic Compressor Condensing Unit MT80HP4CVE MTZ80HP4CVE MTZ64HM4CVE
Medium And Low Temperature Maneurop Hermetic Compressor Condensing Unit MT80HP4CVE MTZ80HP4CVE MTZ64HM4CVE
Specifications
installation size(mm) :
1180*610
Brand Name :
Maneurop
Certification :
CE
MOQ :
1
Price :
discussed
Supply Ability :
100
Delivery Time :
5-7DAYS
Packaging Details :
WOOD Packaging
nominal power :
7HP
Specifications of connecting tube(mm) :
12*10
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Place of Origin :
CHINA
brand :
Maneurop
Model Number :
MT80HP4CVE(MT80-4VI),MTZ80HP4CVE(MTZ80-4VI),MTZ64HM4CVE(MTZ64-4VI)
dimension(mm) :
1220*850*770
refrigerating capacity :
14250W
Description
Medium And Low Temperature Maneurop Hermetic Compressor Condensing Unit MT80HP4CVE MTZ80HP4CVE MTZ64HM4CVE

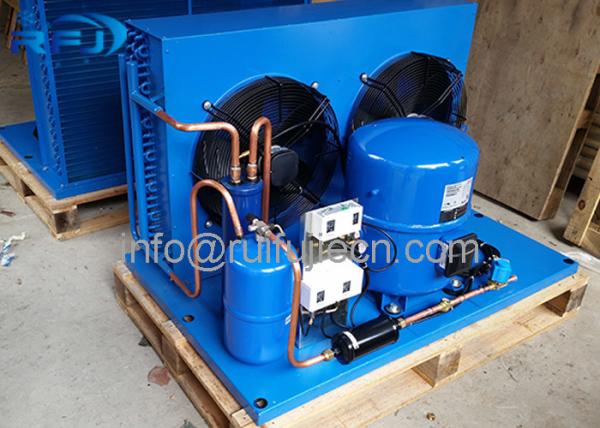

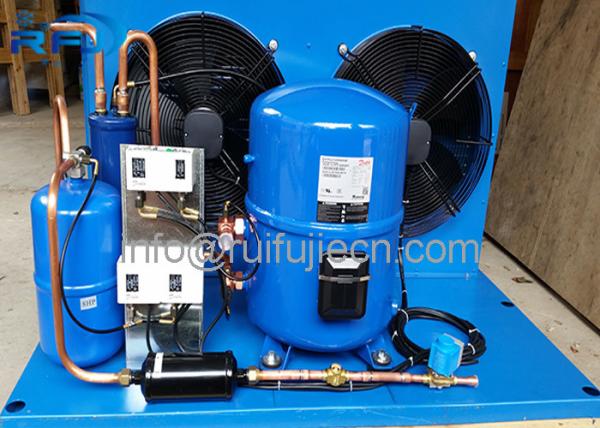

Maneurop Hermetic Compressor Condensing Unit

The MG series compressor condensing unit consists of France-built Maneurop MT and LT series hermetic compressors, premium condenser, motor, base plate, liquid receiver and pressure controller. It is suitable for R-22 or R404A refrigerants. The unit delivers high efficiency, energy savings, and is designed for medium and low temperature cold storage applications.

Main Technical Parameters
Model Nominal HP Refrigerating W Return Gas (mm) Outlet (mm) Cooling Water Consumption m³/h Dimension A (mm) Dimension B (mm) Dimension C (mm) Installation Size a (mm) Installation Size b (mm)
MT36/WN03M3433016101.3810300600600250
MT50/WN05M4521022121.61010350720780300
MT64/WN05M56740221221010350720850300
MT80/WN08M6.7858028162.61080350720890300
MT100/WN10M81021028163.21120350800890300
MT125/WN10M1013710281641120350800990300
MT160/WN15M131730028165.21220400800780350
MT36/WN05H3698016101.41010350720780300
MT40/WN05H3.5757022121.61010350720780300
MT50/WN06H48680221221010350720850300
MT64/WN08H51132022122.61080350720890300
MT80/WN10H6.714250281631120350800890300
MT100/WN10H81712028163.21120350800890300
MT125/WN15H102251028164.91220400800990350
MT160/WN15H132825028165.21220400800990350
Note: Medium high temperature condition: evaporation temperature is -15°C, condensing temperature is 50°C. Medium and high temperature condition: evaporation temperature is -5°C, condensing temperature is 50°C.
Medium And Low Temperature Maneurop Hermetic Compressor Condensing Unit MT80HP4CVE MTZ80HP4CVE MTZ64HM4CVE Medium And Low Temperature Maneurop Hermetic Compressor Condensing Unit MT80HP4CVE MTZ80HP4CVE MTZ64HM4CVE
