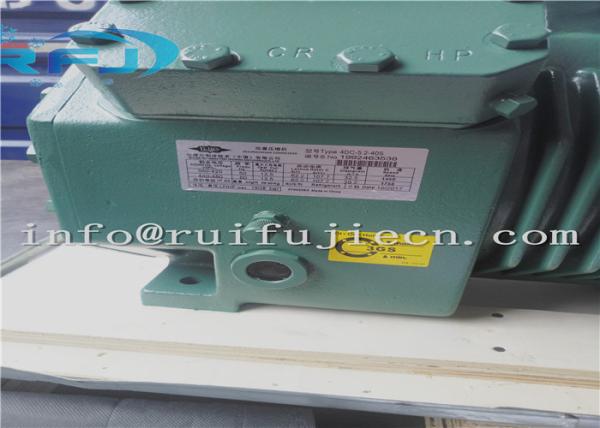

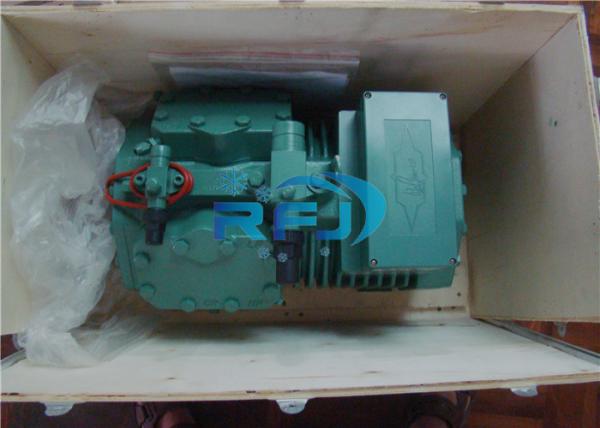

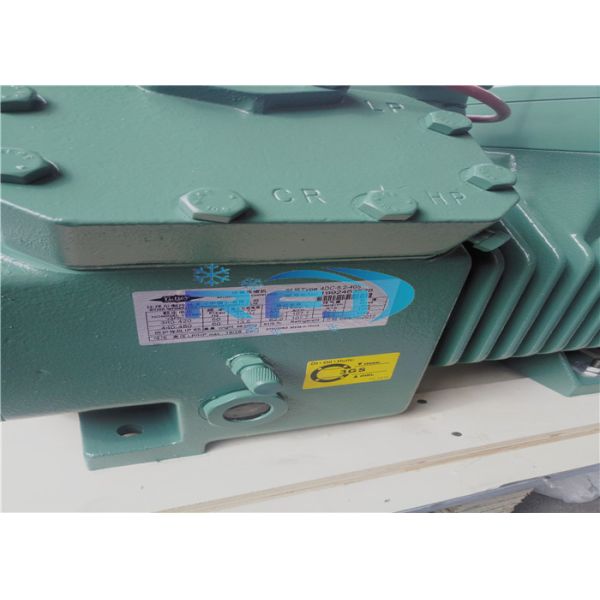

AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
Specifications
Power Source: :
AC Power
Application: :
Refrigeration Parts
Type: :
Refrigeration Compressor
Certification: :
CE
Weight(kg): :
350
Certification :
CE
Place of Origin :
Germany
MOQ :
1
Price :
discussed
Supply Ability :
50
Delivery Time :
1-30DAYS
Packaging Details :
wooden packaging
Place of Origin: :
Germany
Model Number :
8GE-60Y-40P,8GC-60.2Y-40P
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Power supply [V/~/ :
380-420/3/50Hz;440-480/
Description
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
Advanced Design Features
  • New valve plate design with geometric concept for pressure valves - optimized for low rear expansion
  • High cooling capacity with minimal energy requirements
  • ECOLINE cylinder head system: Flexible operation in tandem configuration
Motor Performance
  • Efficient operation under full- and part-load conditions with broadband characteristics
  • Universal refrigeration compressor: Motor version 2 for medium and low temperature applications
  • Motor versions 1 and 3 available for special applications
Capacity Control Systems
  • CRII system - intermittent blocked suction (e.g., 4-cylinder compressor with CRII on both heads)
  • Control range from 100% to ~10% capacity
  • ECOLINE VARISPEED - built-in frequency inverter for precise control
Compatibility & Drive System
  • Essential internal components completely redesigned
  • Downward compatible: Every ECOLINE maintains standard outer contour
  • New piston and connecting rod design in drive gear system
Technical Specifications
Displacement (1450 RPM 50Hz) 221 m³/h
Displacement (1750 RPM 60Hz) 266.7 m³/h
No. of cylinder x bore x stroke 8 x 82 mm x 60 mm
Weight 374 kg
Max. pressure (LP/HP) 19 / 28 bar
Connection suction line 76 mm - 3 1/8"
Connection discharge line 54 mm - 2 1/8"
Oil type R134a/R407C/R404A/R507A/R407A/R407F BSE32 (Standard) / R134a tc>70°C: BSE55 (Option)
Oil type R22 (R12/R502) B5.2 (Option)
Motor Data
Motor version 1
Motor voltage (more on request) 380-420V PW-3-50Hz
Max operating current 139.0 A
Winding ratio 60/40
Starting current (Rotor locked) 401.0 A D / 590.0 A DD
Max. Power input 78.0 kW
Standard Delivery
Motor protection SE-B2
Enclosure class IP54 (Standard)
Vibration dampers Standard
Oil charge 5.0 dm³
Available Options
Discharge gas temperature sensor Option
Capacity control 100-75-50% (Option)
Capacity Control - infinite 100-50% (Option)
Crankcase heater 140 W (Option)
Oil pressure monitoring MP54 (Option), Delta-PII (Option)
Sound Measurement
Sound power level (+5°C / 50°C) 87.5 dB(A) @ 50Hz
Sound power level (-10°C / 45°C) 89.0 dB(A) @ 50Hz
Sound pressure level @ 1m (+5°C / 50°C) 79.5 dB(A) @ 50Hz
Sound pressure level @ 1m (-10°C / 45°C) 81.0 dB(A) @ 50Hz
AC Power Air Compressor 8GE-60Y-40P Big Power 70hp High Cooling Capacity 8GC-60.2Y-40P
