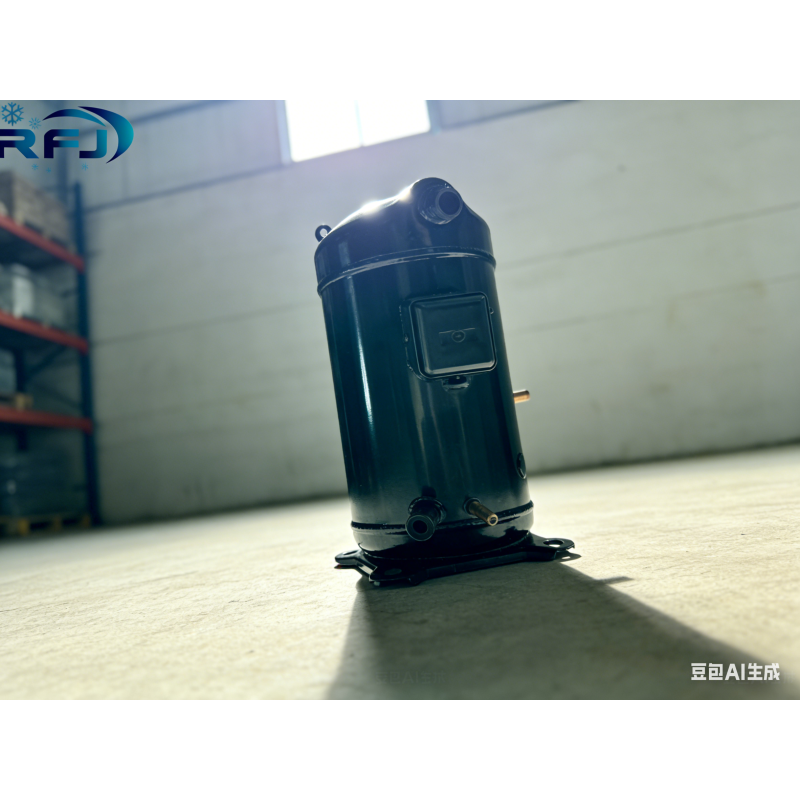

ZP Scroll Compressor Refrigeration Controls ZP36KSE-TFM-522
ZP Scroll Compressor Refrigeration Controls ZP36KSE-TFM-522
Specifications
Refrigerant :
R410a
Model Number :
ZP36KSE-TFM-522
Color :
black
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Price :
discussed
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
5000 pieces
Delivery Time :
1-4 days
Packaging Details :
wooden package
Displacement :
6.0
Application :
Refrigeration Parts
Type :
Refrigeration Compressor
Guarantee :
one years
Description
ZP Scroll Compressor Refrigeration Controls ZP36KSE-TFM-522
ZP Scroll Compressor refrigerant compressor, refrigeration compressor ZP36KSE-TFM-522
Hermetic Scroll Compressor ZP Series
1. ZP16KSE, ZP24KSE, ZP29KSE, ZP31KSE, ZP36KSE
2. Use R410A
3. Low price & Original
Product Specifications
Technical Data
Parameter Value
Displacement [m³/h] 6,0
Sound power [dBA] 68
Sound pressure level [dB] 57
Net Weight [kg] 29,4
Oil charge [dm³] 1,3
Maximum high pressure [bar] 43
Maximum standstill pressure [bar] 28,0
Maximum lowside temperature [°C] 50
PED category 1
Electrical Data
Parameter Value
Power supply [V/~/Hz] 220-240V/1/50Hz
Locked rotor current [A] 98,0
Max. operating current [A] 22,0
Winding resistance [Ω] 0,7
Start winding resistance [Ω] 0,9
Connections
Connection Type Size
Suction connection with supplied sleeve 7/8"
Discharge connection with supplied sleeve 1/2"
Series Features
  • 25 models in series
  • Displacement from 2,6 m³/h to 60,8 m³/h
  • Cooling capacity: from 3,2 kW to 82,4 kW (for te=5ºC, tc=50ºC, R410A)
  • Available with motors on 50 Hz and 60 Hz
  • Lubrication with ester oil
Standard Equipment
  • Screwed sight glass
  • Rotalock connections
  • Schraeder connection
  • Assembly washer
  • Discharge temperature control
Optional Equipment
  • External crankcase heater (70W)
Application
  • Medium temperatures (from 7 ºC to -30 ºC)
  • Refrigerant R410A
