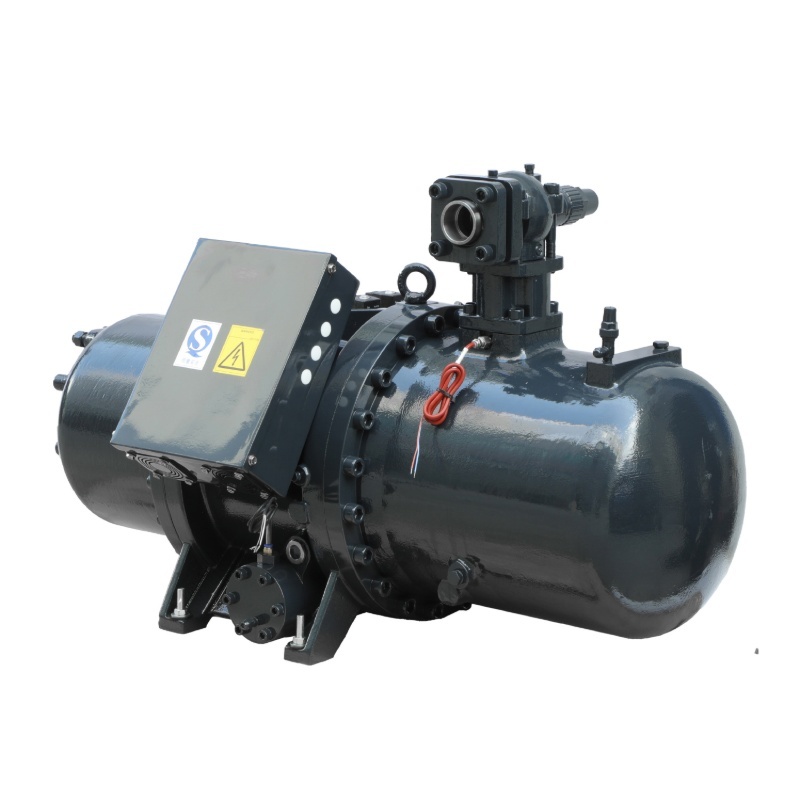

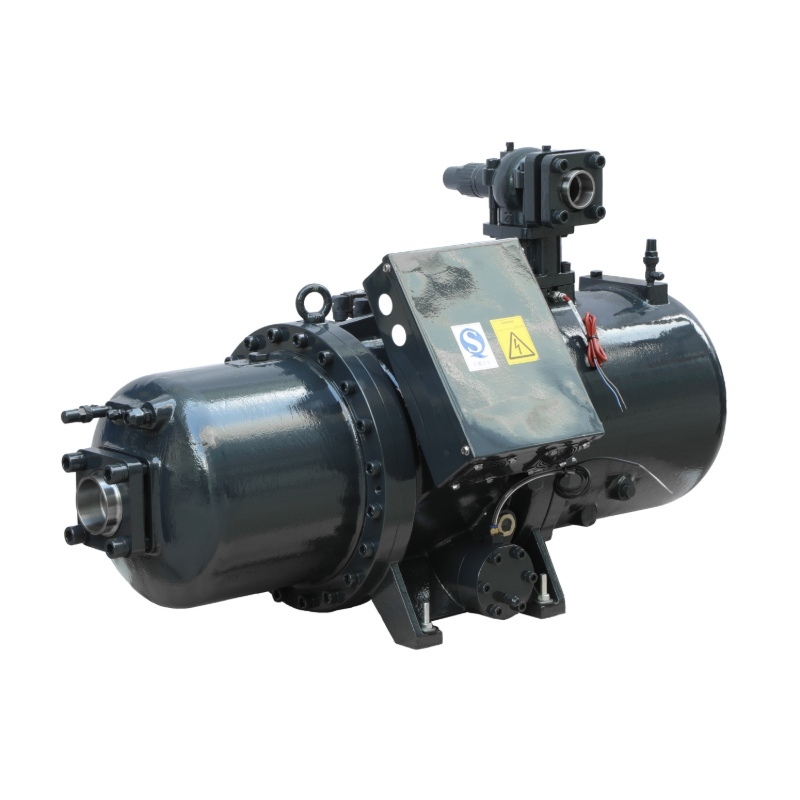

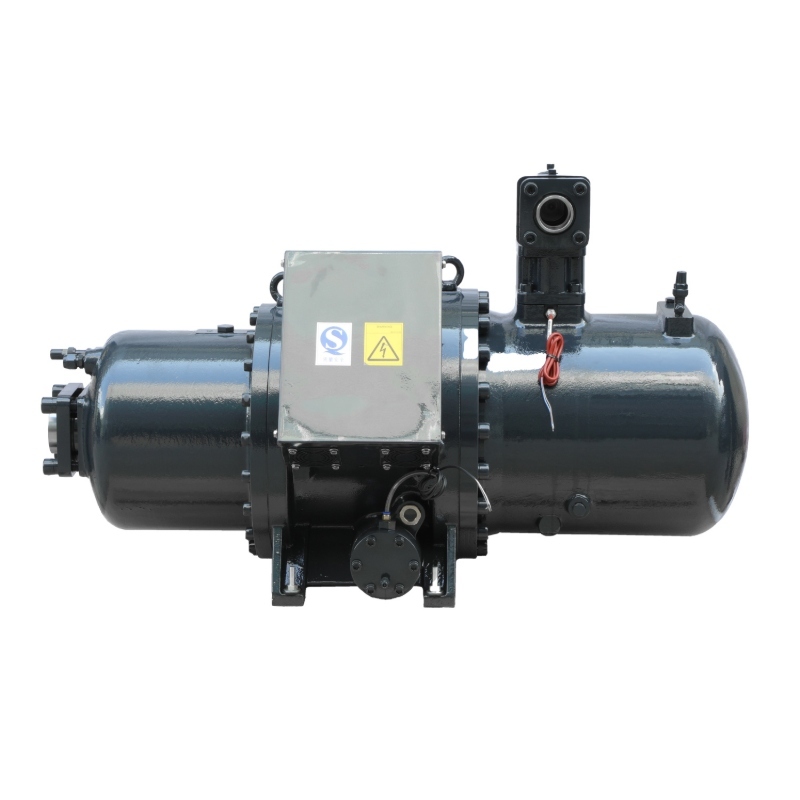

The RC2-410B HVAC screw compressor is engineered for high-demand commercial air conditioning and industrial chilling systems. Driven by a twin-shaft rotary displacement design, it delivers high displacement volume and consistent cooling performance under intensive thermal loads.

Precision Rotor Profile & Energy Efficient Motor
Utilizing patented 5:6 asymmetric screw rotors produced on high-precision CNC machining centers, this HVAC screw compressor minimizes internal pressure leakage and mechanical drag. Its integrated 3-phase, 2-pole squirrel-cage motor is cooled directly by suction refrigerant gas, ensuring maximum energy efficiency across both 50Hz and 60Hz electrical frequencies.

Flexible 4-Stage Capacity Control & Refrigerant Adaptability
To optimize part-load energy consumption in large HVAC installations, the internal slide valve allows 4-stage step capacity regulation (25% - 50% - 75% - 100%) and continuous stepless modulation (25% - 100%). Compatible with R22, R407C, R404A, and R507A, this HVAC screw compressor seamlessly integrates into diverse refrigeration and chiller plant architectures.

• Double-Walled Cast Iron Housing: Built from FC25 gray cast iron with inner rib reinforcement to absorb operational vibration and suppress noise.
• Direct Flange-On Oil Separator: Cast from FC500 ductile iron for high-pressure durability, low pressure drop, and efficient oil separation.
• Extended Bearing Assembly: Features 10 radial and axial bearings paired with an alpha axial balance piston to balance shaft thrust forces and prolong operating lifespan.
• Perceptive Protection Module: Standard PTC thermistors continuously monitor motor coil heat, discharge gas temperatures, phase sequence, and phase loss.

• Large Commercial HVAC Systems: Ideal for centralized air conditioning systems, rooftop packages, and large commercial building HVAC units.
• Liquid Chiller Plants: Designed for air-cooled and water-cooled chiller systems requiring high part-load efficiency and flexible load matching.
• Commercial Cold Storage: Suitable for medium- and low-temperature cold storage warehouses, cold chain distribution hubs, and food processing plants.
• Industrial Process Cooling: Provides stable, continuous cooling performance for manufacturing, chemical, and pharmaceutical processing lines.

With over 20 years of technical expertise in the refrigeration industry, Coolstart is a modern, large-scale manufacturer delivering high-performance cooling equipment worldwide. Our comprehensive catalog covers scroll compressors, reciprocating compressors, rotary compressors, semi-hermetic compressors, screw compressors, cold storage units, quick-freezing systems, and ice-making machinery. Equipped with complete OEM/ODM customization capabilities, Coolstart serves commercial and industrial buyers across Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and other international markets, earning trust through technical competence, competitive pricing, and long-term B2B partnerships.

A1: The RC2-410B model operates with R22, R407C, R404A, and R507A refrigerants, offering broad system design flexibility.

A2: This model supports 4-stage step capacity regulation (25% - 50% - 75% - 100%) as well as continuous stepless control ranging from 25% to 100%.

A3: The compressor includes integrated PTC thermistor modules that safeguard against motor coil overheating, high discharge gas temperature, phase loss, and phase sequence errors.

A4: Samples in stock ship within 3 business days, while standard mass production orders take 10 to 15 working days.

A5: We provide a 1-year standard warranty across all units. Payments are accepted via TT or Western Union under FOB Shenzhen or EXW trade terms in USD.
