Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Specifications
Certification :
CE
Displacement (60/50Hz) :
611/508 m3/hr
Model Number :
RC2-510B-Z, RC2-510B-W
Refrigerant :
R22, R407C, R404A, R507A
Price :
Discussed
Supply Ability :
100000Pcs/Year
MOQ :
1
Delivery Time :
1 Month
Application :
Air Conditioning, HVAC, Cold Room, Rack System
Payment Terms :
T/T,Western Union
Place of Origin :
China
Cooling type :
Air Cooled/Water Cooled
Brand Name :
Hanbell
Nominal HP(60/50Hz) :
183/152HP
Packaging Details :
Wooden Case
Description
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Product Overview
The RC2-510B semi hermetic screw compressor is designed for large-capacity commercial air conditioning, process cooling, and industrial refrigeration systems. Driven by a twin-shaft rotary displacement mechanism, it provides continuous cooling output and maximum volumetric efficiency under demanding operating conditions.
Key Features
Patented 5:6 Screw Rotor Profile & High-Efficiency Motor
Featuring precision CNC-machined 5:6 asymmetric screw rotors, this semi hermetic screw compressor minimizes internal gas recirculation and mechanical drag. Its integrated 3-phase, 2-pole squirrel-cage induction motor is directly cooled by suction refrigerant gas to maintain optimal energy efficiency across 50Hz and 60Hz power supplies.
Versatile Capacity Control & Multi-Refrigerant Compatibility
To match dynamic cooling loads and minimize power consumption during part-load operation, the compressor includes an internal hydraulic slide valve. It supports 4-stage step capacity regulation (25% - 50% - 75% - 100%) and continuous stepless modulation (25% - 100%). Compatible with R22, R407C, R404A, and R507A, this semi hermetic screw compressor integrates smoothly into diverse cooling plant designs.
  • Double-Walled Cast Iron Housing: Built from FC25 gray cast iron with inner reinforcement ribs to suppress operational noise and prevent casing distortion under high pressure.
  • Flange-On Oil Separator: Cast from high-strength FC500 ductile iron to manage high working pressures while maintaining low pressure drop and high oil separation efficiency.
  • Heavy-Duty Bearing System: Combines 10 radial and axial bearings with an alpha balance piston to absorb axial thrust forces and extend service life.
  • Integrated Safety Protections: Standard PTC thermistor modules continuously monitor motor coil temperature, discharge gas heat, phase loss, and phase sequence errors.
Applications
  • Large Commercial HVAC & Chillers: Ideal for central commercial air conditioning plants, rooftop units, and large water-cooled or air-cooled liquid chiller installations.
  • Industrial Cold Storage Facilities: Well-suited for large low-temperature cold rooms, cold storage logistics hubs, and food preservation distribution centers.
  • Quick Freezing & Food Processing: Delivers high displacement for quick-freezing tunnels, blast freezers, and commercial meat or seafood processing operations.
  • Process Cooling Systems: Provides stable, continuous cooling performance for heavy manufacturing, chemical, and pharmaceutical processing lines.

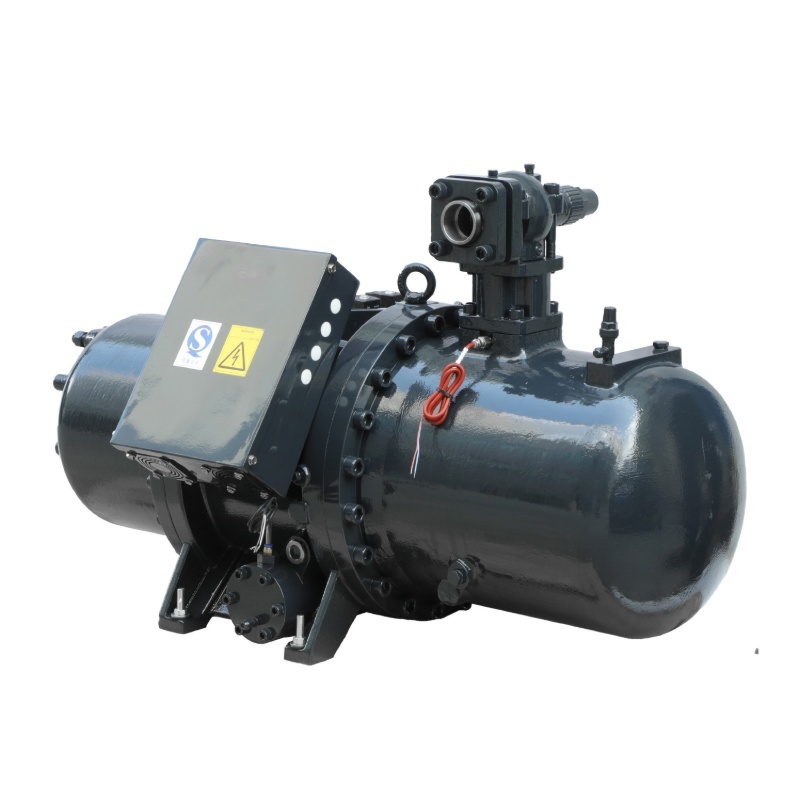

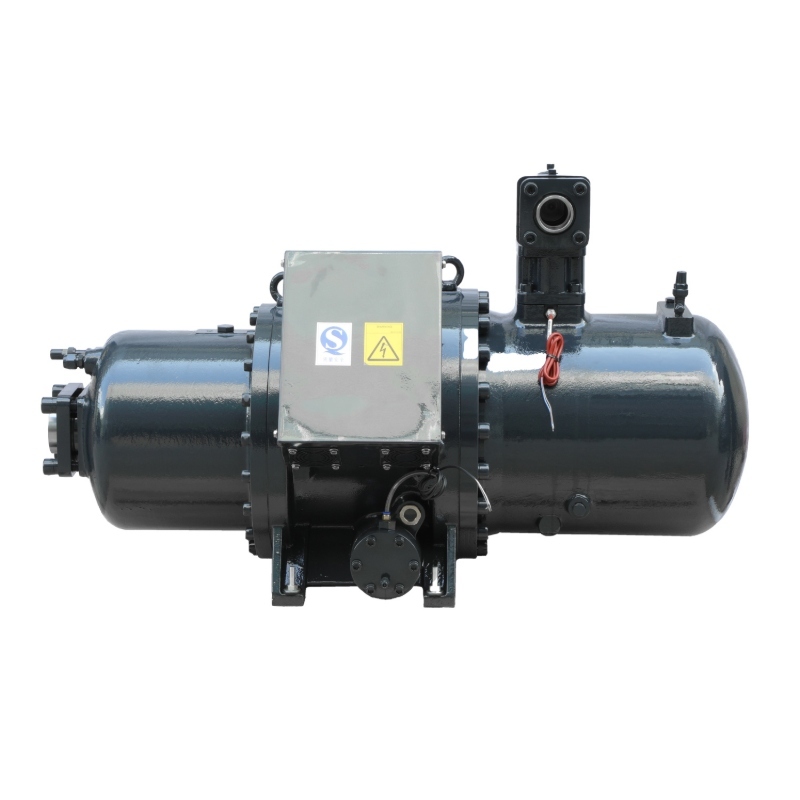

Product Image
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Technical Specifications
Parameter Specification
Model RC2-510B-Z, RC2-510B-W
Cooling Type Air Cooled/Water Cooled
Nominal Power (60/50Hz) 183/152 HP
Displacement (60/50Hz) 611/508 m³/hr
Refrigerant Type R22, R407C, R404A, R507A
Capacity Control (step) 35-50-75-100%
Capacity Control (stepless) 35-100%
Lubricant Charge 20 L
Oil Heater 150/300 W
Weight 780 KG
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Manufacturer Profile
With over 20 years of technical expertise in the refrigeration industry, Coolstart is a modern, large-scale manufacturer delivering high-performance cooling equipment worldwide. Our comprehensive catalog covers scroll compressors, reciprocating compressors, rotary compressors, semi-hermetic compressors, screw compressors, cold storage units, quick-freezing systems, and ice-making machinery. Equipped with complete OEM/ODM customization capabilities, Coolstart serves commercial and industrial buyers across Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and other international markets, earning trust through technical competence, competitive pricing, and long-term B2B partnerships.
Hanbell RC2-510B-Z RC2-510B-W High Capacity Cooling HVAC Screw Compressor
Frequently Asked Questions
Q1: What refrigerants can be used with the RC2-510B compressor?
A1: The RC2-510B model operates with R22, R407C, R404A, and R507A refrigerants, offering broad flexibility across various system configurations.
Q2: What capacity modulation modes are available on this model?
A2: It provides 4-stage step capacity regulation (25% - 50% - 75% - 100%) alongside continuous stepless control from 25% to 100%.
Q3: What standard protections are integrated into the RC2-510B?
A3: The unit comes fitted with PTC thermistor modules that protect against motor coil overheating, excessive discharge gas temperature, phase loss, and phase sequence errors.
Q4: What is the typical lead time for sample and bulk orders?
A4: Stock sample units are ready to ship within 3 business days, while standard mass production orders take 10 to 15 working days.
Q5: What warranty and trade conditions does Coolstart provide?
A5: All compressors include a 1-year standard warranty. Orders are fulfilled under FOB Shenzhen or EXW terms, with payment supported via TT or Western Union in USD.
Request a Fast Quote for RC2-510B
Our technical service team provides customized project proposals and direct factory quotes within 8 hours of receiving your inquiry. Contact Coolstart today to optimize your cooling system performance and receive a competitive proposal.
