Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Specifications
Certification :
CE
Cooling type :
Air Cooled/Water Cooled
Model Number :
RC2-370B-Z, RC2-370B-W
Displacement (60/50Hz) :
440/366 m3/hr
MOQ :
1
Delivery Time :
1 Month
Nominal HP(60/50Hz) :
130/108HP
Payment Terms :
T/T,Western Union
Price :
Discussed
Supply Ability :
100000Pcs/Year
Brand Name :
Hanbell
Refrigerant :
R22, R407C, R404A, R507A
Packaging Details :
Wooden Case
Place of Origin :
China
Application :
Air Conditioning, HVAC, Cold Room, Rack System
Description
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Product Overview

The RC2-370B screw refrigeration compressor is engineered for large-capacity industrial refrigeration and chiller systems demanding high thermal stability and continuous operation. Utilizing patented 5:6 asymmetric screw rotors, it ensures consistent displacement and minimal operational noise under high working pressures.

Economizer Sub-Cooling Integration

This compressor features a dedicated economizer (sub-cooler) connection port to maximize system cooling capacity with minimal energy consumption. The specially engineered gas flow passageway on the slide valve maintains stable intermediate pressure, enabling effective sub-cooling even during part-load conditions.

VFD-Ready Motor Architecture

Built with F-class insulation and cooling guide vanes on the motor casing, the semi-hermetic motor is cooled directly by suction gas. It supports part winding (PWS), star-delta (Y-Δ), and direct-on-line (DOL) starting, with optional Variable Frequency Drive (VFD) compatibility for optimized dynamic operational speed.

Heavy-Duty Bearing System
  • Axial Thrust Management: Oversized radial and axial bearings paired with α balance piston and anti-reverse rotation design absorb heavy mechanical loads and extend service life
  • Flanged Solenoid Valve Control: Enables quick loading and unloading to reach target temperatures via 4-stage step regulation (35%-50%-75%-100%) or continuous stepless modulation (35%-100%)
  • Multi-Refrigerant Adaptability: Operates seamlessly with R22, R407C, R404A, and R507A refrigerant systems
Applications
  • Process Cooling & Sub-Cooling Systems: Ideal for industrial cooling plants requiring economizer sub-cooling performance and flexible motor control
  • Large Cold Storage Facilities: Designed for low-temperature food preservation hubs, distribution centers, and commercial cold rooms
  • Central Air Conditioning & Chillers: Well-suited for large water-cooled and air-cooled liquid chiller plants operating under dynamic load conditions
  • Chemical & Industrial Processing: Delivers stable temperature control for pharmaceutical processing and chemical fluid cooling operations

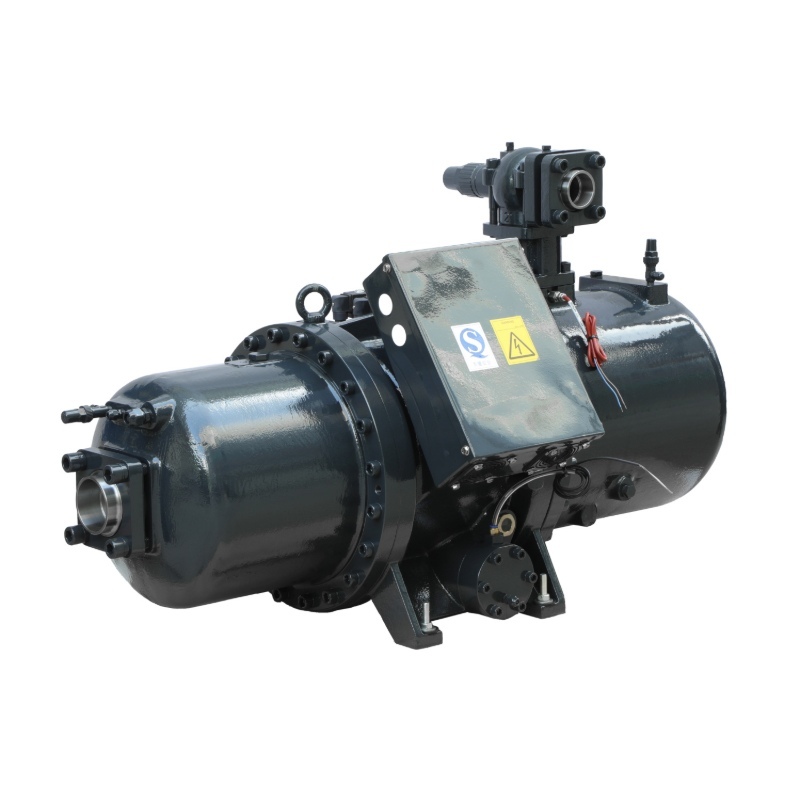

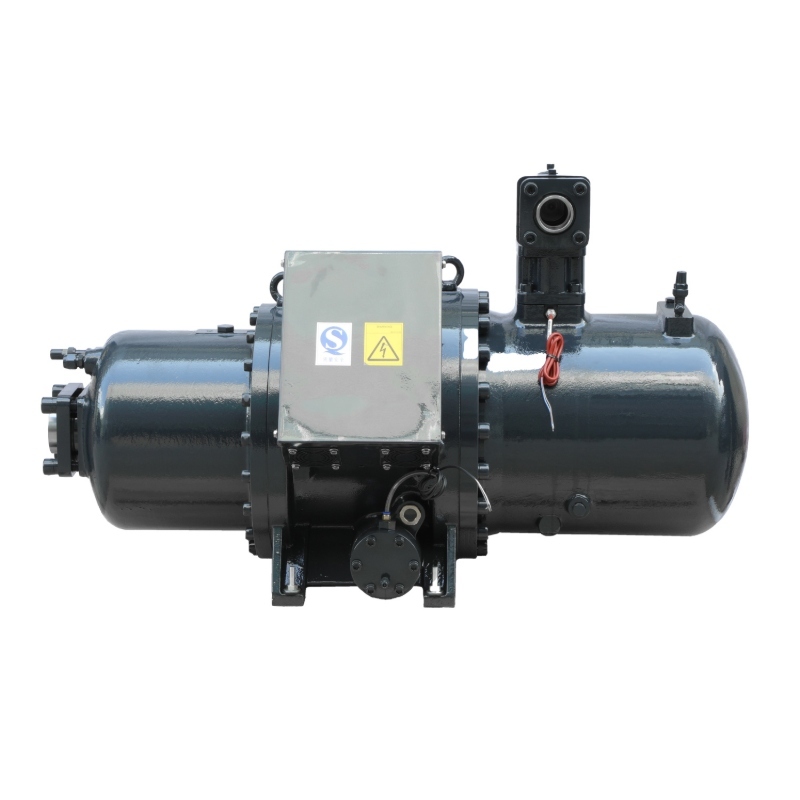

Product Image
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Technical Parameters
Parameter Specification
Model RC2-370B-Z, RC2-370B-W
Cooling Type Air Cooled/Water Cooled
Nominal Power (60/50Hz) 130/108 HP
Displacement (60/50Hz) 440/366 m³/hr
Refrigerant Type R22, R407C, R404A, R507A
Capacity Control (step) 35-50-75-100%
Capacity Control (stepless) 35-100%
Lubricant Charge 16 L
Oil Heater 150/300 W
Weight 640 KG
Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Company Introduction

With over 20 years of technical expertise in the refrigeration industry, Coolstart is a modern, large-scale manufacturer delivering high-performance cooling equipment worldwide. Our comprehensive catalog covers scroll compressors, reciprocating compressors, rotary compressors, semi-hermetic compressors, screw compressors, cold storage units, quick-freezing systems, and ice-making machinery.

Equipped with complete OEM/ODM customization capabilities, Coolstart serves commercial and industrial buyers across Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and other international markets, earning trust through technical competence, competitive pricing, and long-term B2B partnerships.

Hanbell RC2-370B-Z RC2-370B-W Heavy Duty Screw Refrigeration Compressor
Frequently Asked Questions
Does the RC2-370B support Economizer (sub-cooler) operation?
Yes, it features an integrated ECO port and slide valve gas passageway designed to increase refrigeration capacity with minimal additional power, even at partial loads.
Can this compressor be operated with a Variable Frequency Drive (VFD)?
Yes, the RC2-370B offers an optional VFD configuration alongside standard Star-Delta (Y-Δ), Part Winding (PWS), and Direct-On-Line (DOL) starting options.
Which refrigerants can be used with the RC2-370B?
The compressor is compatible with R22, R407C, R404A, and R507A refrigerants.
What is the delivery lead time for sample and volume orders?
In-stock sample units are ready to ship within 3 business days, while standard mass production orders take 10 to 15 working days.
What warranty and commercial terms does Coolstart offer?
All compressors include a 1-year warranty. Orders are fulfilled under FOB Shenzhen or EXW terms, with payment supported via TT or Western Union in USD.
Request a Fast Quote for RC2-370B

Our technical service team provides customized project proposals and factory pricing within 8 hours of receiving your inquiry. Contact Coolstart today to optimize your system configuration and receive a competitive quotation.
