Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Specifications
Certification :
CE
Cooling type :
Air Cooled/Water Cooled
Model Number :
RC2-100B-Z, RC2-100B-W
Nominal HP(60/50Hz) :
38/31HP
MOQ :
1
Delivery Time :
1 Month
Refrigerant :
R22, R407C, R404A, R507A
Payment Terms :
T/T,Western Union
Price :
Discussed
Supply Ability :
100000Pcs/Year
Place of Origin :
China
Application :
Air Conditioning, HVAC, Cold Room, Rack System
Brand Name :
Hanbell
Displacement (60/50Hz) :
118/98 m3/hr
Packaging Details :
Wooden Case
Description
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Product Overview

The RC2-100B screw refrigeration compressor is engineered to deliver reliable cooling performance and high operating efficiency across commercial and industrial systems. Designed with an optimized two-shaft rotary displacement mechanism, it provides stable operation under demanding thermal conditions.

Advanced Features
Advanced 5:6 Rotor Profile & High-Efficiency Motor
Featuring patented 5:6 asymmetric screw rotors manufactured via precision CNC machining, this screw refrigeration compressor minimizes mechanical friction and suction losses. Driven by a 3-phase, 2-pole squirrel-cage induction motor cooled by suction refrigerant gas, the unit ensures maximum operating efficiency across both 50Hz and 60Hz power supplies.
Flexible Capacity Control & Multi-Refrigerant Adaptability
To match changing cooling loads while optimizing power consumption, the screw refrigeration compressor offers dual capacity control options: 3-stage step control (33% - 66% - 100%) or continuous stepless adjustment (33% - 100%). The system is fully compatible with R22, R407C, R404A, and R507A refrigerants, making it highly adaptable for various system designs.
Robust Structural Design & Integrated Oil Separation
  • Double-Walled Rotor Casing: Built from FC25 gray cast iron with inner ribbing to enhance rigidity and suppress operational noise.
  • Direct Flange-On Oil Separator: Constructed from ductile FC500 iron to handle high pressure, ensure low pressure drop, and maintain optimal oil viscosity.
  • Long-Life Bearing Assembly: Utilizes a combination of 10 axial and radial bearings with an axial balance piston to ensure smooth shaft stability and extended service life.
  • Perceptive Protection System: Integrated PTC thermistors and protection modules monitor discharge gas temperature, motor coil heat, phase sequence, and phase loss.
Applications
  • Commercial Cold Storage: Suitable for medium and low-temperature cold rooms, walk-in freezers, and logistics cold storage centers.
  • Industrial Chiller Systems: Designed for liquid chillers and process cooling plants requiring continuous, stable cooling output.
  • Food Processing & Freezing: Ideal for food freezing tunnels, beverage processing lines, and blast freezing equipment.
  • HVAC & Commercial Air Conditioning: Suitable for centralized commercial air conditioning systems requiring precise part-load capacity control.

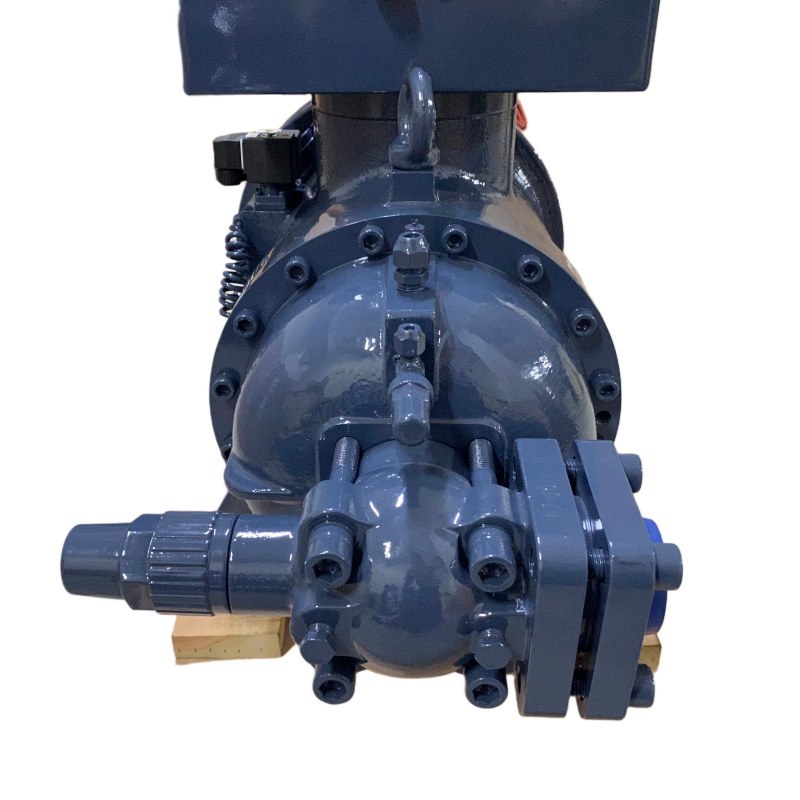

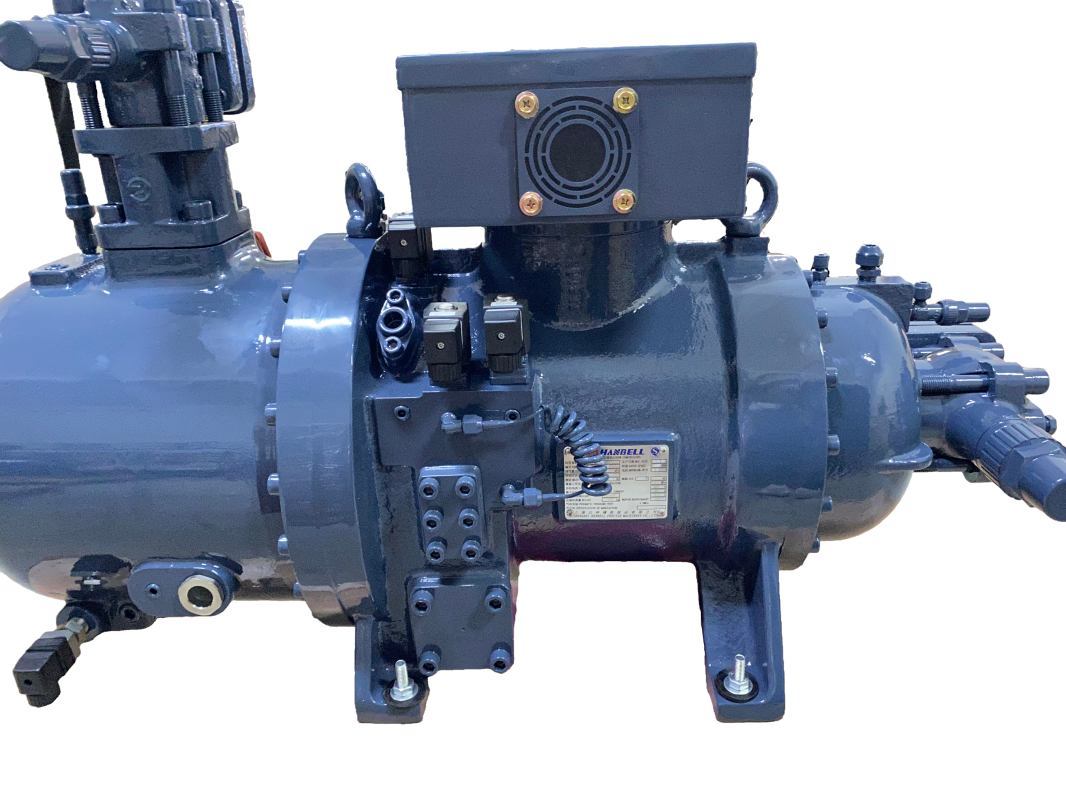

Product Image
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Technical Parameters
Model RC2-100B-Z, RC2-100B-W
Cooling Type Air Cooled/Water Cooled
Nominal Power (60/50Hz) 38/31HP
Displacement (60/50Hz) 118/98 m3/hr
Refrigerant Type R22, R407C, R404A, R507A
Cap. Control (step) 33-66-100%
Cap. Control (stepless) 33-100%
Lubricant Charge 7L
Oil Heater 150/300W
Weight 280KG
Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Company Introduction

With over 20 years of expertise in the refrigeration industry, Coolstart is a modern and large-scale enterprise specializing in high-performance cooling solutions. Our comprehensive product lineup includes scroll compressors, reciprocating compressors, rotary compressors, semi-hermetic compressors, screw compressors, cold storage units, quick-freezing equipment, and ice-making machines.

Supported by complete OEM/ODM customization capabilities, Coolstart serves clients across global markets including Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and beyond. We are committed to supplying worldwide B2B buyers with reliable refrigeration technology, competitive cost efficiency, and long-term partnership support.

Hanbell RC2-100B-Z RC2-100B-W Semi-Hermetic Screw Refrigeration Compressor
Frequently Asked Questions
Q1: Which refrigerants can be used with the RC2-100B compressor?
A1: The RC2-100B model is engineered for multi-refrigerant compatibility and supports R22, R407C, R404A, and R507A operating systems.
Q2: How does the capacity control system work on the RC2-100B?
A2: The compressor features an internal hydraulic slide valve that supports both 3-stage step control (33%-66%-100%) and continuous stepless regulation (33%-100%) to match varying system load demands.
Q3: What electrical protection mechanisms are built into the compressor?
A3: The unit comes equipped with a PTC thermistor protection module that actively monitors motor coil temperatures, discharge gas temperatures, phase sequence, and potential phase loss.
Q4: What is the standard warranty period and delivery time?
A4: All compressors come with a 1-year warranty. Sample orders from stock ship within 3 business days, while standard bulk production orders are completed within 10 to 15 business days.
Q5: Does Coolstart offer custom OEM options for branding and nameplates?
A5: Yes, we support complete OEM/ODM services, including customized logos and multilingual nameplates. Minimum order quantities for mass production can be negotiated based on project requirements.
Request a Fast Quote for RC2-100B

Our technical sales team provides tailored refrigeration solutions and accurate pricing within 8 hours of receiving your project specifications. Contact Coolstart today to optimize your system efficiency and request a competitive B2B quotation.
