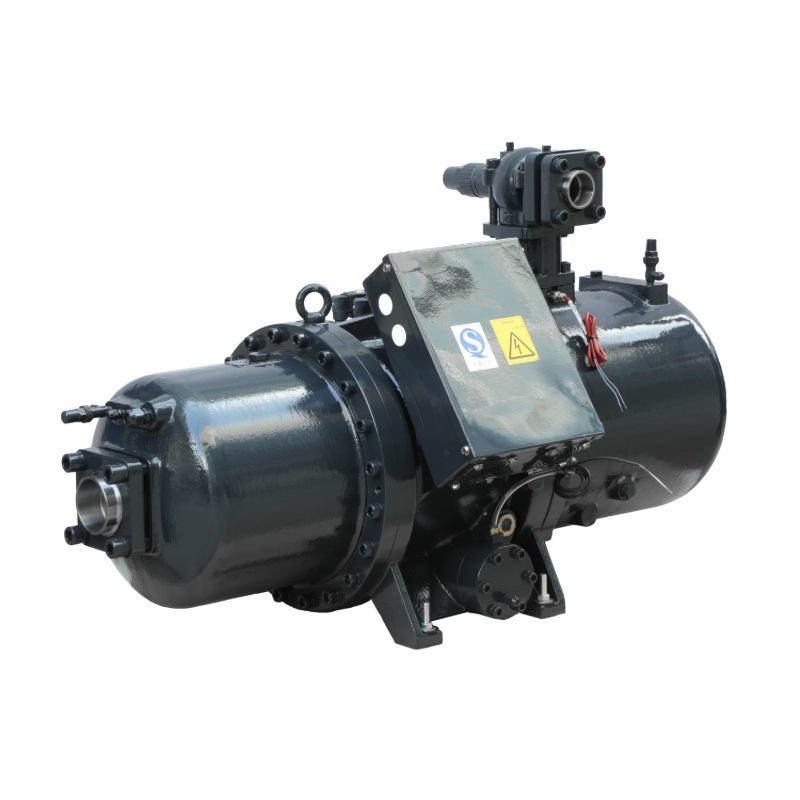

The RC2-300B screw type refrigeration compressor is designed for medium- and large-capacity commercial and industrial cooling applications. Utilizing a twin-shaft rotary displacement mechanism, it provides continuous cooling output and stable operation under varying thermal loads.

Patented 5:6 Screw Rotor Geometry & High-Efficiency Motor
Featuring patented 5:6 asymmetric screw rotors machined with high-precision CNC centers, this screw type refrigeration compressor reduces internal gas bypass and mechanical friction. Driven by an integrated 3-phase, 2-pole squirrel-cage induction motor cooled by suction gas, the unit maintains high power efficiency across both 50Hz and 60Hz system setups.

Dynamic Capacity Regulation & Refrigerant Flexibility
To match changing cooling loads and minimize power consumption during part-load operation, the compressor includes an internal hydraulic slide valve. It offers 4-stage step load regulation (25% - 50% - 75% - 100%) and continuous stepless modulation (25% - 100%). Designed for broad compatibility, this screw type refrigeration compressor operates with R22, R407C, R404A, and R507A refrigerants.

Heavy-Duty Housing & Comprehensive Mechanical Protection

• Double-Walled Cast Iron Housing: Built from FC25 gray cast iron with inner reinforcement ribs to suppress operational noise and eliminate casing expansion under high pressure.
• Flange-On Oil Separator: Cast from high-strength FC500 ductile iron to handle high pressure while ensuring low pressure drop and high oil separation efficiency.
• Extended Bearing Assembly: Combines 10 radial and axial bearings with an alpha balance piston to support high axial loads and ensure long-term mechanical stability.
• Integrated Electronic Safeguards: Standard PTC thermistor modules continuously monitor motor coil heat, discharge gas temperatures, phase loss, and phase sequence errors.

• Commercial Cold Storage: Suitable for medium- and low-temperature cold storage warehouses, logistics centers, and cold chain distribution hubs.
• Industrial Liquid Chillers: Designed for large water-cooled and air-cooled liquid chiller plants requiring flexible part-load capacity control.
• Food Processing & Quick Freezing: Ideal for blast freezing tunnels, meat processing operations, and food preservation facilities.
• HVAC & Commercial Air Conditioning: Suitable for centralized commercial air conditioning systems and industrial process air conditioning units.

With over 20 years of technical expertise in the refrigeration industry, Coolstart is a modern, large-scale manufacturer delivering high-performance cooling equipment worldwide. Our comprehensive catalog covers scroll compressors, reciprocating compressors, rotary compressors, semi-hermetic compressors, screw compressors, cold storage units, quick-freezing systems, and ice-making machinery. Equipped with complete OEM/ODM customization capabilities, Coolstart serves commercial and industrial buyers across Russia, the United States, the United Kingdom, the United Arab Emirates, Saudi Arabia, and other international markets, earning trust through technical competence, competitive pricing, and long-term B2B partnerships.

Our engineering team provides comprehensive technical proposals and direct factory quotes within 8 hours of receiving your inquiry. Contact Coolstart today to optimize your cooling system performance and receive a competitive proposal.
