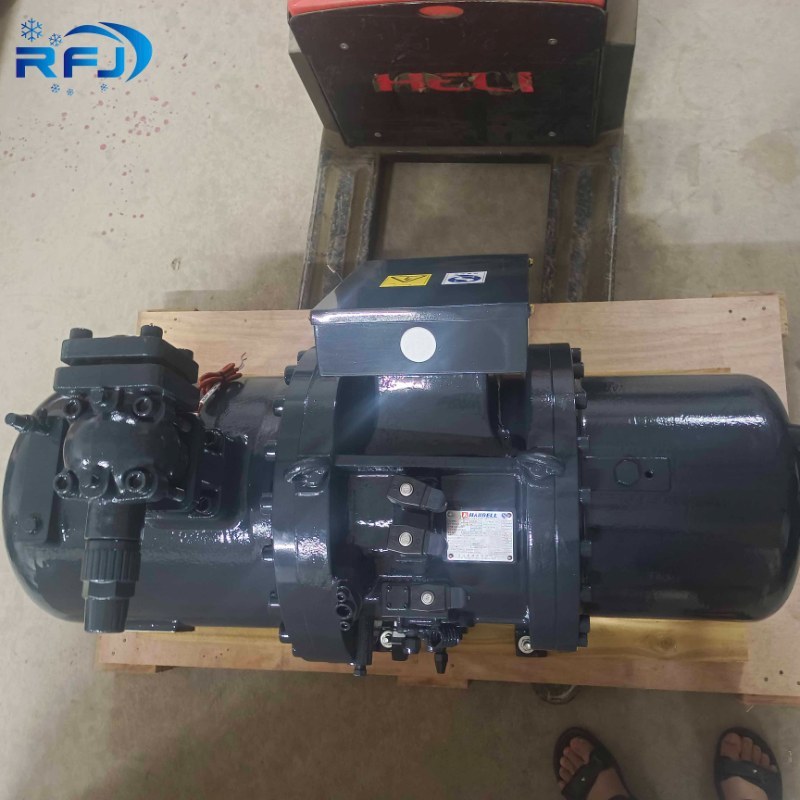

The RC2-230B AC screw compressor delivers high-efficiency cooling and air conditioning performance for medium- to large-scale commercial and industrial applications. Engineered with a robust twin-screw rotary displacement mechanism, it ensures continuous operation and precise load management under demanding conditions.

Featuring patented 5:6 asymmetric screw rotors manufactured using precision CNC grinding and milling technologies, this AC screw compressor reduces internal gas bypass and mechanical resistance. Its integrated 3-phase, 2-pole squirrel-cage induction motor is cooled by suction refrigerant gas, enabling optimal energy performance across both 50Hz and 60Hz electrical systems.

To maintain steady operating efficiency during fluctuating cooling demands, the compressor utilizes an internal slide valve supporting 4-stage step capacity regulation (35% - 50% - 75% - 100%) and continuous stepless modulation (25% - 100%). Compatible with R22, R407C, R404A, and R507A refrigerants, this AC screw compressor easily adapts to diverse HVAC and chilling plant designs.

• Double-Walled Rotor Casing: Constructed from FC25 gray cast iron with high-strength internal ribs to minimize operational noise and prevent casing expansion
• Direct Flange-On Oil Separator: Cast from FC500 ductile iron to handle high pressure, ensure low pressure drop, and maintain proper oil viscosity
• High-Durability Bearing Assembly: Combines 10 axial and radial bearings with an alpha balance piston to support high axial forces and prolong service life
• Comprehensive Protection System: Standard PTC thermistor modules continuously monitor discharge gas heat, motor coil temperatures, phase sequence, and phase loss

• Centralized AC & Commercial HVAC: Ideal for commercial air conditioning systems, rooftop handling units, and large building HVAC installations
• Water Cooled Chillers: Designed for liquid chiller plants requiring flexible part-load capacity adjustments and high seasonal efficiency
• Industrial Process Air Conditioning: Provides stable temperature and humidity control for precision manufacturing environments and pharmaceutical facilities
• Commercial Cold Storage: Suitable for medium- and low-temperature cold storage distribution hubs and logistics centers
