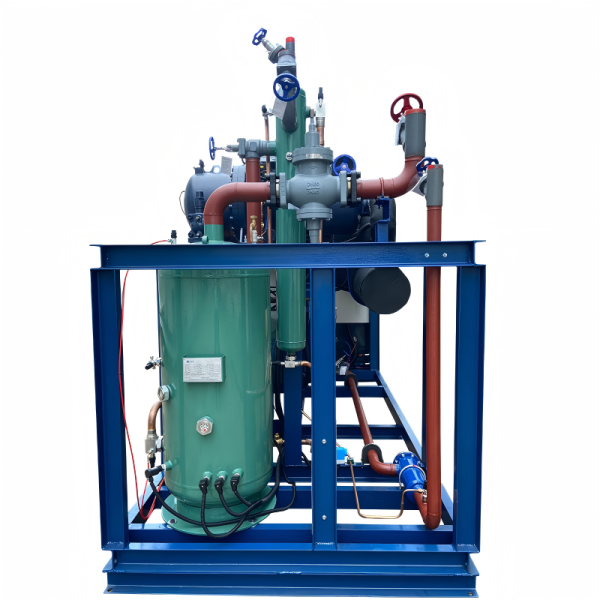

Precision Parallel Refrigeration Rack Systems High Temperature Refrigeration System
Precision Parallel Refrigeration Rack Systems High Temperature Refrigeration System
Specifications
Place of Origin :
China
Product Usage :
Industrial
Brand Name :
DM
Delivery Time :
30 work day
MOQ :
1
Packaging Details :
Customized according to customers
Product Package :
Wodden Box
Product Size :
Standard
Payment Terms :
T/T,L/C,D/A
Product Color :
Green
Model Number :
DM-JZ-LGJ
Product Weight :
1kg
Product Model :
Screw
Product Strength :
Strong
Certification :
CE
Product Precision :
High
Description
Precision Parallel Refrigeration Rack Systems High Temperature Refrigeration System
Product Overview
High-temperature Type

The high-temperature refrigeration system operates at an evaporating temperature range of 12.5°C to -10°C. It features a compressor motor with nominal power rating from 60HP to 600HP, making it ideal for large-scale applications including food processing plants, beverage production, and fresh product cold storage.

Precision Parallel Refrigeration Rack Systems High Temperature Refrigeration System Precision Parallel Refrigeration Rack Systems High Temperature Refrigeration System
Intermediate-temperature Type

The intermediate-temperature refrigeration system maintains an evaporating temperature range of -15°C to -30°C. It utilizes a compressor motor with nominal power rating from 50HP to 540HP, suitable for medical, chemical processing, and frozen food storage applications.

Low-temperature Type

The low-temperature refrigeration system operates at an evaporating temperature range of -35°C to -45°C. It features a compressor motor with nominal power rating from 50HP to 540HP, designed for preserving deep frozen products including ice cream, frozen fruits, vegetables, and seafood.

Product Features
  • Product Name: Screw Parallel Unit
  • Product Efficiency: Efficient
  • Product Type: Parallel Unit
  • Product Weight: 2000kg
  • Product Usage: Industrial
  • Product Compatibility: Various Machines

The Screw Parallel Unit is a high-quality industrial product designed for maximum efficiency and compatibility with various machines. This parallel unit is ideal for walk-in freezer applications and features a twisting parallel setup that ensures optimal performance.

Technical Parameters
Model Evaporative Temperature Refrigerant Power Supply Compressor Model Number of Compressor Cooling Capacity (KW) Power (KW) Suction Pipe Interface Exhaust Pipe Interface Outlet Interface Inlet Pipe Interface Length Width Height Compressor Certification
DM-1D-20-RZL 10℃~-50℃ R404A/R507A 380V/50Hz HSN5343-20 1 55 23.8 54 42 28 35 2000 1050 1500 renowned brand, Hanbel etc. CE
DM-1D-25-RZL 10℃~-50℃ R404A/R507A 380V/50Hz HSN5353-25 1 64.2 27.2 54 42 28 35 2000 1050 1500 renowned brand, Hanbel etc. CE
DM-1D-30-RZL 10℃~-50℃ R404A/R507A 380V/50Hz HSN5363-30 1 73.3 30.8 54 42 28 35 2000 1050 1500 renowned brand, Hanbel etc. CE
DM-1D-40-RZL 10℃~-50℃ R404A/R507A 380V/50Hz HSN6451-40 1 88.5 34.6 54 42 28 35 2200 1050 1500 renowned brand, Hanbel etc. CE
DM-1D-50-RZL 10℃~-50℃ R404A/R507A 380V/50Hz HSN6461-50 1 101.5 42.5 54 42 28 35 2200 1050 1500 renowned brand, Hanbel etc. CE
DM-1D-60-RZL 10℃~-50℃ R404A/R507A 380V/50Hz HSN7451-60 1 125.9 50 76 54 45 35 2400 1050 1700 renowned brand, Hanbel etc. CE
Applications
Precision Parallel Refrigeration Rack Systems High Temperature Refrigeration System
High-temperature Type

This refrigeration system operates in high-temperature environments with evaporating temperatures from 12.5°C to -10°C. With compressor motor power ranging from 60HP to 600HP, it's suitable for large-scale industrial applications.

Intermediate-temperature Type

Ideal for intermediate-temperature environments with evaporating temperatures from -15°C to -30°C. The compressor motor power ranges from 50HP to 540HP, making it efficient for commercial applications.

Low-temperature Type

Designed for low-temperature environments with evaporating temperatures from -35°C to -45°C. With compressor motor power from 50HP to 540HP, it's suitable for ultra-low temperature applications in food and medical industries.

Packing and Shipping
Product Packaging
  • Quantity: 1 unit per package
  • Dimensions: 4 inches x 4 inches x 1 inch
  • Weight: 0.5 lbs
Shipping Information
  • Shipping method: Standard Ground
  • Delivery time: 25 business days
  • Shipping cost: $5.99
Precision Parallel Refrigeration Rack Systems High Temperature Refrigeration System
Frequently Asked Questions
Where is this product made?

This product is made in China.

What is the screw parallel unit used for?

The screw parallel unit is used for precision positioning and adjustment in various industrial applications.

What is the maximum load capacity of this product?

The maximum load capacity of this product depends on the specific model and configuration. Please refer to the product specifications for more details.
