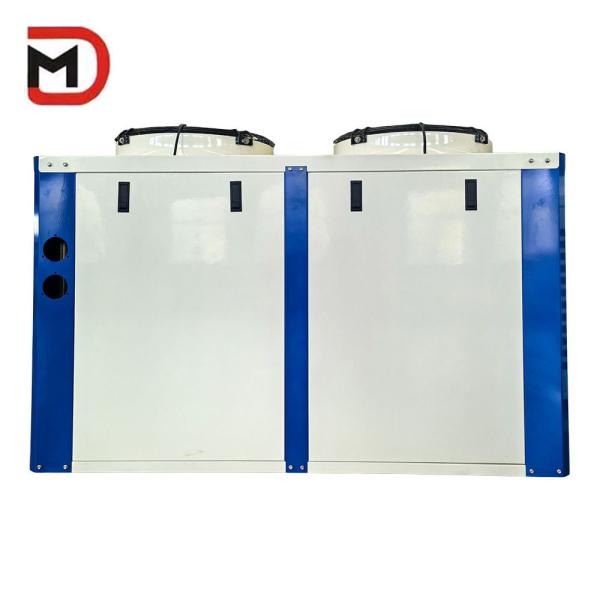

Customizable Cooling Solution Air-cooled Condenser Commercial Refrigeration Condensing Unit for Cold Room
Customizable Cooling Solution Air-cooled Condenser Commercial Refrigeration Condensing Unit for Cold Room
Specifications
Delivery Time :
30 Work Days
Condensing Temperature :
0~10c And -15~-25c
Model Number :
DM-UNIT-U
Condenser :
Air-cooled Condenser
MOQ :
1
Payment Terms :
T/T
Origin :
Zhejiang, China
Packaging Details :
Wooden Case
Refrigerant :
R507 R404A
Type :
Outdoor
Price :
$2000~$100000
Loading Port :
Ningbo/Shanghai
Function :
Refrigeration
Place of Origin :
China
Certification :
CE;ISO
Supply Ability :
1000000pcs/year
Brand Name :
DM
Nominal Capacity :
3 HP To 40 HP
Description
Customizable Cooling Solution Air-cooled Condenser Commercial Refrigeration Condensing Unit for Cold Room
Product Overview

U-Type Air-Cooled Condensing Unit in Refrigeration Systems

The U-type air-cooled condensing unit is a crucial piece of equipment frequently employed in commercial and industrial refrigeration setups. It finds extensive applications in various settings including supermarkets, cold storage facilities, food processing plants, as well as chemical and medical storage facilities. Its primary function is to facilitate the dissipation of heat extracted by the refrigerant from the evaporator, ensuring the smooth and efficient functioning of the refrigeration system.

Customizable Cooling Solution Air-cooled Condenser Commercial Refrigeration Condensing Unit for Cold Room Customizable Cooling Solution Air-cooled Condenser Commercial Refrigeration Condensing Unit for Cold Room Customizable Cooling Solution Air-cooled Condenser Commercial Refrigeration Condensing Unit for Cold Room
Key Features
  • Compact Design: U-shaped air-cooled condensing units feature a compact design with a small footprint that facilitates easy installation and maintenance. The unique U-shaped structure enables optimal space utilization while ensuring efficient heat dissipation.
  • High Efficiency and Energy Saving: The unit incorporates cutting-edge heat exchange technology to enhance cooling effectiveness significantly. With an efficient air-cooled condenser and optimized air flow design, it boosts heat exchange capability while reducing energy consumption.
  • Strong Durability: The housing is crafted from corrosion-resistant materials, providing effective protection in challenging environments and extending equipment lifespan. It exhibits superior adaptability in humid or dusty settings.
Technical Specifications
Model Heat Exchange Area (㎡) Heat Exchange (Kw) Fan Motor Power (W) Import/Export (mm) Dimensions L×W×H (mm)
FNU-323210.6180φ19/φ12720×620×700
FNU-404013.2250φ19/φ12740×640×800
FNU-505016.6250φ19/φ12820×770×800
FNU-50 (2 fan)5016.62×129φ19/φ121060×650×800
FNU-606019.1414φ22/φ16920×840×800
FNU-60 (2 fan)6019.12×129φ22/φ161160×720×800
FNU-707021.82×180φ22/φ161160×730×900
FNU-808026.42×250φ22/φ161320×850×900
FNU-10010033.12×414φ25/φ191420×880×1000
FNU-12012039.62×414φ25/φ191420×880×1200
FNU-13013042.92×414φ25/φ191420×880×1300
FNU-15015049.52×600φ28/φ221550×880×1400
FNU-16016052.82×600φ28/φ221600×920×1400
Applications
  • Cold Storage Refrigeration Systems: Provides stable refrigeration effect for cold storage applications, maintaining constant temperatures for storing food, medicine, and other perishable items.
  • Supermarket Cold Chain Systems: Plays a crucial role in maintaining stable cold environments for supermarkets and retailers, ensuring food items remain in optimal condition for customers.
  • Industrial Cooling: Effective solution for reducing temperatures of process equipment in industrial settings, helping ensure stable production processes across various applications.
Customization Options
Brand Name: DM
Model Number: DM-UNIT-U
Place of Origin: China
Certification: CE; ISO
Minimum Order Quantity: 1
Price Range: $2000~$100000
Packaging: Wooden Case
Delivery Time: 30 Work Days
Payment Terms: T/T
Supply Ability: 1,000,000 pcs/year
Configuration: Portable
Type: Outdoor
Loading Port: Ningbo/Shanghai
Function: Refrigeration
Origin: Zhejiang, China
