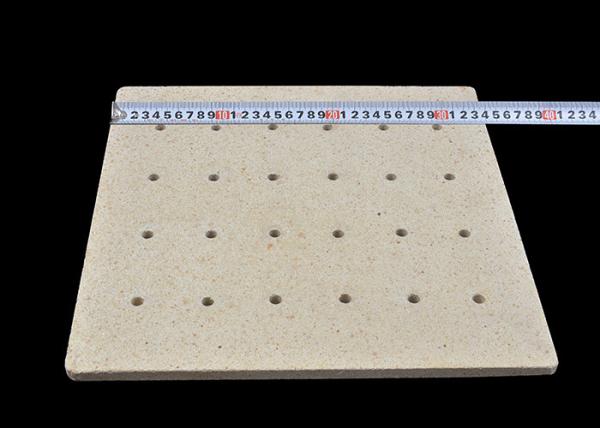

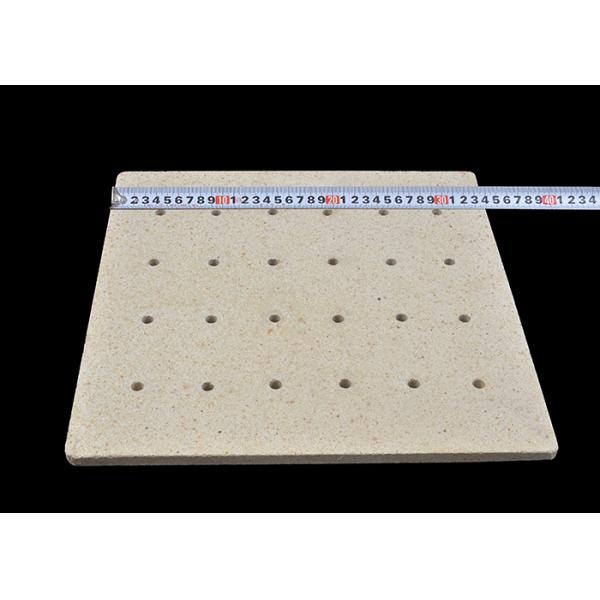

Refractory Cordierite Kiln Shelves Batts With Hole Energy Saving 340*340*15mm
Refractory Cordierite Kiln Shelves Batts With Hole Energy Saving 340*340*15mm
Refractory Cordierite Kiln Shelves Batts With Hole Energy Saving 340*340*15mm
Refractory Cordierite Kiln Shelves Batts With Hole Energy Saving 340*340*15mm
Specifications
Brand Name :
KAMTAI
Model Number :
KTCM16
Certification :
SGS
Place of Origin :
CHINA
MOQ :
300 pcs
Price :
7-10 $ per pc
Payment Terms :
L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
5000sets/MONTH
Delivery Time :
35 days after payment
Packaging Details :
Plywood box and Pallet
Shape :
Square
Length :
340mm
Wdith :
340mm
Feature :
Good thermal Shock Resistance
Max Using temperature :
1280 ℃
Size :
340*340*15mm
Color :
Yellow
Description

Advanced Ceramics of Refractory Cordierite Batts 340*340*15mm

1. Introduction

Cordierite

kiln furniture is manufactured using superior quality body formulations, well regulated production and quality control procedures, and an exceptionally long and tightly controlled firing cycle. These procedures result in a finished product composed of 50% Cordierite and 35% Mullite, with lesser amounts of corundum and other combined mineralogical forms. Glassy phase and uncombined minerals are found in very minor or trace amounts. This combination of high Cordierite and high Mullite yields excellent mechanical properties and remarkably high resistance to thermal shock and warping. Foundry Service’s Cordierite is compatible with all makes and models of hobby and Industrial kilns. We offer over 200 stock sizes in thicknesses of 1/4" to 1-1/2" and in square, rectangular, round, half round, hexagon, and octagon shapes. Our 5/8" thick shelves are recommended up to cone 5, while our 1" thick shelves are used in the cone 5 to 10 range, often substituting for more costly silicon carbide or high alumina shelves at these temperatures. Other Cordierite shapes are also available including posts, racks, tubes, and custom molded parts.

2. Features
Excellent energy savings
Lighter weight and higher load capacity
Excellent distortion resistance at high temperature
Suitable for faster firings with better bearing capacity for hot and cold extremes

3. Specification

Item and Descriptions
Specifications Offered
Al2O3 (%)
40~48
SiO2 (%)
45~48
MgO (%)
5~8
MOR(MPa)
20℃
14
1250℃
12
Bulk Density(g/cm3)
2.0
Open Porosity(%)
28
Phase composition(%)
Mullite
55
Cordierite
30
Max. Service temperature ℃
1280
