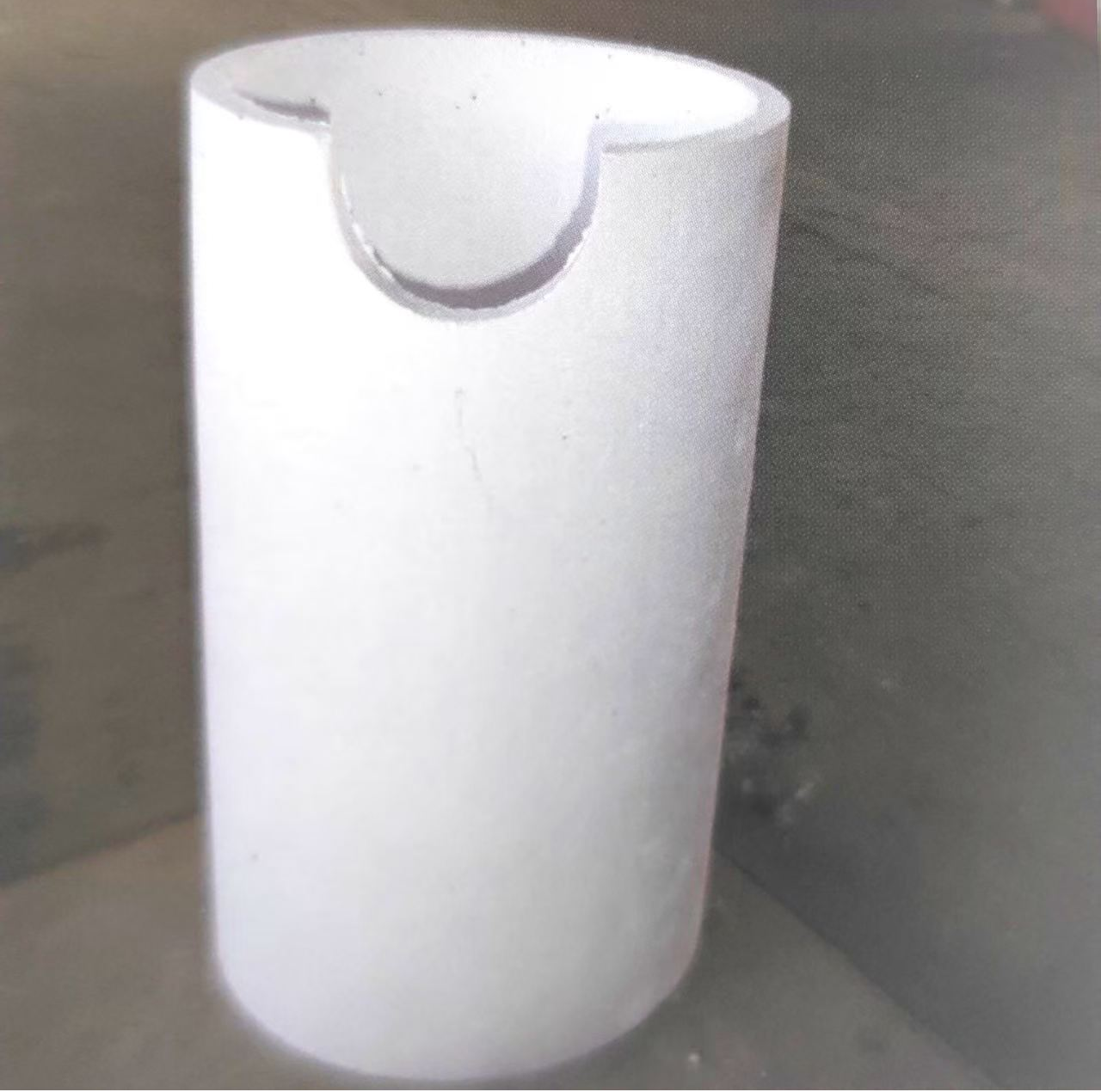

Sillimanite Vibration Cast Crucible
Sillimanite Vibration Cast Crucible
Specifications
Delivery Time :
20-30 Days
Max Service Temperature :
1700℃
Brand Name :
YUDA
Model Number :
SL70C
Payment Terms :
L/C,T/T
High temperature resistance :
Good high temperature resistance
keyword :
refractories materials
Supply Ability :
2000 tons/month
customized :
yes
Packaging Details :
Tons bag packaging,size 1100×900×700 mm and weighs about 1 tons /bag
feature :
Maximum capacity up to 3 tons；Complex shapes can be fabricated, such as built-in pouring siphons.
Place of Origin :
Beijing,China
MOQ :
1 Ton
Description

Sillimanite Vibration Cast Crucible

Summary:

Vibration cast sillimanite crucibles are prepared with high-purity sillimanite as the main aggregate via high-temperature calcination. The crucible body boasts dense and uniform microstructure, low porosity, low thermal expansion coefficient and excellent thermal shock resistance, featuring favorable high-temperature performance and resistance to erosion by molten non-ferrous metals, making it suitable for smelting small and medium-sized alloys and precision casting applications.


Product features:

1.Maximum capacity up to 3 tons

2.Complex shapes can be fabricated, such as built-in pouring siphons.


Range of application:

It is suitable for smelting small and medium-sized non-ferrous alloys. Vibration casting can be used to make crucibles if the required sizes or shapes are uneconomical or impractical to produce by isostatic pressing.


Technical data:

Brand/Specification Sillimanite Vibration Cast Crucible
SL70C
Al2O3 (Wt.%) 70.6
SiO2 (Wt.%) 27.1
Fe2O3 (Wt.%) 0.7
CaO+MgO (Wt.%) 0.2
K2O+Na2O (Wt.%) 0.2
Bulk Density(g/cm3) 2.45

Air Permeability%

 19.5
Thermal Expansion Coefficient(M/K ) 4.5
Thermal Conductivity(M/m/K) 1.6
Max. Service Temperature(℃) 1700


Packaging and Storage:

Wooden pallets+thermoplastic film packaging,size 1100×800×700 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.


Construction method:

Dry masonry.
