Alumina Vibration Casting Crucible
Alumina Vibration Casting Crucible
Specifications
Model Number :
AL98C/AL97C/AL90C
Payment Terms :
L/C,T/T
High temperature resistance :
Good high temperature resistance
keyword :
refractories materials
Delivery Time :
20-30 Days
Max Service Temperature :
AL98C:1800℃/AL97C:1800℃/AL90C:1750℃
Brand Name :
YUDA
Supply Ability :
2000 tons/month
customized :
yes
Packaging Details :
Tons bag packaging,size 1100×900×700 mm and weighs about 1 tons /bag
feature :
Maximum capacity up to 3 tons;Complex shapes can be fabricated, such as built-in pouring siphons.
Place of Origin :
Beijing,China
MOQ :
1 Ton
Description

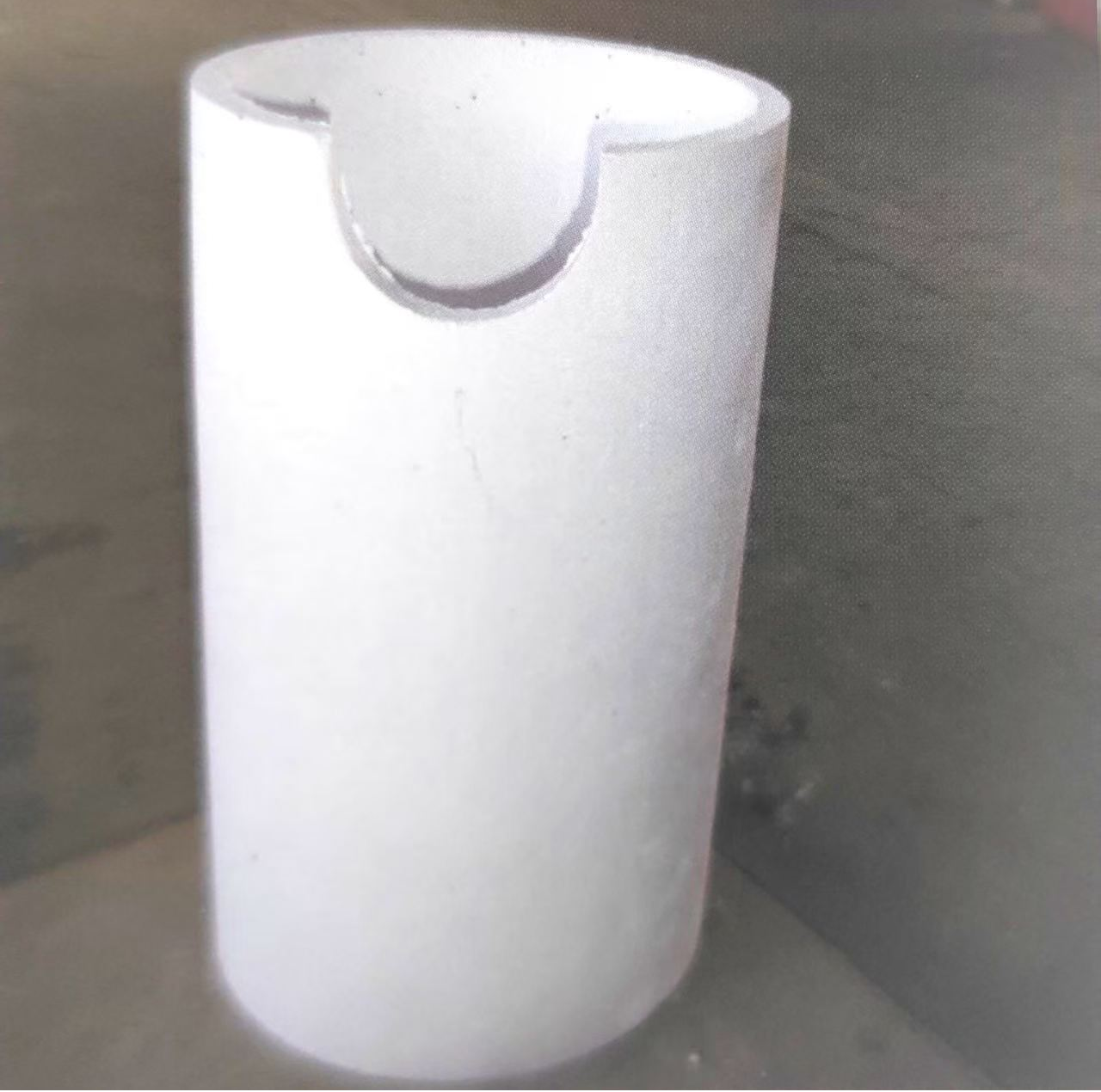

Alumina Vibration Casting Crucible

Summary:

Fabricated with high-purity alumina aggregate and fired at high temperature, vibration cast alumina crucibles feature dense, uniform bodies with high compactness and low porosity, and possess outstanding high temperature resistance, resistance to molten metal erosion and thermal shock resistance.


Product features:

1.Maximum capacity up to 3 tons

2.Complex shapes can be fabricated, such as built-in pouring siphons.


Range of application:

Suitable for smelting and precision casting of non-ferrous alloys. Vibration casting is adopted for crucibles when isostatic pressing proves uneconomical or impractical for required sizes and shapes.


Technical data:

Brand/Specification Alumina Vibration Casting Crucible
AL98C AL97C AL90C
Al2O3 (Wt.%) 96.7 96.6 90.7
SiO2 (Wt.%) 0.02 2.5 8.7
Fe2O3 (Wt.%) 0.04 <0.1 <0.05
CaO+MgO (Wt.%) 2.07 0.1 0.1
K2O+Na2O (Wt.%) 0.2 0.2 0.2
Bulk Density(g/cm3) 3.23 3.1 2.91
Air Permeability(%) 16 19.6 18
Thermal Expansion Coefficient(M/K) / 8 7.7
Thermal Conductivity(M/m/K) / 4.06 4
Max. Service Temperature(℃) 1800 1800 1750


Packaging and Storage:

Wooden pallets+thermoplastic film packaging,size 1100×800×700 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.


Construction method:

Dry masonry.


YuDa’s Expertise
Beijing Yuda's main business includes refractory materials, insulation materials, wear-resistant materials, metal materials, and provides refractory material diagnosis, design, research and development, manufacturing, construction, and maintenance services. For many years, we have been committed to providing our customers with the highest quality products, the most comprehensive services, and the most accurate solutions, saving them time, effort, and money, and ensuring the stable operation of high-temperature kilns. At the same time, we can also provide engineering general contracting services such as refractory material selection, design, installation, and maintenance, optimize refractory material configuration, improve the synergy between refractory materials and processes, increase kiln operation rate, and provide you with comprehensive nanny style services.
