Specifications
Brand Name :
LUMING
Certification :
ISO9001, Patents,Work safety standardization certificate
Place of Origin :
China
MOQ :
5 metric tons
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
Annual Production Exceeding 120,000 Metric Tons of All Types of Refractory Materials Including Castables, Preforms, and Bric
Delivery Time :
Custom products 5-45 days
Packaging Details :
Standard Export Wooden Pallet
Al₂O₃ Content (%) ≥ :
45
Fe₂O₃ Content (%) ≤ :
1.5
Service Temperature (°C) :
1000
Bulk Density (kg/m³) :
200-220
Thermal Conductivity (W/m·K) :
0.12 (at 800°C)
Compression Resistance (%) :
30
Description

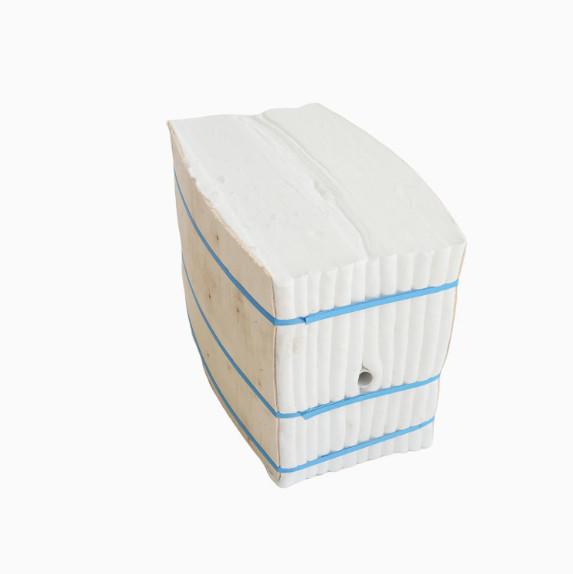

Ceramic Fiber Module

Product Introduction:
Ceramic Fiber Modules are pre-assembled refractory units composed of high-purity ceramic fibers, designed for quick and efficient installation in high-temperature industrial applications. These modules offer exceptional thermal insulation, energy efficiency, and resistance to thermal shock, making them ideal for lining furnaces, kilns, and other thermal processing equipment.

Product Parameters:

Item Standard Grade High-Temperature Grade Premium Grade
Al₂O₃ Content (%) ≥ 45 60 72
Fe₂O₃ Content (%) ≤ 1.5 1.2 1.0
Service Temperature (°C) 1000 1260 1400
Bulk Density (kg/m³) 200-220 220-240 240-260
Thermal Conductivity (W/m·K) 0.12 (at 800°C) 0.15 (at 1000°C) 0.18 (at 1200°C)
Compression Resistance (%) 30 25 20

Standard Sizes:

Module Dimensions: 300×300×300mm, 300×600×300mm (custom sizes available)

Anchor Types: Quick-installation studs, V-anchors, or custom designs

Folding Pattern: Accordion, layered, or as per customer specifications

Product Advantages:

Rapid Installation: Pre-folded modules reduce installation time by 50% compared to traditional refractory linings.

Energy Saving: Low thermal conductivity (≤0.15 W/m·K) minimizes heat loss, improving furnace efficiency.

Thermal Shock Resistance: Withstands temperature fluctuations up to 1400°C without cracking.

Long Service Life: Resistant to chemical corrosion from alkalis, acids, and molten metals.

Lightweight Design: 70% lighter than brick linings, reducing structural load.

Applications:

Metallurgy: Blast furnaces, annealing furnaces, ladle covers

Petrochemical: Cracking furnaces, reformers, pyrolysis units

Ceramics & Glass: Kiln car tops, crown insulation

Power Generation: Boiler walls, duct insulation

General Industry: Heat treatment furnaces, incinerators

Packaging & Storage:

Packaging: Waterproof plastic-wrapped pallets (20 modules/pallet) with corner protection

Storage: Keep in dry conditions (<60% humidity) on flat surfaces

Why Choose Us?

Turnkey Solutions: From design to installation support with CAD drawings and thermal calculations

Custom Engineering:

Material selection based on operating temperature (up to 1600°C)

Structural analysis for mechanical stress requirements

Quality Assurance:

ISO 9001 certified production

Third-party lab test reports available

For project-specific requirements or technical consultation, contact our engineering team today!

Note: All specifications subject to technical improvements. Consult latest datasheet before ordering.
