Specifications
MOQ :
1
Price :
To be negotiated
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Delivery Time :
7-14 working days
Product Name :
Condenser
Material :
aluminum, copper
Sizes Available :
Standard sizes provided; full - size customization supported as per requirements
Packaging :
Standard packaging for transportation; customized packaging available on request
Standards / Certification :
ISO 9001, ISO 14001; CE, UL, PSE, SAA; ASHRAE, EN; RoHS, REACH compliant
Application :
Suitable for HVAC, air conditioning, refrigeration systems; also for industrial chillers, freeze dryers, cold storage, ice machines, automotive/marine AC, PV cooling, medical refrigeration; compatible with common refrigerants (customizable)
Transportation Method :
Ocean freight (for bulk/export), air freight (for urgent orders), land transportation (domestic/nearby regions); customizable as per order demand
Description

Commercial & Residential Evaporator for Air Conditioner Hydrophilic Aluminum Fin Condenser with Multi-System

Product Description

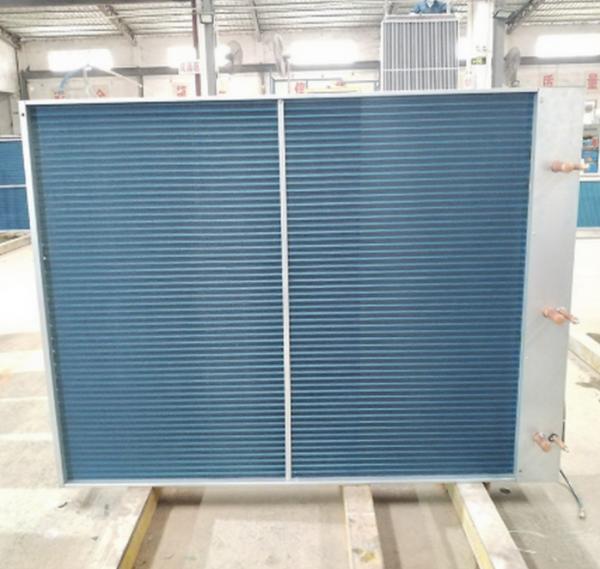

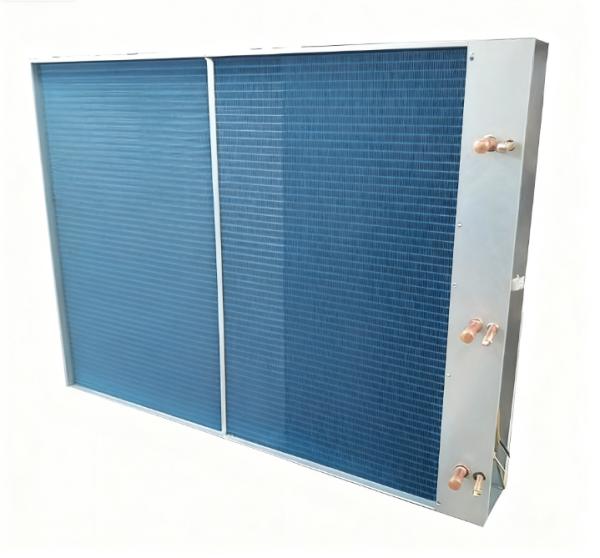

This commercial and residential evaporator coil is designed with hydrophilic aluminum fins and a durable copper tube system, providing outstanding heat exchange performance for air conditioning applications. The hydrophilic coating enhances water drainage, prevents frost buildup, and improves overall cooling efficiency, making it ideal for both household and commercial HVAC systems.

Built with a multi-system compatible structure, the evaporator integrates seamlessly into various split air conditioners, ducted systems, fan coil units, and heat pumps. Its optimized fin spacing and copper tube arrangement ensure excellent thermal conductivity and energy efficiency, reducing overall system energy consumption.

With a robust anti-corrosion finish, this evaporator maintains long-term durability even under humid and high-stress environments. Its versatile design allows for customized dimensions and configurations, supporting different installation needs for diverse HVAC projects.

Product Advantages

  • Hydrophilic Aluminum Fins – Enhance water film spread, reduce surface tension, improve drainage, and minimize frost accumulation.

  • High Efficiency Cooling – Optimized copper tubing and fin geometry maximize heat transfer and energy savings.

  • Multi-System Compatibility – Suitable for commercial central air conditioning, residential split units, VRF/VRV systems, and fan coils.

  • Corrosion Resistant – Protective hydrophilic coating resists moisture, dust, and oxidation, extending service life.

  • Customizable Design – Options available for fin pitch, coil size, tubing diameter, and circuit design to meet specific HVAC system needs.

  • Quiet Operation – Designed to support low-noise environments, improving comfort for both residential and commercial spaces.

Installation Instructions

  1. Preparation – Ensure all refrigerant lines are clean, dry, and free of contaminants before installation.

  2. Positioning – Mount the evaporator coil in the designated housing, ensuring correct airflow direction and secure placement.

  3. Connection – Connect copper tubes to the refrigerant line (brazing recommended). Ensure proper sealing to avoid refrigerant leakage.

  4. System Charging – Charge with the specified refrigerant (R410A, R32, R22, or other compatible refrigerants).

  5. Testing – Perform a pressure test and vacuum drying before operation to confirm system integrity.

  6. Maintenance – Periodically clean fins to maintain airflow. The hydrophilic coating reduces dust adhesion and eases cleaning.

Our Services

  • OEM/ODM Customization – Flexible options for coil size, tube thickness, fin pitch, and coating.

  • Technical Support – Engineering team provides installation guidance and system integration advice.

  • Strict Quality Control – 100% tested for pressure resistance, refrigerant leakage, and performance.

  • Global Shipping – Export-standard packaging with anti-corrosion protection.

  • After-Sales Warranty – One-year warranty with technical service support.

Product Attributes Table

Attribute Details
Product Name Commercial & Residential Air Conditioner Evaporator with Hydrophilic Aluminum Fin
Material Hydrophilic Aluminum Fins + Copper Tubes
Design Type Multi-System Compatible
Application Residential Split Units, Commercial Central AC, VRF/VRV, Fan Coil Units
Refrigerant Compatibility R410A, R32, R22, R404A (customizable)
Fin Coating Hydrophilic Anti-Corrosion Coating
Heat Transfer Performance High Efficiency, Anti-Frost, Low Energy Consumption
Customization Options Fin Pitch, Coil Size, Tube Diameter, Circuit Design
Corrosion Resistance Excellent (Coated Against Moisture, Dust, and Oxidation)
Noise Level Low-Noise Operation Support
Installation Method Brazing / Standard Connection
MOQ 10 Units (Custom Orders Available)
Warranty 1 Year
Packaging Export-Standard Packaging / Custom Branding Available
Certification CE / ISO / RoHS

Hydrophilic Aluminum Fin Condenser for HVAC 1-5 Ton SystemsHydrophilic Aluminum Fin Condenser for HVAC 1-5 Ton SystemsHydrophilic Aluminum Fin Condenser for HVAC 1-5 Ton SystemsHydrophilic Aluminum Fin Condenser for HVAC 1-5 Ton SystemsHydrophilic Aluminum Fin Condenser for HVAC 1-5 Ton Systems

FAQ
Q1: When will you arrange the delivery?

A: Generally 1-2 weeks after the payment, and we will continually inform customer the goods carriage status, until you receive the goods.

Q2. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q3: Can we get the some technological training?

Our company provide the complete technological training, including: installation, use and maintenance.

Q4: How long is your products warranty?

A: The products of our lifetime for you to provide maintenance, one year warranty, Courier fees to pay half, after a year of maintenance fees shall be borne by the buyers.

Q5: How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
