High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
Specifications
Model Number :
MT
Capacity :
Varies By Model, Typically 500-5000 Kg/hour
Packaging Details :
Export Standard Packaging / Wooden Case / Film Wrapping
Payment Terms :
L/C, D/P, T/T
Material :
PET
brand name :
MOOGE
Supply Ability :
1 SET PER 65-85 days
machinery test report :
Provided
Brand Name :
MOOGE
MOQ :
1 Set
Delivery Time :
75-80 days
warranty :
1 Year
Price :
USD 70,000 – 80,000 / Set (depending On Capacity & Configuration)
After-sales Service Provided :
Engineers
Certification :
CE
Place of Origin :
China
Final product :
Clean Plastic Flakes
Description

Product Overview

PET Bottle Washing Recycling Line

PET Bottle Washing Line is a complete solution for recycling waste PET bottles into clean PET flakes. It is widely used for processing post-consumer PET bottles collected from municipal waste, recycling stations and beverage industries.
The production process includes sorting, label removing, crushing, washing, separating, drying and packing. Through advanced washing technology, the system can efficiently remove contaminants and produce high-quality PET flakes suitable for further recycling applications.
Our PET recycling plants are available with different capacities, such as 300kg/h, 500kg/h, 1000kg/h and more. The complete line can be customized according to customer's raw material condition and investment requirements.

Specification

Applications
The recycled PET flakes produced by Mooge PET Bottle Washing Recycling Line can be widely used in various industries, including polyester fiber manufacturing, PET strap production, PET sheet production, plastic packaging and other recycled PET products.
By converting waste PET bottles into high-quality recycled flakes, this system helps reduce plastic waste, save resources and create additional value for recycling businesses. It is an ideal solution for recycling companies, waste management plants and plastic manufacturers looking for sustainable plastic recycling solutions.

Technical Specifications

Model
Capacity
Installed Power
Steam Use
Water Supply
Manpower
Area Required
MT-500
500 kg/hr
190 KW
Optional
4-5 m3/hr
4-6 Person
60*5*5 m
MT-1000
1000 kg/hr
260 KW
Optional
5-7 m3/hr
8-10 Person
80*8*5 m
MT-2000
2000 kg/hr
400 KW
Suggest Use
10-15 m3/hr
10-12 Person
80*8*5 m
MT-3000
3000 kg/hr
600 KW
80,000 Kcal
20-30 m3/hr
12-16 Person
100*8*10 m
MT-4000
4000 kg/hr
800 KW
100,000 Kcal
30-40 m3/hr
15-20 Person
135*10*10 m
MT-5000
5000 kg/hr
1000 KW
120,000 Kcal
40-50 m3/hr
15-20 Person
135*10*10 m
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
Bale Opener Machine
With 4 roller cylinder to feeding the bottles equal.
Machine chamber made by solid strong steel.
Motor speed adjust by inverter.
Machine fixed with support over the conveyor.
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

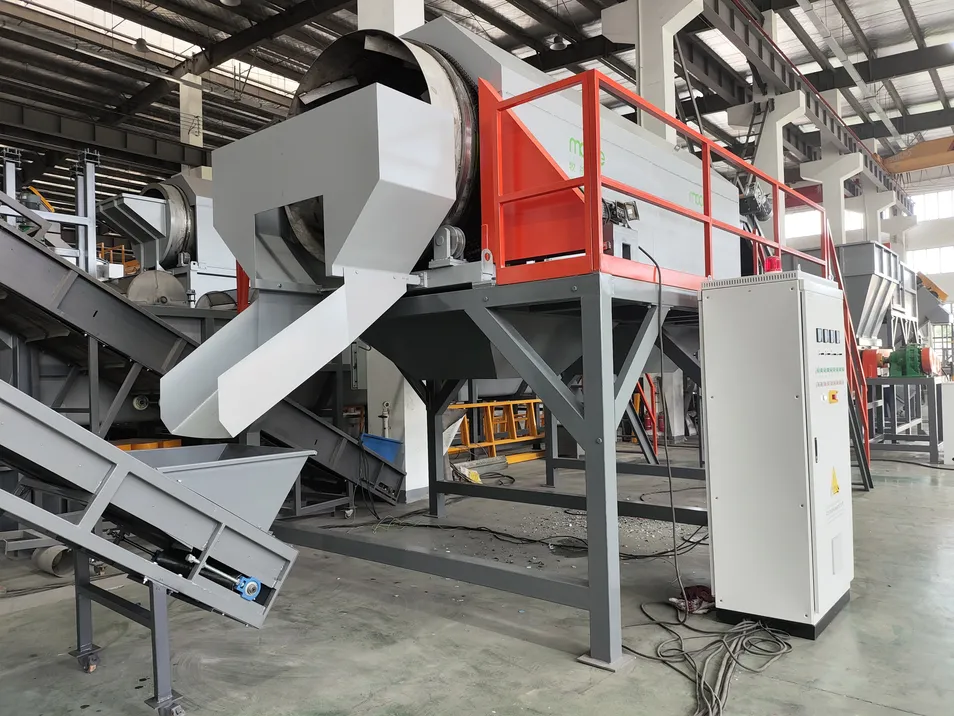

Trommel Machine
Loose pet bottle and remove caps, sand, soil and feeding the bottles out constantly.
Motor speed adjust by inverter.
The track and gear made by one unit steel with forging steel strong and heating treatment.
With high platform with dirty collecting chute, put the jumbo bags under the Trommel
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

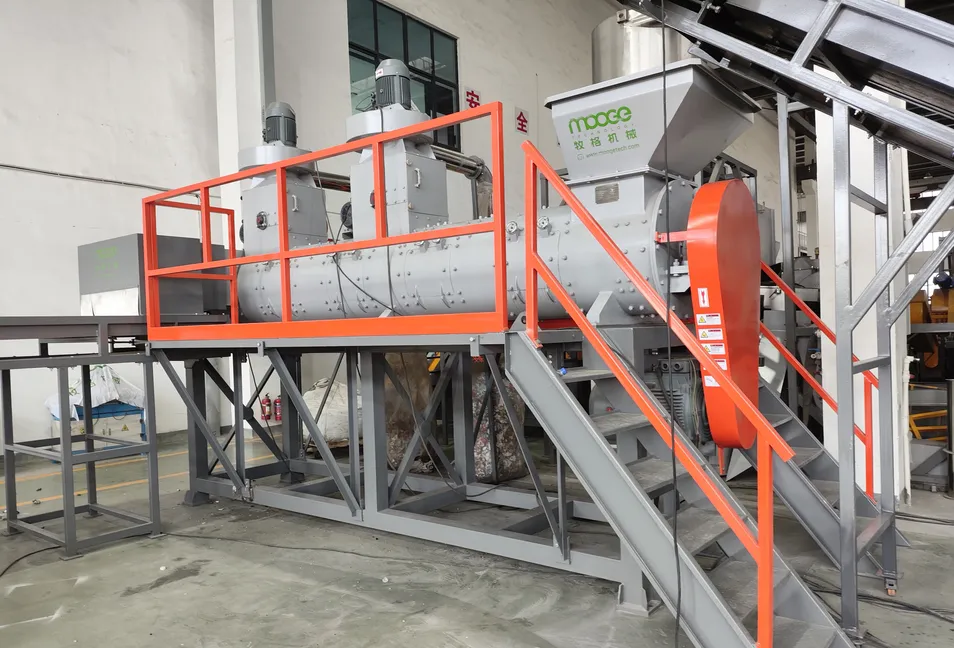

Label Remover Machine
Dry type.
Used to remove the labels from the bottle and separate label out from bottles.
Label remove effective > 98%.
Blade made by alloyed steel for long time use.
Blade is fixed by screw on the rotor easy to adjustable and changeable, maintenance.
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

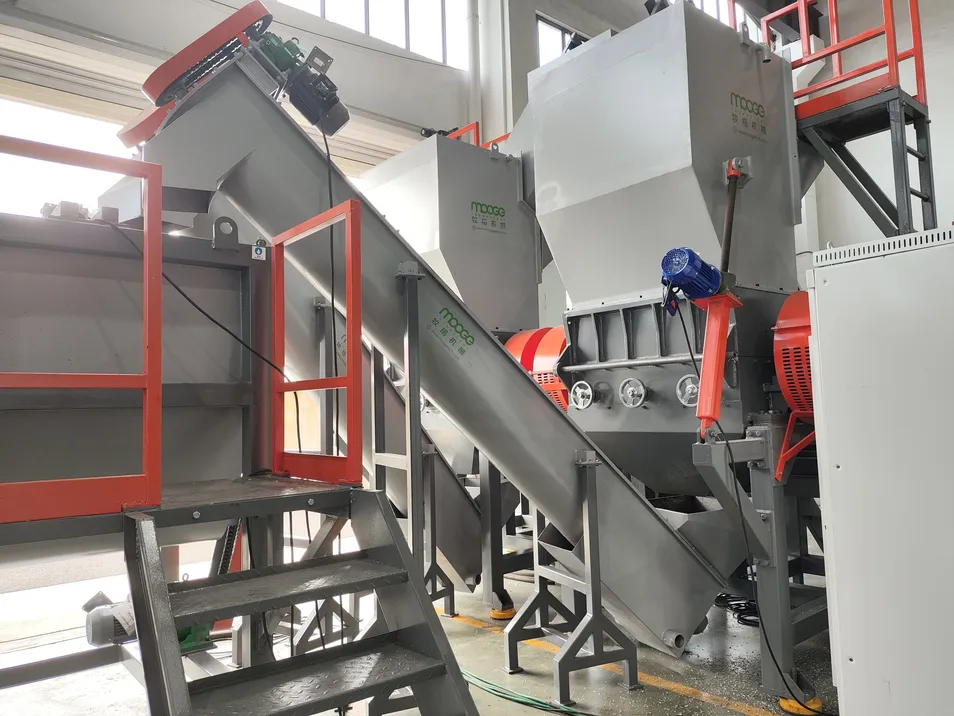

Crusher Machine
With water inlet do wet crushing.
The rotary and fixed blades fixed by screw inside the crusher are more wider and durable.
Crusher hopper is open by screw motor which save manpower.
Bearing house is installed outside of the crusher chamber so no dirty goes inside.
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine
High Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

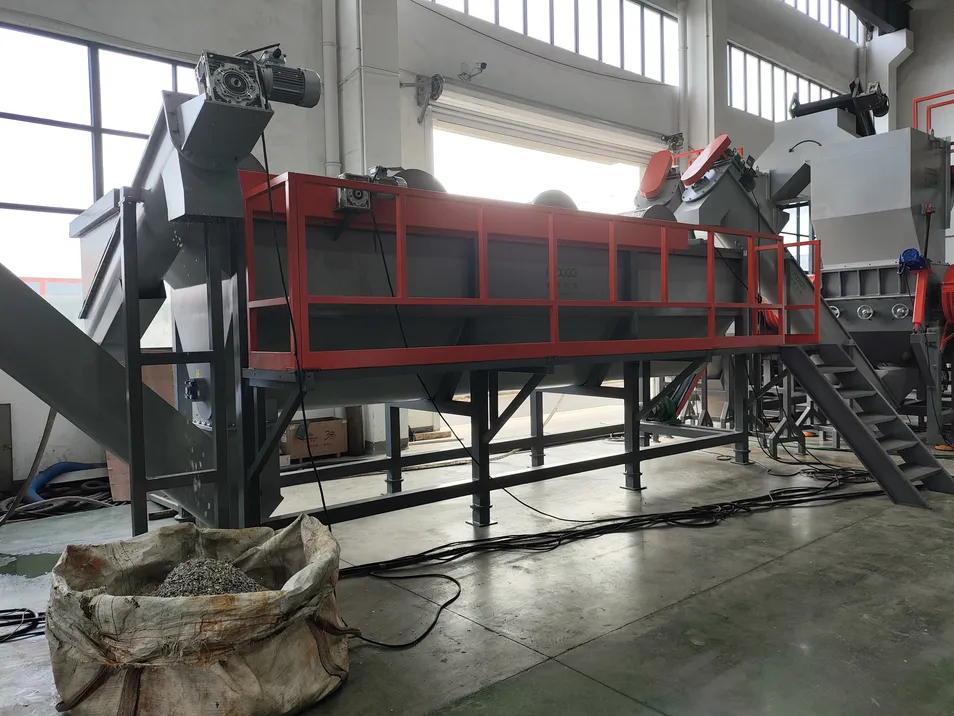

Hot Washing Tank
Floating Washing Tank
With hot water washing to remove oil/glue and other dirt from the flakes.
Heating method: by Steam or Electricity.
The tank made with insulation layer to save energy.
With the top rollers automatic take out the caps/rings and other impurities, flakes sinking down and take out by bottom screw.
With the rollers working will use less water to take out the caps/rings.
The machine made by SUS 304.
Using More Washing Tank in recycling line , more clean bottle flake

Company Profile

High Capacity Automatic PET Recycling System Plastic Bottle Recycling MachineHigh Capacity Automatic PET Recycling System Plastic Bottle Recycling Machine

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

  1. What material do you want to recycle?
  2. What is the material size?
  3. Is the material clean or dirty?
  4. What capacity do you need per hour?
  5. What is your final product requirement?
  6. Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

  • Complete plastic recycling solution
  • Customized machine configuration
  • Practical process design
  • Stable machine performance
  • Suitable for different plastic materials
  • Factory layout support
  • Installation and operation guidance
  • Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.
