MachineU > China Products > Machinery > Plastic & Rubber Processing Machinery > Plastic Raw Material Machinery > Plastic Granulators

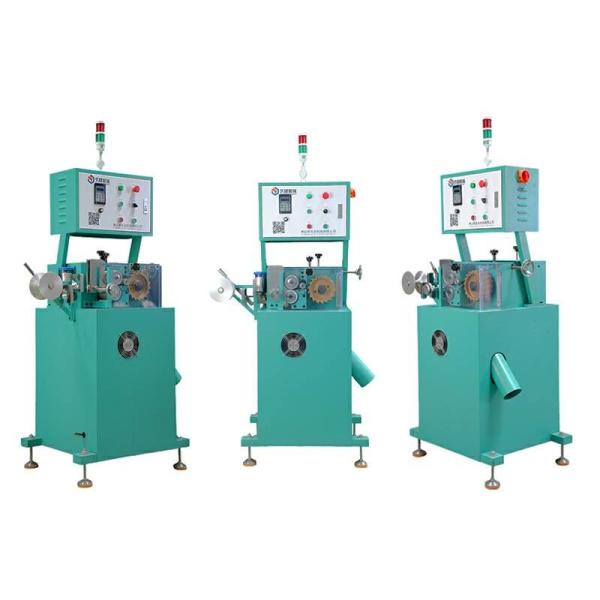

Recycling PE Waste Plastic Granulator PP Pelletizing Machine ODM
Recycling PE Waste Plastic Granulator PP Pelletizing Machine ODM
Specifications
Brand Name :
JIUXIN
Model Number :
JX68-A
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T,L/C
Supply Ability :
20
Delivery Time :
48hrs
Packaging Details :
Wooden Package
Output :
200m/min+150kg/h
Motor Power :
3kw-7.5kw
Material :
CPE,PE,CPP.PO,PP. EVA,BOPA, PUF,LLDPE
Feature :
cold-extruded
Description

Recycling PE Waste Plastic Granulator PP Pelletizing Machine ODM

Working Principle:

1,Working with the film making machine:

During the processing of film,the scraps sent out by the film making machine will be transferred to the transaction mechanism of the granulator immediately.The extrusion mechanism partially melts the scraps and extrudes them to the mold.The granulation mechanism cuts them into average particles,which are then inhaled by the feeding cooling mechanism and sent to the cooling pipe.Finally,they are sent to the customer collection device to complete the recycling procedure.

2,For slitting machine:

Roll the leftover onto the paper core and send them into granulator for granulating.

Application:

The design of this Waste Plastic Granulator machine has good reliability, maintenance and stability.It is specially for granulation recovery of CPE.CPP. PE. PO, PP, BOPA, PET, PVC and other thin film edges.

Structure:

The Waste Plastic Granulator machine consists of the following components:

electric mechanism, feeding mechanism, pressing device, transmission system and shear component.

Features:

Because the Waste Plastic Granulator machine presses the film directly and does not change the chemical composition,the granular product can be recycled efficiently,The main motor Cai Yong frequency converter adjusts the speed, saves energy, can adjust the speed steplessly, is conducive to environmental protection, simple structure, easy to operate (single-person operation), and has a high degree of automation.

Parameter
Power 5.5KW
Output ≈150m/min
Input 3-P 5-1 AC380V 50Hz
Weight ≈410kg
Dimension 1050x630x1700
Motor Simens
Inverter Simens
Rotary Cutter Sougan
Bearing SKF
Belt FF

Recycling PE Waste Plastic Granulator PP Pelletizing Machine ODMRecycling PE Waste Plastic Granulator PP Pelletizing Machine ODM
