MachineU > China Products > Machinery > Plastic & Rubber Processing Machinery > Plastic Raw Material Machinery > Plastic Granulators
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
250kg H Plastic Granulating Line Ldpe Film Recycling Machine
Specifications
Brand Name :
BEAKELAND
Model Number :
ML85
Certification :
CE
Place of Origin :
ZHANGJIAGANG,CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
15 sets per year
Delivery Time :
65 working days
Packaging Details :
Wooden case packing for LCL shipment, Film wrap packing for FCL shipment.
Name :
Plastic Granulating Line
Screw diameter :
85mm
L / D :
33
Design :
Single screw extruder
Plastic processed :
PE,PP,HDPE,LDPE film
Output :
150 - 250 kg / h
Compactor motor :
37KW
Main motor :
55KW
Venting system :
Vacuum degassing
Keyword :
LDPE Plastic Film Granulating Line
Description

150-250kg / H PP PE Film LDPE Plastic Film Plastic Granulating Line

Description:

PP PE Film LDPE Plastic Film Plastic Granulating Line is equipped with a cutter compactor ( agglomerator) on main extruder compared with the ordinary granulation machine. This new design makes the machine in compact structure,Meanwhile, the material will be pre-heated,cut,mixed to granulas shape and feed into extruder evenly. The degassing system and hydraulic screen changer equipped on extruder for get high purity pellets finally.The cutting system adopts to die face (water-ring) or strand( spaghetti) cutting for varies material application.

We have different output for PP PE Film LDPE Plastic Film Plastic Granulating Line , 60-100kg/h,100-150kg/h,150-250kg/h,250-350kg/h.400-550kg/h,600-750kg/h,800-1000kg/h.

Single stage extruder is normally designed for good cleanliness and low moisture material,such as leftover material from the film/bag production line, printed films ect.

Working Flow of PP PE Film LDPE Plastic Film Plastic Granulating Line​:

Belt conveyor → Cutter compactor(agglomerator) → Efficient extruder → Hydraulic screen filter changer → Water ring cutting pelletizing → Vibration machine → Dewatering machine → Blower → Storage hopper → Electric control panel

Technical parameters for PP PE Film LDPE Plastic Film Plastic Granulating Line:

Series Model Screw Diameter(mm) L/D Capacity (kg/h)
ML SJ65 65 33:1 60-100
SJ85 85 33~36:1 100~250
SJ100 100 33~36:1 200-350
SJ130 130 33~36:1 400-600
SJ160 160 33~36:1 650-800
SJ180 180 33~36:1 700-1000

Feature:

  • Intergrated cutting compactor make the recycling line in compact structure which requires less labor than normal recycling line.
  • Increase feeding efficiency for light materials like film,raffia,filament,forming materials ect.
  • High output and low energy consumption.
  • Configuration based on client requirement and material, and give reasonable suggest.

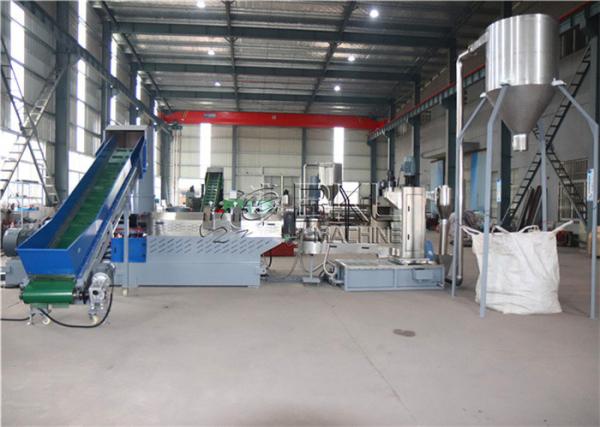

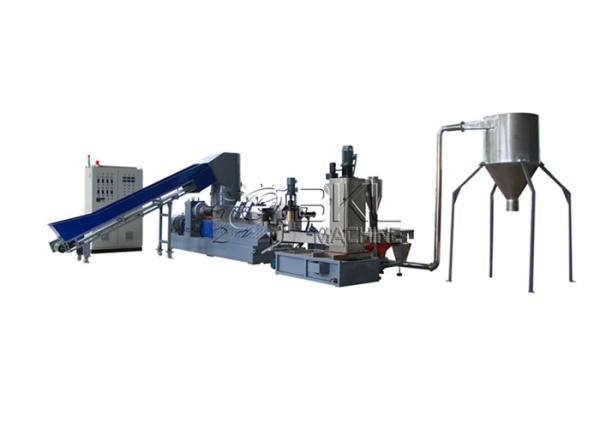

Photos:

250kg H Plastic Granulating Line Ldpe Film Recycling Machine

250kg H Plastic Granulating Line Ldpe Film Recycling Machine

250kg H Plastic Granulating Line Ldpe Film Recycling Machine
