LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
LDPE Film Pp Pe Film Washing System 500kg/Hr Wet Crusher
Specifications
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Payment Terms :
L/C, T/T
Supply Ability :
20 lines per year
Delivery Time :
60 working day
Packaging Details :
film
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Weight :
300-2000 kg
Material :
LDPE
Final product :
clean flakes
Final flake size :
100mm
Water consumption :
5-8 tons
Color :
Red and black
Description

LDPE Film Washing Machines In Plastic Recycling Production Line


Description:

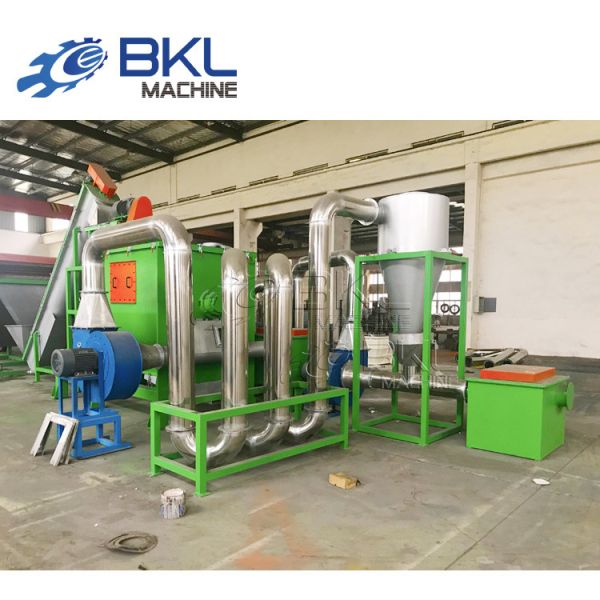

The production line including the conveyor belt,metal detector ,plastic wet crusher,floting washing tank,high speed friction washer,centrifugal dewatering machine drying system and label separating machine,material collecting packing system.

This unit is mainly for PP PE plastic film: the used plastic film are teared and crushed, then after being washed, dewatered and dryed, the water content will be very low, and PP/PE film after being washed can be directly granulated (water-ring palletizing), the gained granules are even and smooth with shiny surface. So, it is an ideal equipment in waste plastic recycling industry, with leading technology in the world.


We professionally manufacture plastic machinery and waste plastic washing production lines, PP/PE waste plastic film washing production lines, pipes and shape pipes production lines, and various auxiliary machines. Our products are more reasonable in design, more excellent in processing and more durable in usage.

Details:

S/N Item Requirement
1 Capacity: 500kg/hr
2 Raw material: Post-consumer LDPE film
3 Final Products: Recycled Clean flakes with below parameters:
Flakes size 100 mm
Moisture Content 1~3%
Total impurity 200ppm
4

Working condition:

Warehouse/workshop:

Straight line dimension: 32x3.5x4.5m

(also we can install the line as “U” or“L” shape)

Plant height: >5m Area: >500 ㎡

Power supply:Supply voltage: 3*380V+N+PE;

Voltage tolerance: +5%/-5%;

Control voltage: 24VDC+220VAC;

Frequency: 50HZ+-2%

Wire/cables:from power supply to control cabinet of this production line and all electrical cables from control cabinet to every single machine.

Air source: 0.6-0.8MPa

All water supplying and draining piping

Water supplying and water drain pools underground Water treatment system can buy optional

Steam supplying can buy optional to instead of electricity heating Other installation facility and tools

Sound proof for the crusher and other machines optional choose

5

Energy consumption:

Installed Power about:95.4KW

Actual consumption 95.4*70%=67KW

Consumption: 10 tons/h(Proposed water-treatment project)

Pressure: 0.4Mpa,The water consumption is 200kg/h, and the water circulation is 9.8 tons per hour.Steam supply

Labor requests:2-3 persons.

Machine parts list:

NO Machine name Quantity Remark
1 Belt Conveyor 1sets Necessary
2 Friction washer 1se Necessary
3 Wet Crusher 1set Material of blades: SKD-11
4 Lower Speed Friction Washer 1set Necessary
4 Floating Washer 1set Necessary
6 Screw Conveyor 1set Necessary
7 blower system 1set Necessary

In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
