Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
Specifications
Brand Name :
PULIER OR PR
Model Number :
NG300
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C or T/T
Supply Ability :
200 sets per year
Delivery Time :
30days to 50 days
Packaging Details :
Shipment requested package
Name :
Plastic Squeezer Machine
Motor :
WEG, SIEMENS, ABB, China Famous Brand
Electrical Control :
PLC or Control Cabinet
Capacity :
500kg/hr
Screw Diameter :
300mm
Installation Power :
90kw to 110kW
Final Water Content :
3% to 5%
Quality Guarantee :
1 year
Including Part :
Plastic Squeezer, Wind transferring system, cyclone silo
Description

High Efficiency and Automatic PE Film Plastic Squeezing Dryer Machine

Project Analysis


The moisture content of the film after washing is too high, which affects the quality of the particles produced.

The conical screw of the squeeze dryer pushes the material, squeezes out the water, and then passes through the cutting die to process the material into a semi-plasticized state.

The moisture content is within 3% to 5%.

Machine Feature:

Integrated screw and barrel avoid broking easily than welded screw

Strong gear box offer enough stenfth for whole system

Smart control with PLC touch screen and frequency inverter

Anti-blocking system for feeding part, which can avoid material block(anti-brige)

Output water content after plastic squeezer is 3% to 5%

Material before plastic squeezer

Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency

Material after plastic squeezer

Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency

Technical Parameter of plastic squeezer

Model NG250 NG300 NG320 NG350 NG380
PE Capacity(kg/hr) 300 500 800 1000 1200

PP

Capacity(kg/hr)

 200 400 500 600 800

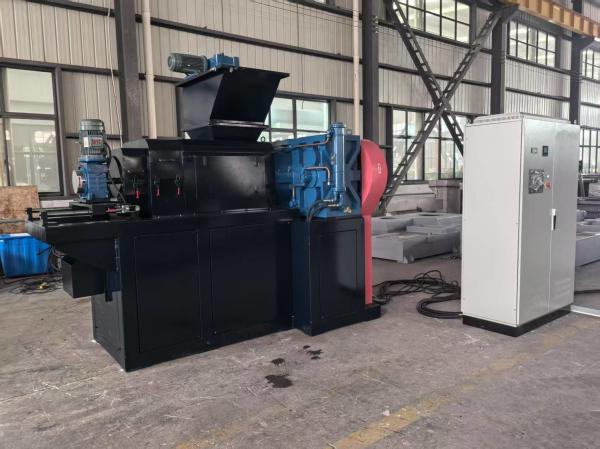

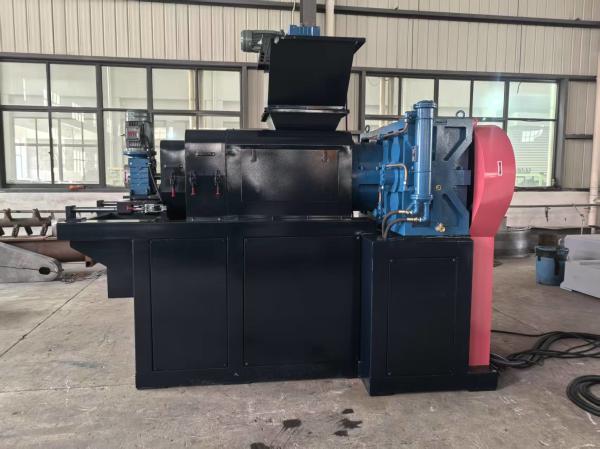

Main Machine Pictures

Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency

Automatic Plastic Squeezing Dryer Machine with Cyclone Silo High Capacity and Efficiency
