Low Rotating Speed And Stable Crushed HDPE PP Flake Plastic Pelletizing And Recycling Machine
Low Rotating Speed And Stable Crushed HDPE PP Flake Plastic Pelletizing And Recycling Machine
Low Rotating Speed And Stable Crushed HDPE PP Flake Plastic Pelletizing And Recycling Machine
Low Rotating Speed And Stable Crushed HDPE PP Flake Plastic Pelletizing And Recycling Machine
Low Rotating Speed And Stable Crushed HDPE PP Flake Plastic Pelletizing And Recycling Machine
Low Rotating Speed And Stable Crushed HDPE PP Flake Plastic Pelletizing And Recycling Machine
Specifications
Brand Name :
PR or Pulier
Model Number :
SJ150
Certification :
CE, SGS, UL
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD50000 to USD100000
Payment Terms :
T/T, L/C
Supply Ability :
100 set per year
Delivery Time :
40 to 60 days
Packaging Details :
Shipment Requested
Name :
Flake Single Screw Extruder
Capacity :
400kg/hr to 600kg/hr
Motor :
WNM, ABB, WEG, DAZHONG, CHINA Famous Brand
Gear Box :
Changzhou Guomao or Customerized
Application :
Crushed Rigid Flake
Screw and Barrel Material :
38CrMoAl or Bimetallic
Electrical Control :
Electrical Panel or PLC Touch Screen
Heating Way :
Electrical Heating
Cooling Way :
Force Cooling
Lubrication Way :
Force Lubrication
Quality Warranty :
12 Months
Aboard Service :
Installation and Commission
Operator :
1 or 2
Payment Wat :
T/T or L/C
Color :
White and Blue
Screen changer :
non-mesh filter as optional
Description
Compact and Stable Crushed HDPE PP Flake Plastic Pelletizing and Recycling Machine
Low Rotating Speed And Stable Crushed HDPE PP Flake Plastic Pelletizing And Recycling Machine
Applications of compact and stable crushed HDPE PP flake plastic pelletizing machine:
Applicable plastic materials: PE, HDPE, LDPE,PP, PS, ABS,etc
Material shapes: washed or crushed rigid bottle flake, shampoo bottle flake, milk bottle flake, plastic car bumper flake, HDPE blue jar crushed flake
size: 10mm to 20mm, 15mm best
Capacity varies from material melt index
Final pellets can be used for injection, extrusion and blown grade
Note: depending on different material properties, various downstream equipments are needed.
Features of crushed rigid flake single screw extruder:
Higher output, lower consumption, more automatic
machine operation stable and mature technology with 35 years design experiences
twin vacuum or two separated degassing for single stage extruder
Full automatic screen changer (back flush filter or disc type filter) as optional part with much labor saving
20% more output than our first -generation products
15% less consumption than our first -generation products
2 labors operating the whole line, one is for machine operation, the other manage the material feeding
10 years of machine service life

SJ model single stage pelletizing machine

Model SJ90 SJ100 SJ130 SJ150 SJ160 SJ180 SJ200
Raw Material Squeezed PP,PE film, HDPE bottles flakes, rigid ABS,PS, PC
Capacity(kg/hr) 200 to 300 300 to 400 500 500 to 600 600 to 800 800 to 1000 1000 to 1500
Main motor(kW) 55/75 90 132 160 185 200 250 to 315
How it works
1.Spiral feeder uploading the material by timer
2.Feeder and extruder is controller by inverter,
3.Different L/D for different material
4.Nature degassing, vacuum degassing adopting for moisture
5. Non-mesh filter, single plate double position screen changer with ensure large filtering area
5. horizontal waster ring pelletizing way, vertical water ring pelletizing way, pull strip pelletizing way and underwater pelletizing way can be choosed
6. VOC system and automatic package system also can be equipped with customer need

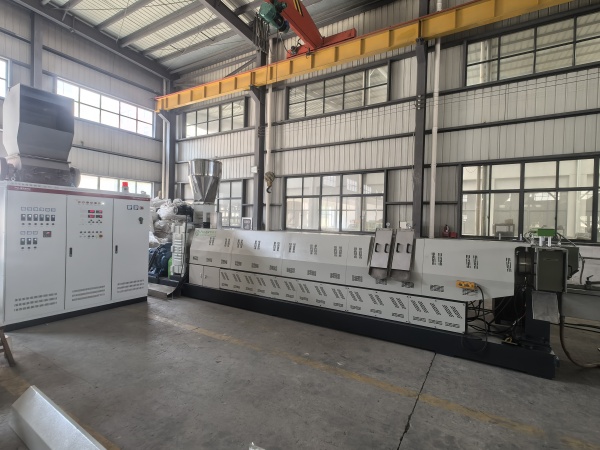

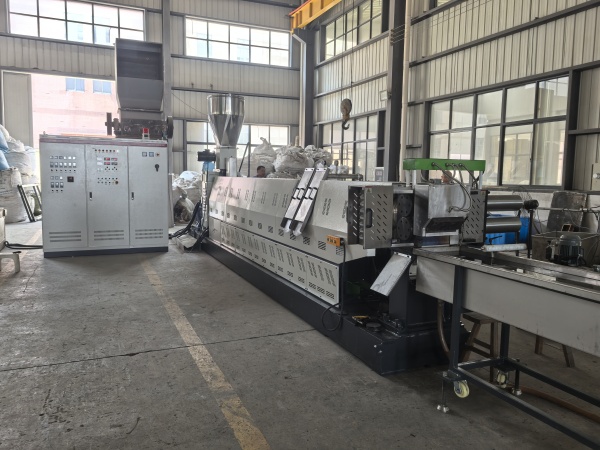

Machine Detail Pictures
screw loader manage the material feeding into main extruder feeder
Main extruder with twin vacuum degassing
Double position hydraulic screen changer with large screen changing square
( non-mesh filter screen changer as optional part, which can enhance the machine automation greatly)
Two stage connection part for efficiency degassing
Second stage extruder
Electrical control system (system program remote monitoring and transmission system)
General Information
Model name SJ
output Plastic pellets/granules/resins/plastic raw material
Machine parts Side force feeder, main extruder, hydraulic screen filter, second stage extruder, hydraulic screen filter,pelletizing unit, cooling system, silo, cabinet
Recycling material washed PP/PE/LDPE/HDPE film, bag, fiber,flake
Capacity range 100kg/h to 1200kg/h
Feeding way Conveyor, screw loader feeding
Screw diameter 75mm to 200mm
Screw L/D 25 to 33, 10 to 20
Screw raw material 38CrMoAl or bimetallic
degassing Natural degassing, vacuum degassing
Cutting type water ring pelletizing way, pull strip pelletizing, underwater pelletizing way
Cooling type Water cool, air cool
voltage Customized
Optional devices Metal detector, water cooling system, feeding silo, vibration system
Delivery time 40 to 60 days
Warranty time 13 months
Technical supports Machine layout, installation layout, engineer oversea service
certificate CE/ SGS/ TUV/ CO
