Specifications
Model NO. :
SS34LS
Luminous Intensity :
NO LIGHT
Color :
NO LIGHT
Structure :
Alloy
Material :
Silicon
CURRENT :
3A
PACAKGE :
SMAF
VOLTAGE :
40-200V
LOGO :
JF OR JH
Transport Package :
Tape Reel
Specification :
Surface Mount Package
Trademark :
JF
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Package Size :
4.00cm * 1.48cm * 0.38cm
Package Gross Weight :
0.001kg
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component

Part Number: SS34LS thru SS320LS

Major Parameter:

TYPE VRRM IF IR(25ºC) VF HBM Tj Outline
V A uA V KV ºC
SS34LS 40 3 200 0.47 8 150 SMAF
SS34SLS 40 3 200 0.43 8 150
SS36LS 60 3 150 0.52 8 150
SS36SLS 60 3 100 0.48 8 150
SS38SLS 80 3 100 0.55 8 150
SS310SLS 100 3 50 0.65 8 150
SS315LS 150 3 20 0.82 8 150
SS320LS 200 3 20 0.85 8 150


Brand: JF

Package: SMAF Plastic
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

· Metal silicon junction, majority carrier conduction

· Guard ring for overvoltage protection

· Low power loss, high effciency

· High surge capability, low forward voltage drop
· Surface mount outline

Application:
Used in power supply, lighting, auto, home appliance field


SMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky Diode

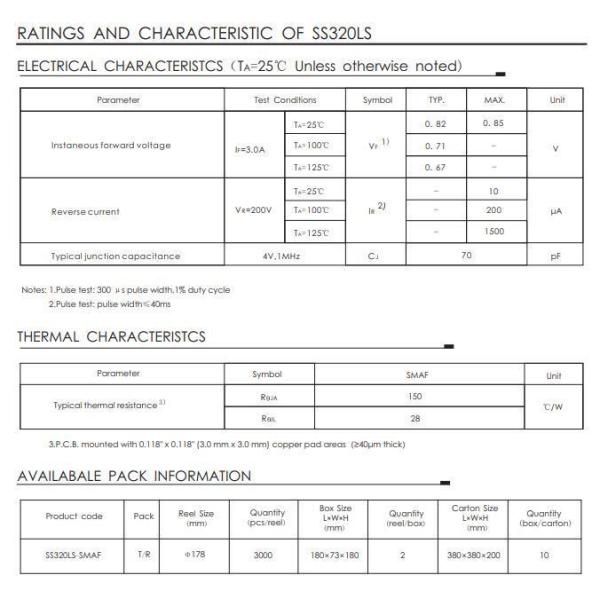

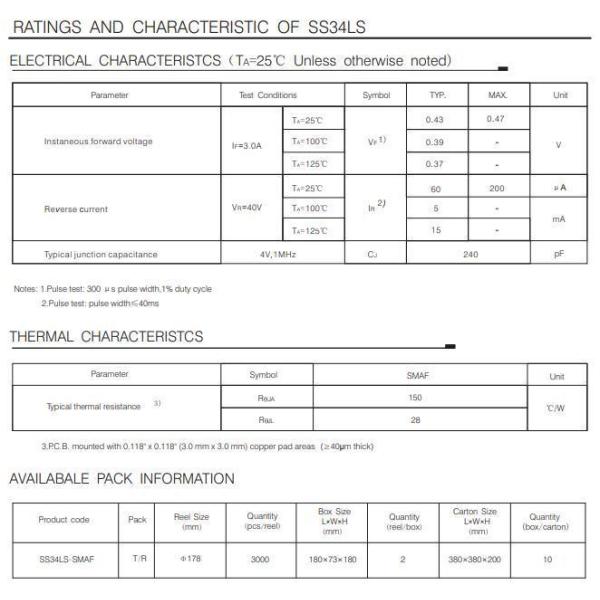

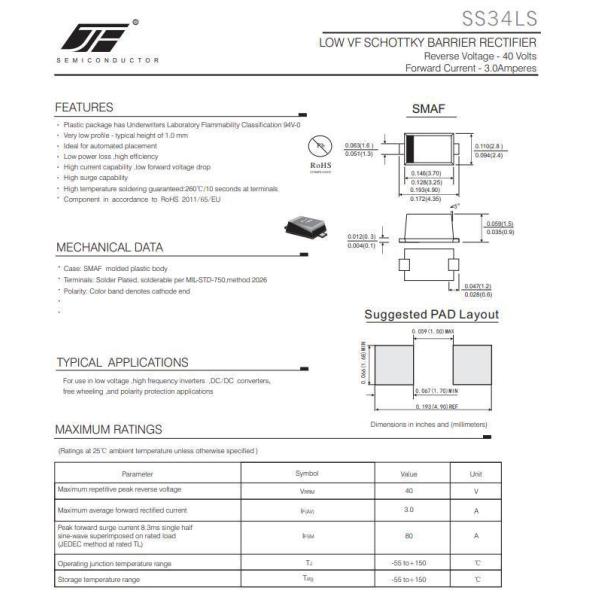

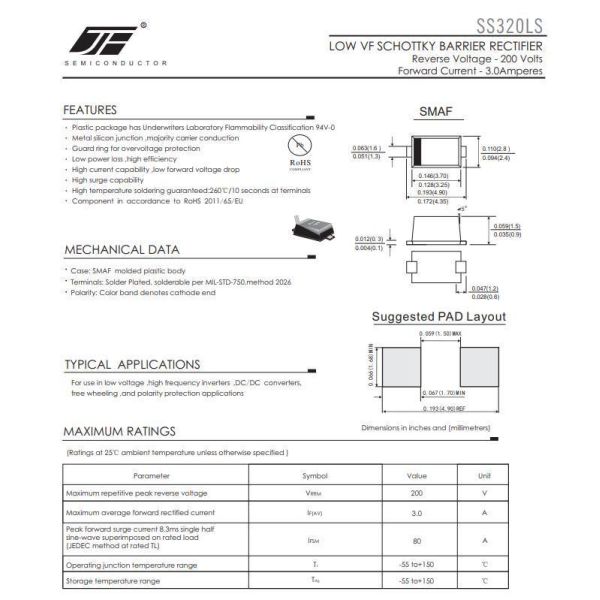

Product Parameters

SMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky DiodeSMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky DiodeSMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky DiodeSMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky Diode
SMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky Diode
SMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky Diode

SMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky DiodeSMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky DiodeSMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky Diode
SMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky Diode
SMAF JF/SS34LS/SS36LS/SS38LS/SS310LS/SS315LS/SS320LS 3A Current Low Vf Schottky Diode
