Specifications
Model NO. :
SS34LB
Luminous Intensity :
None Luminance
Color :
None Luminance
Structure :
Alloy
Material :
Silicon
VRRM :
40V
IF :
3A
PACKAGE :
SMB
OUTLINE :
SMD
Transport Package :
Tape Reel
Specification :
Surface Mount Package
Trademark :
JF
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Package Size :
20.00cm * 40.00cm * 15.00cm
Package Gross Weight :
8.000kg
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

LOW FORWARD VOLTAGE SCHOTTKY BARRIER RECTIFIER DIODES
Electronics Component

Part Number: SS34LB thru SS320LB

Major Parameter:

TYPE VRRM IF IR(25ºC) VF HBM Tj Outline
V A uA V KV ºC
SS34LB 40 3 200 0.47 8 150 SMB
(DO-214AA)
SS34SLS 40 3 200 0.43 8 150
SS36LS 60 3 150 0.52 8 150
SS36SLS 60 3 100 0.48 8 150
SS38SLS 80 3 100 0.55 8 150
SS310SLS 100 3 50 0.65 8 150
SS315LS 150 3 20 0.82 8 150
SS320LS 200 3 20 0.85 8 150


Brand: JF

Package: SMB/DO-214AA
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

· Metal silicon junction, majority carrier conduction

· Guard ring for overvoltage protection

· Low power loss, high effciency

· High surge capability, low forward voltage drop
· Surface mount outline

Application:
Used in power supply, lighting, auto, home appliance field

SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package

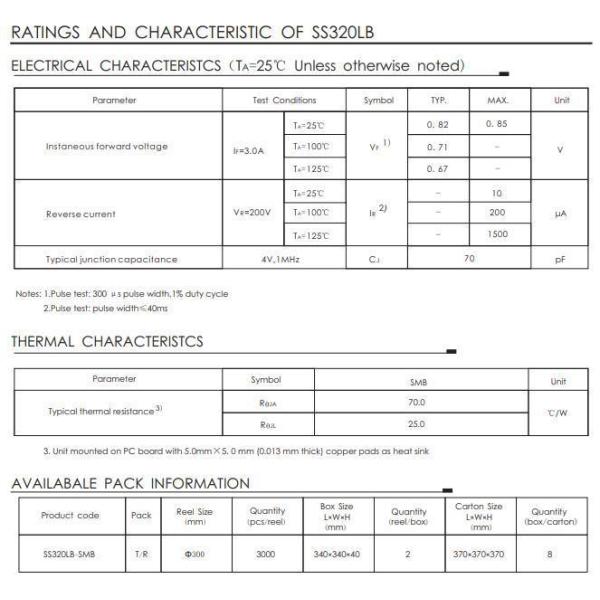

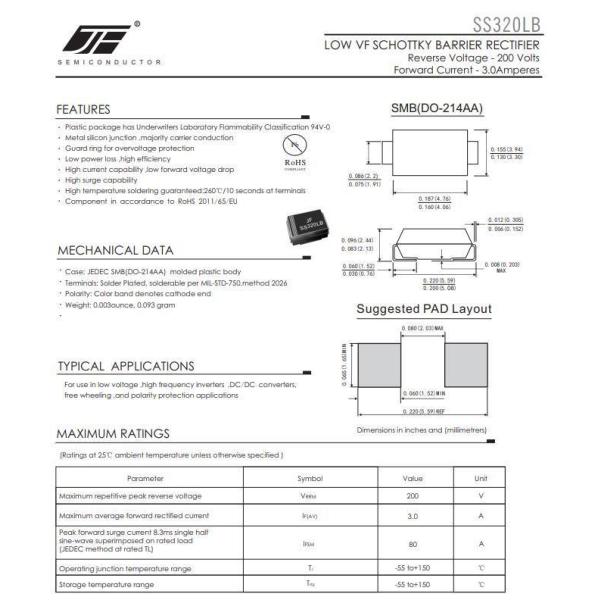

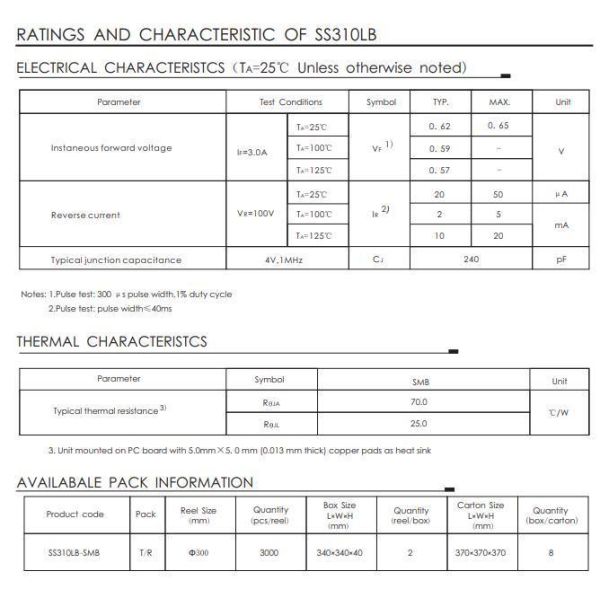

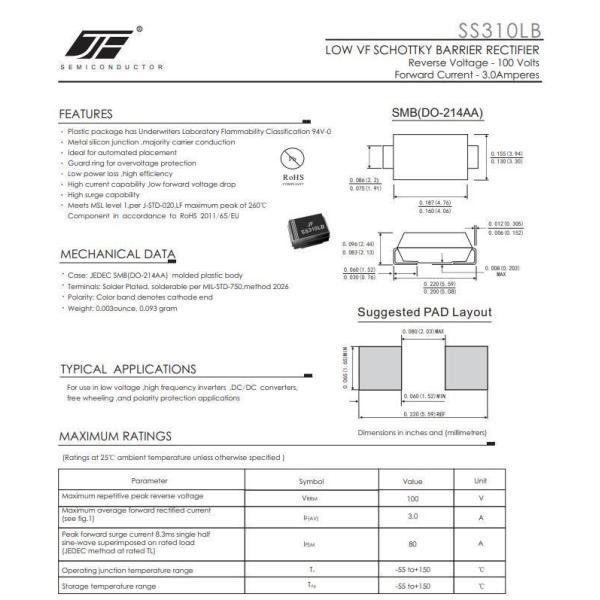

Product Parameters

SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB PackageSS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB PackageSS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB PackageSS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package




SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package
SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package

SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB PackageSS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB PackageSS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package
SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package
SS34LB THRU SS320LB Series 3A Current Low Vf Schottky Diode IF 3A with SMB Package
