Specifications
Model NO. :
2N7002K
Luminous Intensity :
None Luminance
Color :
None Luminance
Structure :
N channel
Material :
Silicon
VDSS (MAX) :
60V
ID (MAX) :
0.34A
Transport Package :
Tape Reel
Specification :
SMD type
Trademark :
JF
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Package Size :
20.00cm * 40.00cm * 15.00cm
Package Gross Weight :
8.000kg
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

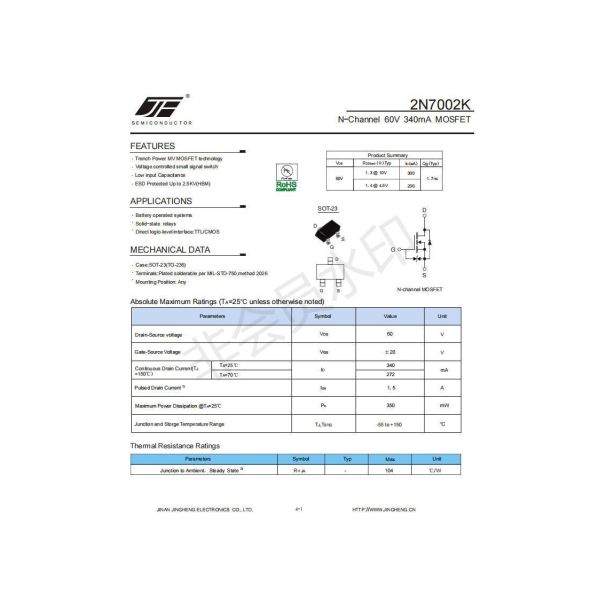

N-CHANNEL ENHANCEMENT MODE MOSFET 2N7002K
Electronics Component

Part Number: 2N7002K

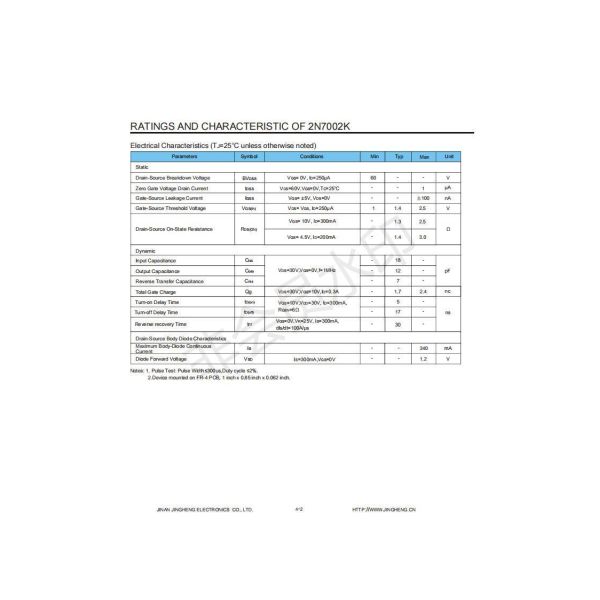

Major Parameter:

Type Channel VDSS(V)
(MAX)		 ID(A)
(MAX)		 PD(W)
(MAX)		 VGS(V)
(MAX)		 VTH(V) Rds(on)(Ω)@10V
(Typ)		 Rds(on)(Ω)@4.5V
(Typ) 		Rds(on)(Ω)@2.5V
(Typ)		 ESD protection for G-S(Y/N) Outline
2N7002 N 60 0.34 0.35 ±20 1.0~2.5 1.2 1.3 SOT-23
2N7002A N 60 0.34 0.35 ±30 1.0~2.5 1.2 1.3
2N7002K N 60 0.34 0.35 ±20 1.0~2.5 1.3 1.4 Y

Brand: JF

Package: SOT-23
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

· Trench Power MV MOSFET technology
· Voltage controlled small signal switch
· Low input Capacitance
· ESD Protected Up to 2.5KV(HBM)

Application:
· Battery operated systems

· Solid state relays
· Direct logic-level interface:TTL/CMOS


SOT-23 Package 60V 230mA N-CHANNEL MOSFET 2N7002K for Superior and Silicon DevicesSOT-23 Package 60V 230mA N-CHANNEL MOSFET 2N7002K for Superior and Silicon Devices
