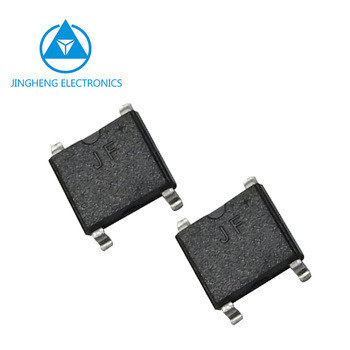

ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
ABS202/ABS204/ABS206/ABS208/ABS210 SURFACE MOUNTGLASS PASSIVATED BRIDGE RECTIFIER
Specifications
Model NO. :
ABS
Structure :
Alloy
Material :
Silicon
Transport Package :
ABS
Specification :
BRIDGE RECTIFER DIODE
Trademark :
JF, JH
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Electronics Component

Part Number: ABS202/ABS204/ABS206/ABS208/ABS210

Major Parameter:

Type VRRM IF IR(25ºC) IR(100ºC) IR(125ºC) VF Trr Outline
V A μA μA uA V nS
ABS202 200 2.0 10 500 1.1 ABS
ABS204 400 2.0 10 500 1.1
ABS206 600 2.0 10 500 1.1
ABS208 800 2.0 10 500 1.1
ABS210 1000 2.0 10 500 1.1

Brand: JF / JH

Package: ABS package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

Plastic package has Underwriters Laboratory Flammability
Classification 94V-0
Glass passivated chip junction
Rating to 1000V PRV
Ideal for printed circuit board
High temperature soldering guaranteed:260 C/10 seconds at terminals
°
Component in accordance to RoHS 2011 65 EU

Application:
Used in power supply, lighting, auto, home appliance field
