Specifications
Model NO. :
GBJ3508
Luminous Intensity :
None Luminance
Color :
None Luminance
Structure :
Alloy
Material :
Silicon
VRRM :
800V
IF :
35A
PACKAGE :
GBJ
FACTORY :
JINAN JINGHENG ELECTRONICS CO., LTD.
Transport Package :
Carton
Specification :
BRIDGE RECTIFER DIODE
Trademark :
JF
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Package Size :
20.00cm * 40.00cm * 15.00cm
Package Gross Weight :
8.000kg
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

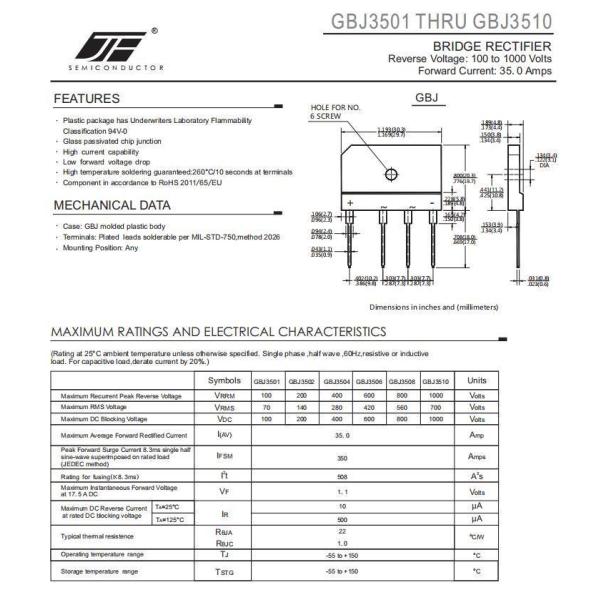

BRIDGE RECTIFIER
Electronics Component

Part Number: GBJ3508

Major Parameter:

Type VRRM IF IR(25ºC) IR(100ºC) IR(125ºC) VF Trr Outline
V A μA μA uA V nS
GBJ3506 600 35 10 500 1.1 GBJ
(6KBJ)
GBJ3508 800 35 10 500 1.1
GBJ3510 1000 35 10 500 1.1

Brand: JF

Package: GBJ package
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

Features:

· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· Glass passivated chip junction
· High surge forward current capabulity
· High temperature soldering guaranteed:260 C/10 seconds at terminals
· Component in accordance to RoHS 2011 65 EU

Application:
Used in power supply, lighting, auto, home appliance field
