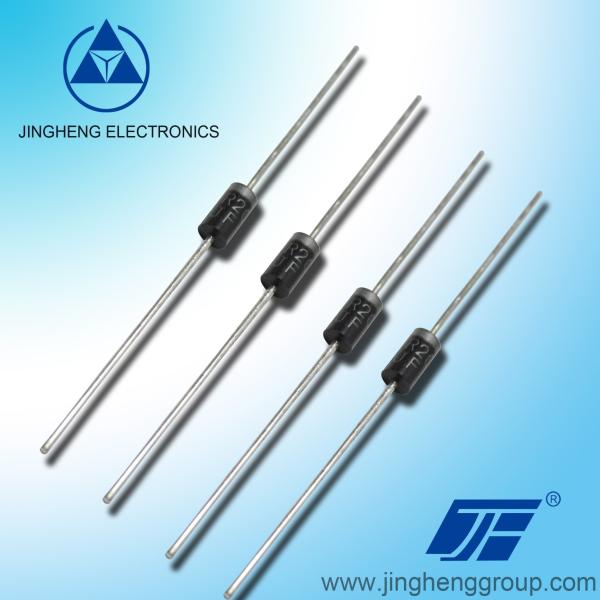

DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
DB105R/DB105B/DB105S/DB105K Planar Bilateral Voltage Triggered Switch SIDAC With VBO 105 Volts
Specifications
Model NO. :
DB105
Luminous Intensity :
NO LIGHT
Color :
NO LIGHT
Structure :
Planar
Material :
Silicon
Transport Package :
Carton
Specification :
Carton
Trademark :
JF
Origin :
China
HS Code :
85411000
Supply Ability :
10000000000piece/Year
Package Size :
5.58cm * 1.48cm * 0.38cm
Package Gross Weight :
0.001kg
Place of Origin :
China
Certification :
ISO9001:2015, ISO14001:2015, IATF16949
MOQ :
3,000 Pieces
Price :
Negotiable
Delivery Time :
Peak Season Lead Time: one month Off Season Lead Time: within 15 workdays
Payment Terms :
LC, T/T, PayPal
Description
Product Description

SIDAC Bilateral Voltage triggered Switch
Electronics Component

Part Number: DB105R/DB105B/DB105S/DB105K

Major Parameter:

Type IT VDRM VBO IDRM IBO IH VTM ITSM Rs dv/dt di/dt Outline
Max Min Min Max Max Typ Max Min Min Typ
A Typ V V μA μA mA mA V A KΩ V/μs A/μs
DB105R 1 90 95 113 5 10 40 100 1.5 20 0.1 1500 150 R-1
DB105B 1 90 95 113 5 10 40 100 1.5 20 0.1 1500 150 DO-15
DB105S 1 90 95 113 5 10 40 100 1.5 20 0.1 1500 150 SMA
DB105K 1 90 95 113 5 10 40 100 1.5 20 0.1 1500 150 SOD-123FL

Brand: JF logo
Manufacturer: Jinan Jingheng Electronics Co., Ltd.

General Description:
SIDAC (Silicon Diode for Alternating Current)represents an unique set of thyristor qualities. The SIDAC is a bidirectional voltage triggered switch. Upon application of a voltage exceeding the sidac breakover voltage point, the sidac switches on through a negative resistance region to a low on-state voltage. conduction will continue until the current is interrupted or drops below the minimum holding current of the device. At present, JINGHENG can offer three kinds of package in DO-41/ R-1/ DO-15/ Minimelf/ SMA/ SOD-123FL. JINGHENG's sidacs feature glass passivated junctions to ensure a rugged and dependable device capable of withstanding harsh environments.
Features:
Bilateral Voltage triggered
AC circuit oriented
Glass-passivated junctions
High surge current capabilities
Applications:
High voltage lamp ignitors
Xenon ignitors
Natural gas ignitors
Over voltage protector
Gas oil ignitors
High voltage power supply
Pulse generators
Fluorescent lighting ignitors (high intensity discharge) lighting ignitors
