High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Specifications
Brand Name :
ZSX
Model Number :
2PMG27-19
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
150000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Aviation Plug Socket Connector 2PMG27-19
Gender :
Male
Boday Material :
Metal
Working temperature :
-60℃~+200℃
Description
High Reliability 2PMG27-19 Glass Sintered Hermetic Connector For Aerospace & Military

2PM27G-19 is a 19-Pin glass-sealed socket with a 27-shell in the 2PM series. Its core advantage lies in the airtight insulating base formed by high-temperature sintering of glass and metal. Compared with ordinary phenolic bakelite insulation, it can achieve zero leakage, high-temperature resistance, and stable insulation under extreme working conditions such as vacuum, high pressure, and chemical corrosion. It is a core component for highly reliable connections in fields such as military industry, aerospace, and shipping.

Product display
Product Performance Details
Product model 2PMG27-19 Insulation resistance ≥1000MΩ (normal), ≥20MΩ (damp heat)
Ambient temperature
-60℃~+200℃
Shock acceleration Once at 500g, multiple times at 100g
Vibration acceleration 10~5000Hz 50g Working voltage ≤560V
Sealing grade IP68 (airtight, leakage rate ≤1×10⁻⁸ Pa · m³/s) Contact resistance ≤1.9mΩ (φ1.5 pin)
Mechanical life ≥500 times Shell material Anodizing of aluminum alloy
Pin material Kovar/copper alloy, nickel-plated/gold-plated (commonly used gold-plated in military industry) Wiring method Welding

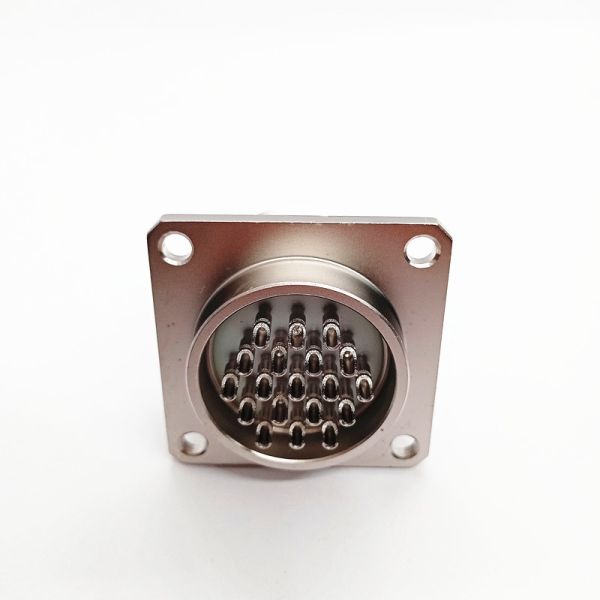

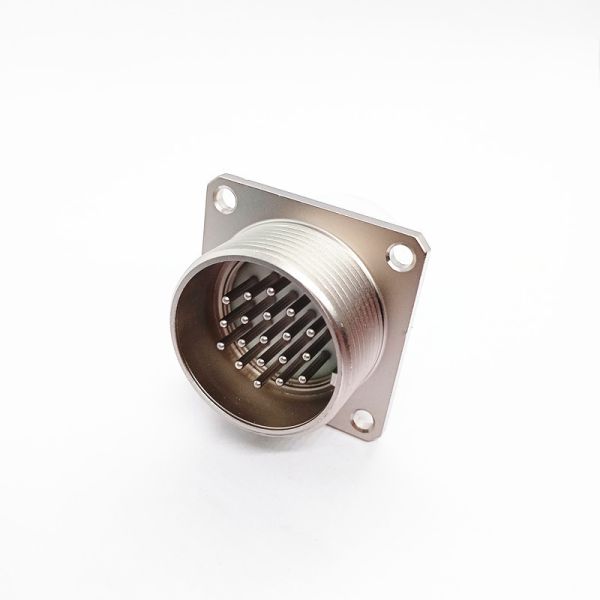

Physical product display
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Product external dimensions
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Related product recommendations
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Display of Strength
Office area
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Production Plant Area
Machining production workshop
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Precision Assembly Production Workshop
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Glass-to-metal sealed production workshop
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Obtained Certification Certificate
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & MilitaryHigh Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Customer visit
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Product packaging
High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
Packaging and Shipping
  • Standard export carton High Reliability Glass Sintered IP68 Sealed Hermetic Connector 2PMG27-19 for Aerospace & Military
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
