Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Specifications
Brand Name :
ZSX
Model Number :
J56-40ZJ2
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Micro-D Connector J56-40ZJ2
Gender :
Male
Boday Material :
Metal
Insulator material :
PPS
Working temperature :
-55℃~+125℃
Specification :
8/10/12/20/32/40/50/64 Pins
Description

High Reliability Board-to-Board Adapter J56-40ZJ2 40 Pins PCB Connector

J56 series are dual-in-line through-hole adapter sockets for PCB interconnection, complying with military enterprise standards. Featuring 2.54×2.54mm grid pitch, they support same-pin-count mutual mating and multi-unit array mounting. With 3A rating, low contact resistance (≤10mΩ), and wide temperature range (-55℃ to +125℃), these connectors are ideal for high-reliability signal connections in aerospace, defense, marine, and industrial electronics, especially in space-constrained instrument enclosures.

Product display
Product Performance Details
Product model J56-40ZJ2 Contact resistance ≤10 mΩ
Ambient temperature -55℃~+125℃ Insulation resistance ≥5000MΩ
Vibration 50Hz~2000Hz 150m/s2 Medium pressure resistance 1000V
Termination method R/A PCB welding Mechanical life ≥500 times
Impact 980m/s2 6ms Rated current 3A

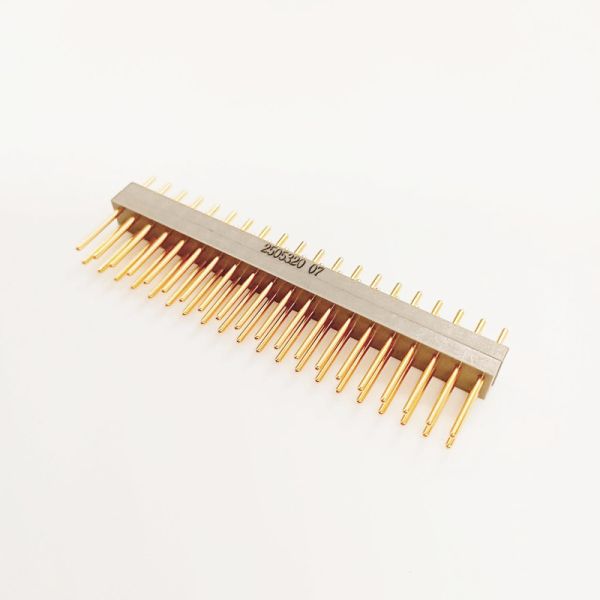

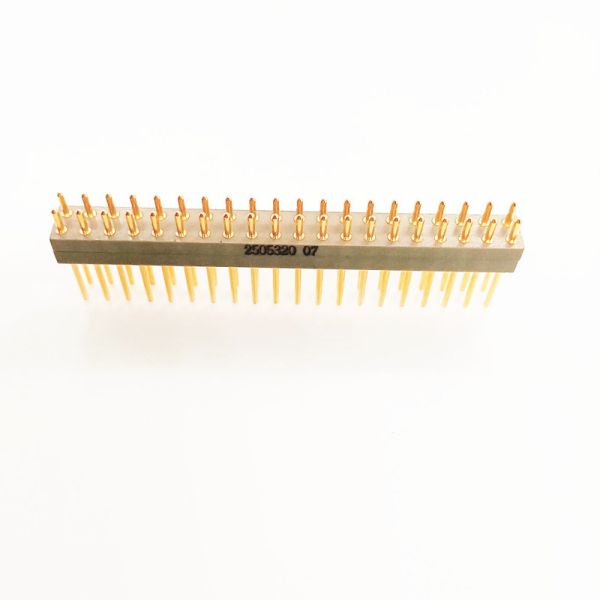

Physical product display
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Related product recommendations
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Display of Strength
Production Plant Area

Machining production workshop

Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range

Precision Assembly Production Workshop

Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range

Glass-to-metal sealed production workshop

Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Obtained Certification Certificate
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Customer visit
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Product packaging
Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
Packaging and Shipping
  • Standard export carton Military Standard Micro-D Connector J56-40ZJ2 40 Pins PCB Connector with Wide Temperature Range
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
