50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Specifications
Brand Name :
ZSX
Model Number :
4.3-10-C-J-7
Certification :
ISO9001
Place of Origin :
China
MOQ :
50
Price :
$2.85 --$3.95(Depending on the quantity )
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
4.3-10 Din Connector
Gender :
Male
Boday Material :
Nickel plated brass
Insulator material :
PTFE
Working temperature :
-45℃~+125℃
VSWR :
≤ 1.25
Description
4.3-10 DIN Male (plug) Crimp Connector

4.3-10 RF connector is a 50Ω miniaturized RF coaxial connector, specifically designed to replace the traditional 7/16 DIN connector. This connector is a core connection component in the communication field and is widely used in macro base stations, small base stations, indoor wireless systems, and wireless remote control devices (RRU). It is compatible with both active and passive antennas, splitters, filter systems and other devices simultaneously. In addition, it is also widely applied in scenarios such as multi-band distributed antenna systems (DAS) and panel blind insertion matching. By leveraging the advantage of miniaturization, it enhances the flexibility of equipment layout and facilitates the integrated design of communication equipment.

Product display
Product Performance Details
Product model
 4.3-10-C-J-7
Dielectric constant
≥5000MΩ
Characteristic impedance
 50 ohm
Body material
 Nickel-plated brass
Frequency range
 DC-6GHz
Central conductor
 Gold-plated brass
Voltage standing wave ratio
 ≤1.25
Insulator material
 PTFE
Medium pressure resistance
 ≥2500V RMS ,50hz, at sea level
Durability
 ≥500 Cycles
Contact resistance

Center contact:≤1mΩ

Outer contact:≤1mΩ
Temperature range
 -45℃~+125℃

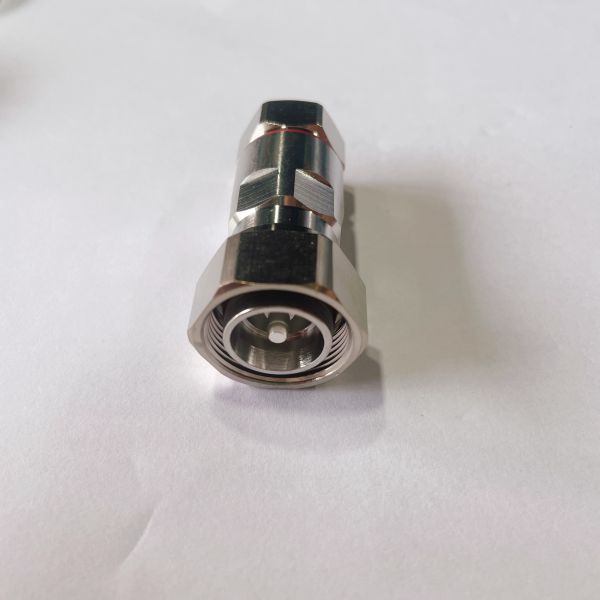

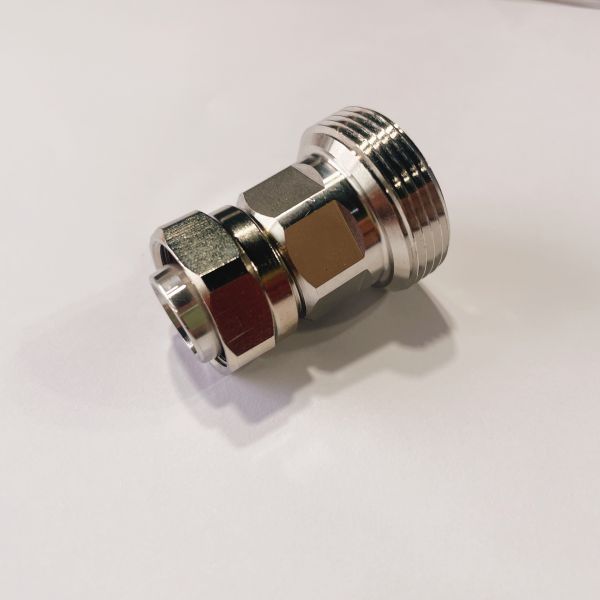

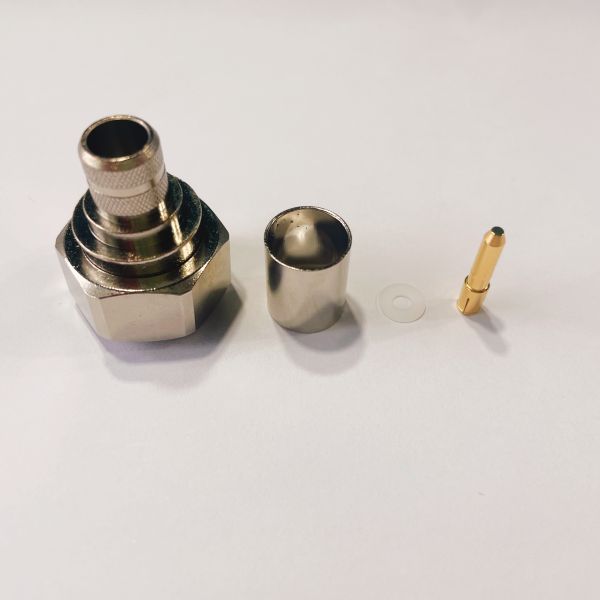

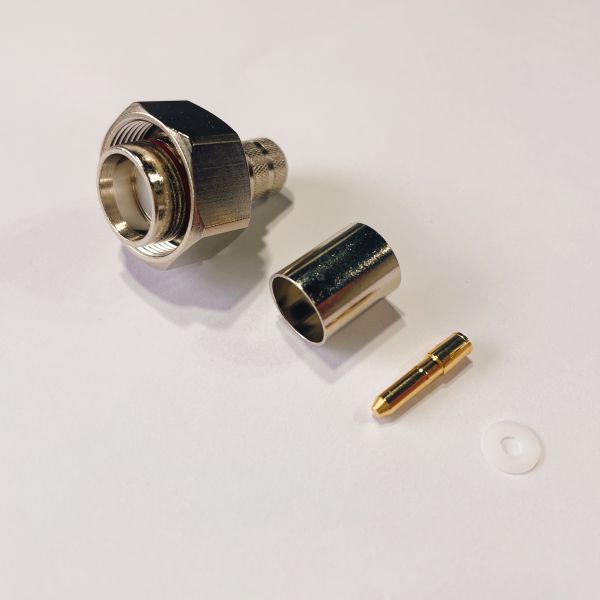

Physical product display
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable

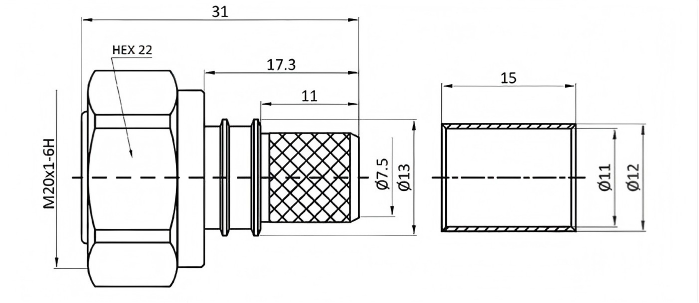

Product external dimensions
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Related product recommendations
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Display of Strength
Office area
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Production Plant Area
Machining production workshop
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Precision Assembly Production Workshop
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Glass-to-metal sealed production workshop
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Obtained Certification Certificate
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Customer visit
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Product packaging
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable 50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
Packaging and Shipping
50 Ohm 4.3-10 Din Connector Crimp Plug Male Connector Small For LMR400 Cable
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of military and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
