DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female
DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female
DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female
DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female
DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female
DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female
Specifications
Brand Name :
ZSX
Model Number :
SMA-J-SMPM-K-RG405
Certification :
ISO9001
Place of Origin :
China
MOQ :
10 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
RF Cable Assembly
Gender :
Male to female
Boday Material :
Gold plated brass
Insulator material :
PE
VSWR :
≤1.25
Temperature range :
-20℃~+80℃
Description

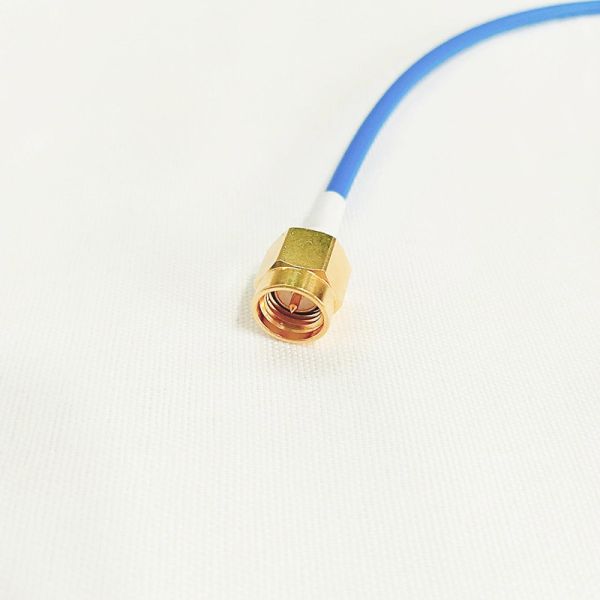

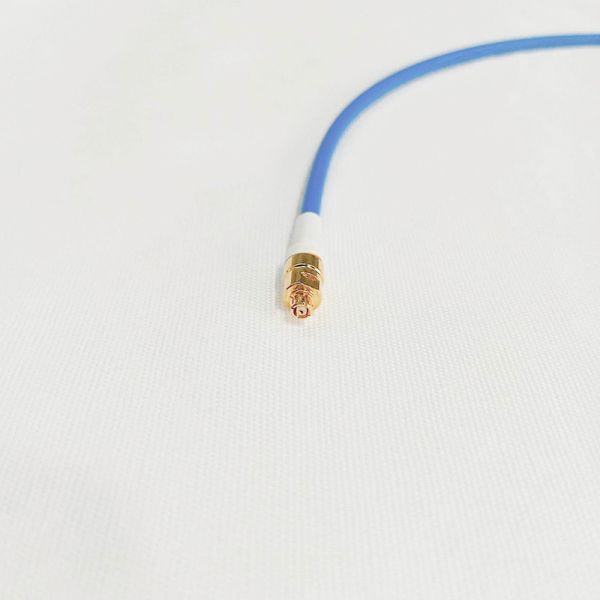

RF Cable Assembly SMA Male To SMPM(Mini SMP) Female With RG405 Coaxial Cable

RF cable assemblies are core interconnection components composed of RF cables, RF connectors and related accessories (such as shielding layers, insulators, etc.), specifically designed for low-loss and highly stable transmission of RF signals. It is widely adaptable to multiple fields such as communication, test and measurement, aerospace, etc.

Product display
Product Performance Details

Product model

 SMA-J-SMPM-K-RG405

Bending radius


13mm

Inner conductor material

 Silver-plated copper wire

Impedance

 50±2

Insulating layer

 Polytetrafluoroethylene (PTFE)

Frequency range

 DC-18G

Outer conductor

 Silver-plated copper wire

Maximum operating voltage

 1500VMS

Outer protective layer

 Perfluoroethylene-propylene copolymer (FEP)

Maximum operating frequency

 3000MHAz
Physical product display

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Related product recommendations

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Display of Strength

Production Plant Area
Machining production workshop

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Precision Assembly Production Workshop

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Glass-to-metal sealed production workshop

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Obtained Certification Certificate

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM FemaleDC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Customer visit

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Product packaging

DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female

Packaging and Shipping
DC-18G RF Cable Assembly RG405 Coaxial Cable Assembly SMA Male To SMPM Female
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ

Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.

Q:What are the main products of your company?

A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 piece .

Q: Which logistics company does your company ship through?

A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q:What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card &T/T)

Q: How long is your warranty?

A: The warranty period is three months.
