GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Specifications
Brand Name :
ZSX
Model Number :
GX16-5
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
Aviation Plug Connector
Gender :
Male/female
Boday Material :
Aluminum alloy
Number of pins :
2/3/4/5/6/7/8/9/10
Working temperature :
-55℃~+70℃
Withstand voltage :
1500V
Description
RS765-M12 Aviation Plug Connector GX16-5 5 Pin Male And Female Connector
Product Overview

GX series aviation plugs are domestic circular locking connectors (National standard code GX, compatible with standards such as RS765), named "GX + outer diameter size" (For example, GX12 corresponds to an outer diameter of 12mm). According to the outer diameter size, the mainstream models are: GX8, GX12, GX16, GX20, and GX25 (corresponding to shell diameters of 8/12/16/20/25mm) used in industrial equipment, instruments and meters, and outdoor scenarios.

Product Specifications
Product Model GX16-5 Contact Piece Gold plating of copper
Shell Material Aluminum alloy Insulation Resistance ≥500MΩ
Locking Method M16*1.0 Thread Working Voltage 125V
Number of Pins 2/3/4/5/6/7 Pins Mechanical Life 500 times
Protection Grade IP 65 Temperature Rise ≤ 50℃
Contact Resistance ≤10MΩ Withstand Voltage 1500V
Working Temperature -55℃ ~ +70℃ Working Current 4 A

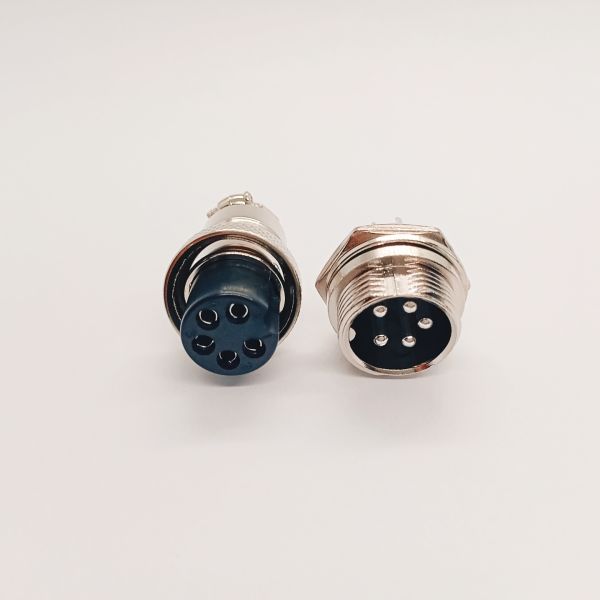

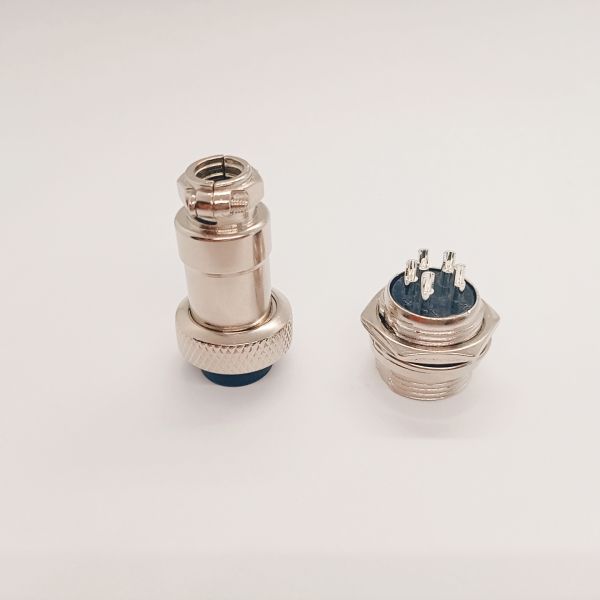

Product Images
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Product Dimensions
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Related Products
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Company Overview
Office Area
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Production Facilities
Machining Production Workshop
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Precision Assembly Production Workshop
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Glass-to-Metal Sealed Production Workshop
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Certifications
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Customer Visits
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Product Packaging
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
Packaging & Shipping
GX16-5 Aviation Plug Connector with 1500V Withstand Voltage, Aluminum Alloy Body, and 5 Pin Male/Female Configuration
  • Standard export carton
  • Customized specifications such as logo or others according to customers' requirements
  • Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)
Frequently Asked Questions
Q: Are you trading company or manufacturer?

A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of aeronautics and astronautics and commercial RF microwave transmission components.

Q: What are the main products of your company?

A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Q: Does your company accept customized products?

A: We accept ODM.

Q: Does your company provide free samples?

A: We support free samples with freight paid on delivery.

Q: What is the minimum order quantity of your company's products?

A: 200 pieces. The price is more expensive under 200 pieces.

Q: Which logistics company does your company ship through?

A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.

Q: How long does it usually take to receive the goods?

A: Generally, 3-8 working days for international express, 5-8 working days for air freight.

Q: What payment methods does your company accept?

A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

Q: How long is your warranty?

A: The warranty period is three months.
