GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Specifications
Brand Name :
ZSX
Model Number :
GX16-4
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
GX16-4 Pin Connector
Gender :
Male/female
Boday Material :
Aluminum alloy
Number of pins :
2/3/4/5/6/7/8/9/10
Working temperature :
-55℃~+70℃
Withstand voltage :
1500V
Description
GX16-4 Pin Aviation Connector

GX series aviation plugs are domestic circular locking connectors (National standard code GX, compatible with standards such as RS765), named "GX + outer diameter size" (For example, GX12 corresponds to an outer diameter of 12mm). According to the outer diameter size, the mainstream models are: GX8, GX12, GX16, GX20, and GX25 (corresponding to shell diameters of 8/12/16/20/25mm) are mainly used in industrial equipment, instruments and meters, and outdoor scenarios.

Product Specifications
Product ModelGX16-4Contact PieceGold plating of copper
Shell MaterialAluminum alloyInsulation Resistance≥500MΩ
Locking MethodM16*1.0 ThreadWorking Voltage125V
Number of Pins2/3/4/5/6/7 PinsTemperature Rise≤ 50℃
Mechanical Life500 timesWithstand Voltage1500V
Protection GradeIP 65Working Current5 A
Contact Resistance≤10MΩWorking Temperature-55℃ ~ +70℃
Product Images
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection

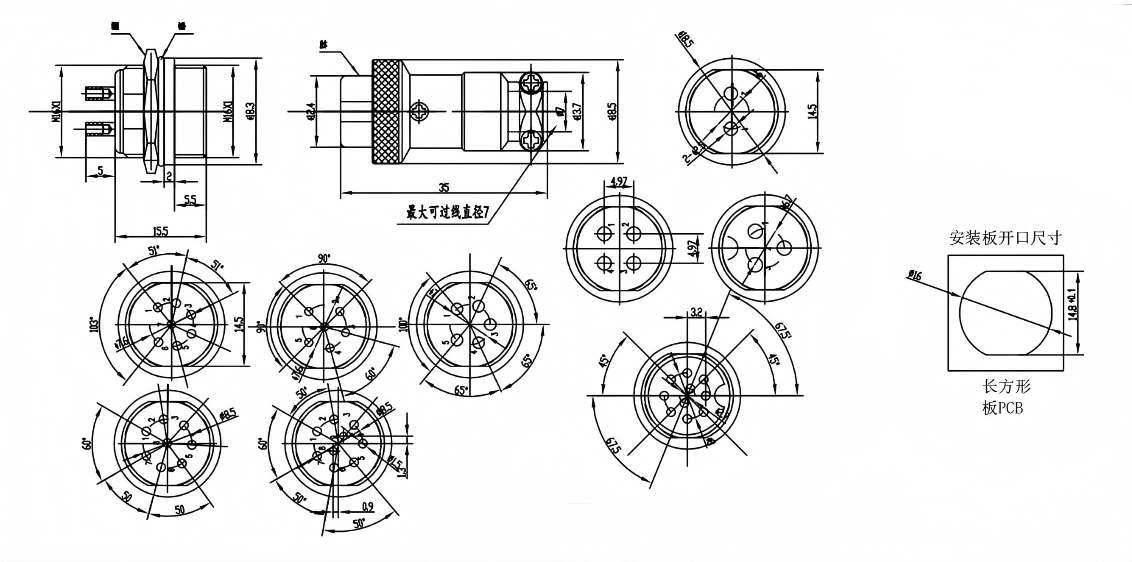

Product Dimensions
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Related Products
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Company Overview
Office Facilities
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Production Facilities
Machining Production Workshop
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Precision Assembly Production Workshop
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Glass-to-Metal Sealed Production Workshop
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Certifications
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Customer Visits
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
Packaging & Shipping
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
GX16-4 Pin Aviation Plug Connector with Aluminum Alloy Body, 1500V Withstand Voltage and IP65 Protection
  • Standard export carton packaging
  • Customized specifications available (logo, branding, etc.) according to customer requirements
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?

Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.

What are the main products of your company?

Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.

Does your company accept customized products?

We accept ODM (Original Design Manufacturing).

Does your company provide free samples?

We support free samples with freight paid on delivery.

What is the minimum order quantity of your company's products?

200 pieces. The price is more expensive for orders under 200 pieces.

Which logistics company does your company ship through?

Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. We also provide air and sea freight options.

How long does it usually take to receive the goods?

Generally, 3-8 working days for international express, 5-8 working days for air freight.

What payment methods does your company accept?

We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T).

How long is your warranty?

The warranty period is three months.
