GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Specifications
Brand Name :
ZSX
Model Number :
GX12-3
Certification :
ISO9001
Place of Origin :
China
MOQ :
50 pcs
Price :
Depending on the quantity
Payment Terms :
T/T,D/P,Western Union
Supply Ability :
1000000Pcs/Year
Delivery Time :
5-8 Days
Packaging Details :
Carton packaging
Name :
GX Series Connector GX12-3
Gender :
Male/female
Boday Material :
Aluminum alloy
Number of pins :
2/3/4/5/6/7
Working temperature :
-55℃~+70℃
Withstand voltage :
1500V
Description
1500V GX12-3 Pin Connector IP 65 Male And Female Connectors RS765-M12

GX Series Aviation Plug GX12-3 3 Pin Male And Female Connector

GX series aviation plugs are domestic circular locking connectors (National standard code GX, compatible with standards such as RS765), named "GX + outer diameter size" (For example, GX12 corresponds to an outer diameter of 12mm). According to the outer diameter size, the mainstream models are: GX8, GX12, GX16, GX20, and GX25 (corresponding to shell diameters of 8/12/16/20/25mm) are mainly used in industrial equipment, instruments and meters, and outdoor scenarios.

Product Performance Details
Product ModelGX12-3Contact PieceGold plating of copper
Shell MaterialAluminum alloyInsulation Resistance≥500MΩ
Locking MethodM12*1.0 ThreadWorking Voltage125V
Number of Pins2/3/4/5/6/7 PinsTemperature Rise≤ 50℃
Protection GradeIP 65Withstand Voltage1500V
Contact Resistance≤5MΩWorking Current5 A
Working Temperature-55℃ ~ +70℃Mechanical Life500 times

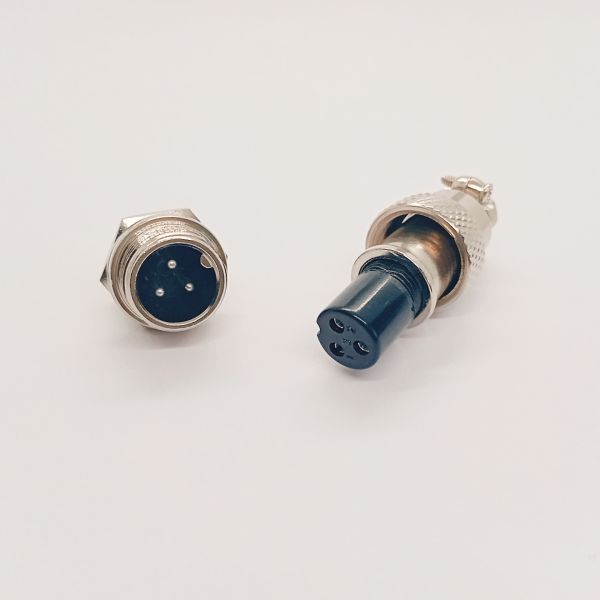

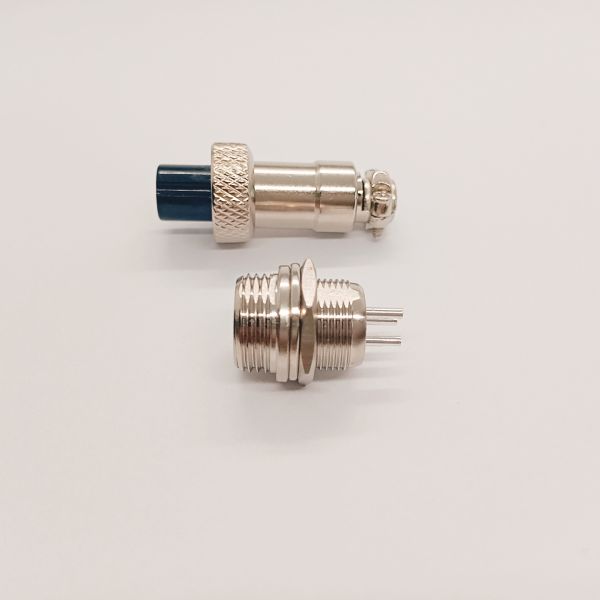

Physical Product Display
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Product External Dimensions
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Related Product Recommendations
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Company Strength Display
Office Area
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Production Plant Area
Machining Production Workshop
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Precision Assembly Production Workshop
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Glass-to-Metal Sealed Production Workshop
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Obtained Certification Certificates
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Customer Visits
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Product Packaging
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy BodyGX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
Packaging and Shipping
GX12-3 Pin Aviation Plug Connector with 1500V Withstand Voltage IP65 Protection and Aluminum Alloy Body
  • Standard export carton
  • Customized specifications such as logo or others according to customers' requirements
  • Delivery time: Within 24 hours for stocks, 3-4 weeks for mass production orders (based on different quantities, ODM, etc.)
Frequently Asked Questions
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing and sales of Aeronautics and Astronautics and commercial RF microwave transmission components.
Q: What are the main products of your company?
A: Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 pieces.
Q: Which logistics company does your company ship through?
A: Our company cooperates with international logistics companies DHL, UPS, FedEx, TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q: What payment methods does your company accept?
A: We accept L/C, T/T, Western Union, Trade Assurance (credit card & T/T)
Q: How long is your warranty?
A: The warranty period is three months.
