Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Specifications
Model Number :
2PM14J4Z2
MOQ :
10 pcs
Delivery Time :
5-8 Days
Payment Terms :
T/T,D/P,Alipay
Gender :
Male
Brand Name :
ZSX
Packaging Details :
Carton packaging
Working temperature :
-60℃~+200℃
Place of Origin :
China
Price :
$1.65-2.20 (Depending on the quantity)
Boday Material :
Metal
Supply Ability :
150000Pcs/Year
Name :
2PM Circular Connector
Certification :
ISO9001
Description
Circular Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
The 2PM14J4Z2 is a rugged 4-pin flange panel mount circular connector compliant with Russian standards, specially designed for fixed equipment panel installation in extreme industrial and harsh environments. Equipped with high-purity silver-plated copper contacts and high-strength temperature-resistant bakelite insulation, it ensures low contact resistance, stable conductivity and excellent anti-oxidation and anti-interference performance. The die-cast aluminu anodized housing provides superior anti-corrosion, anti-vibration and anti-impact ability, supporting reliable operation in a wide temperature range from -60℃ to +200℃, with 400V rated voltage and 5~10A rated current per pin. Adopting standard threaded locking structure for firm and stable docking, this connector guarantees long-term safe and continuous operation, widely applicable for power and signal connection of aerospace airborne devices, electronic systems and field industrial control equipment, with customized harness processing and specifications available.

Product display

Product Performance Details
Product model 2PM14J4Z2 Insulation resistance ≥1000MΩ (normal), ≥20MΩ (damp heat)
Ambient temperature
-60℃~+200℃(bakelite)
 Shock acceleration Once at 500g, multiple times at 100g
Vibration acceleration 10~5000Hz 50g Working voltage ≤560V
Contact current 5A Contact resistance ≤5mΩ

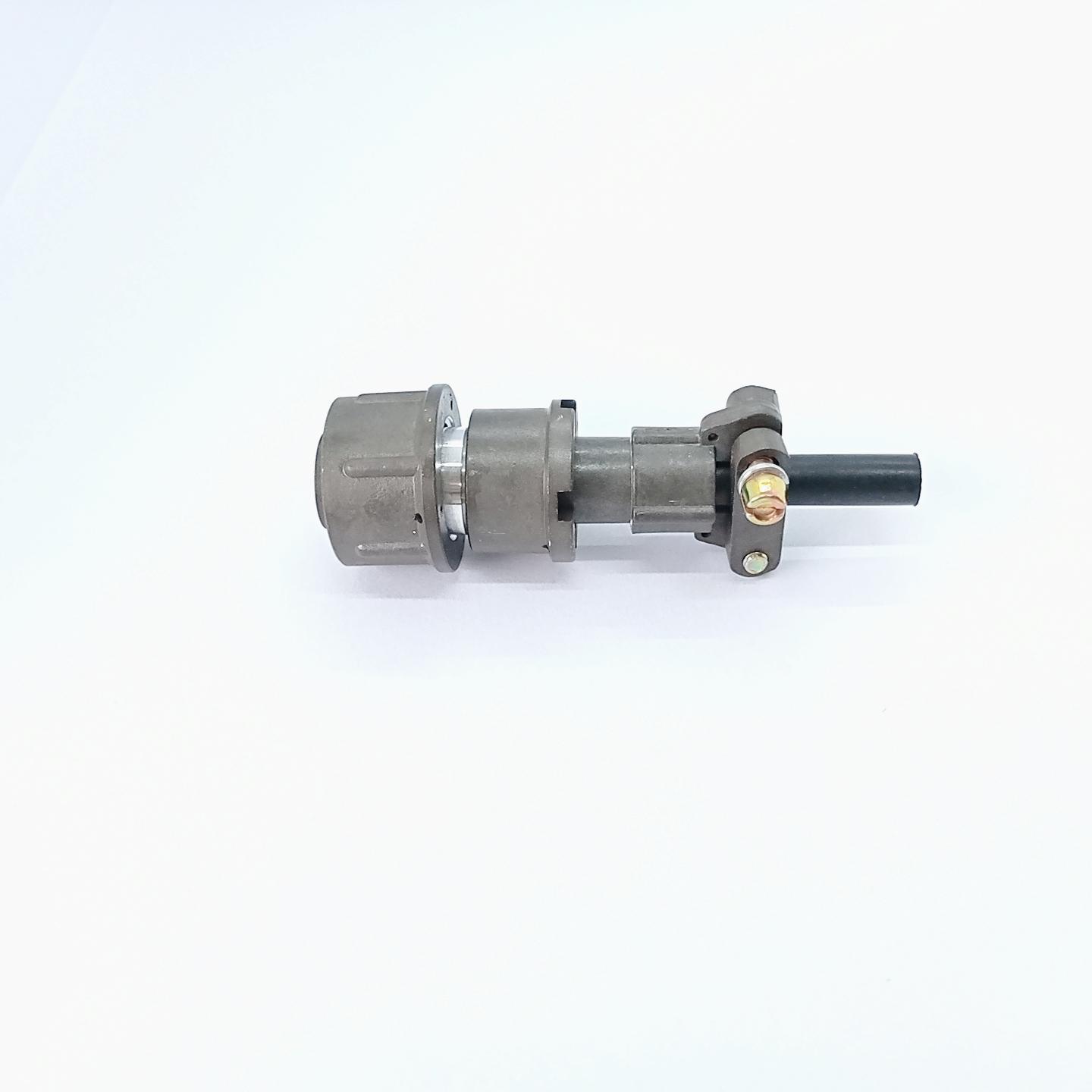

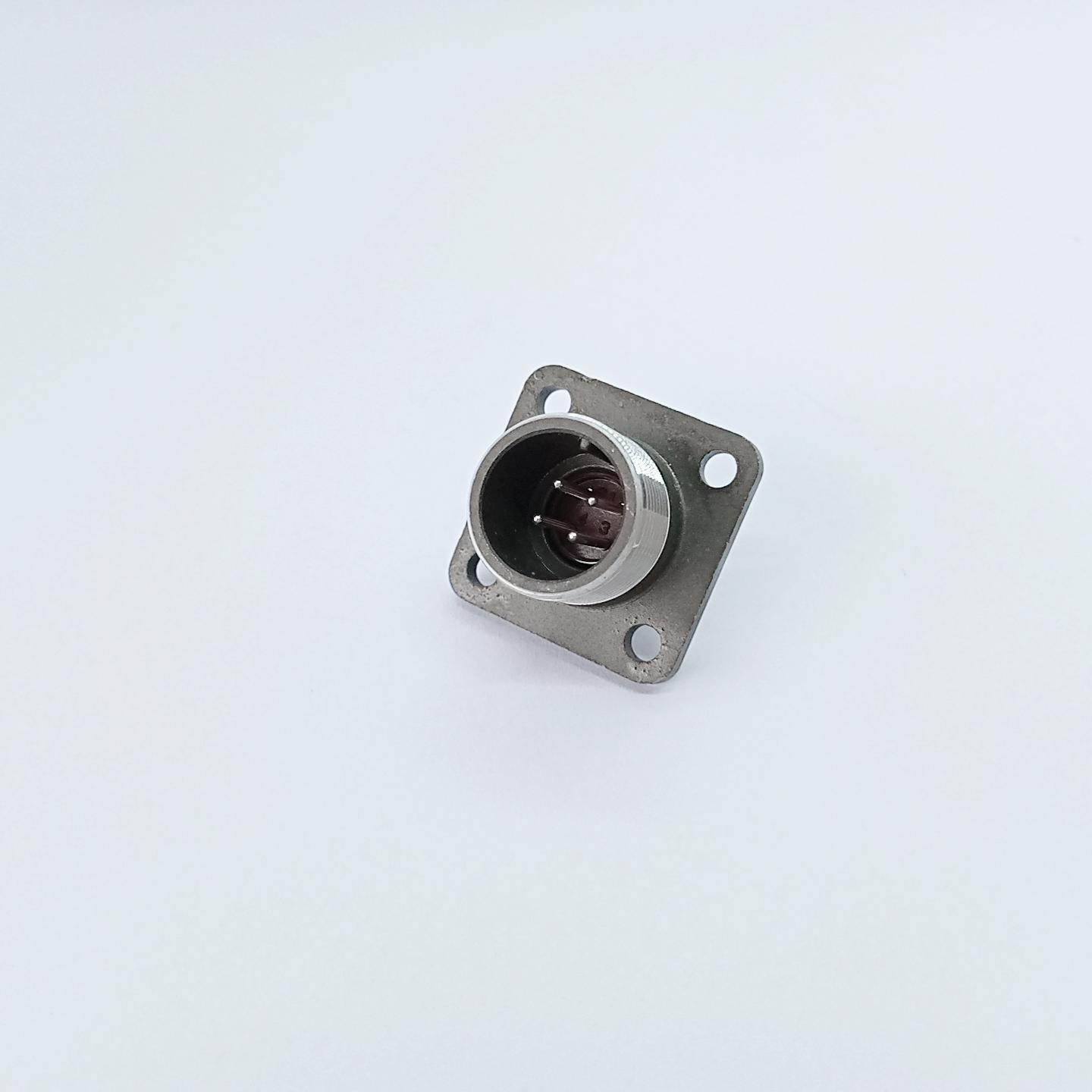

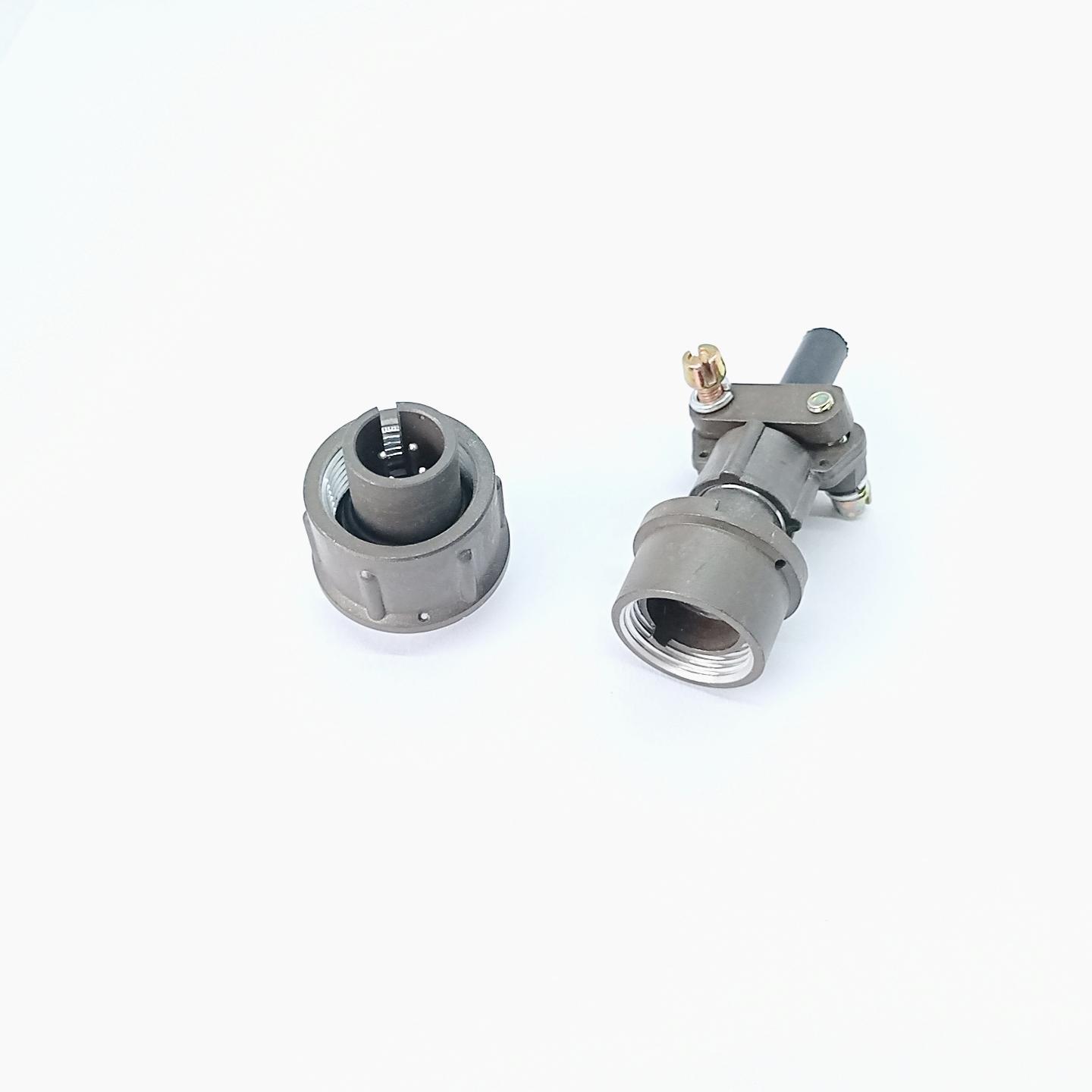

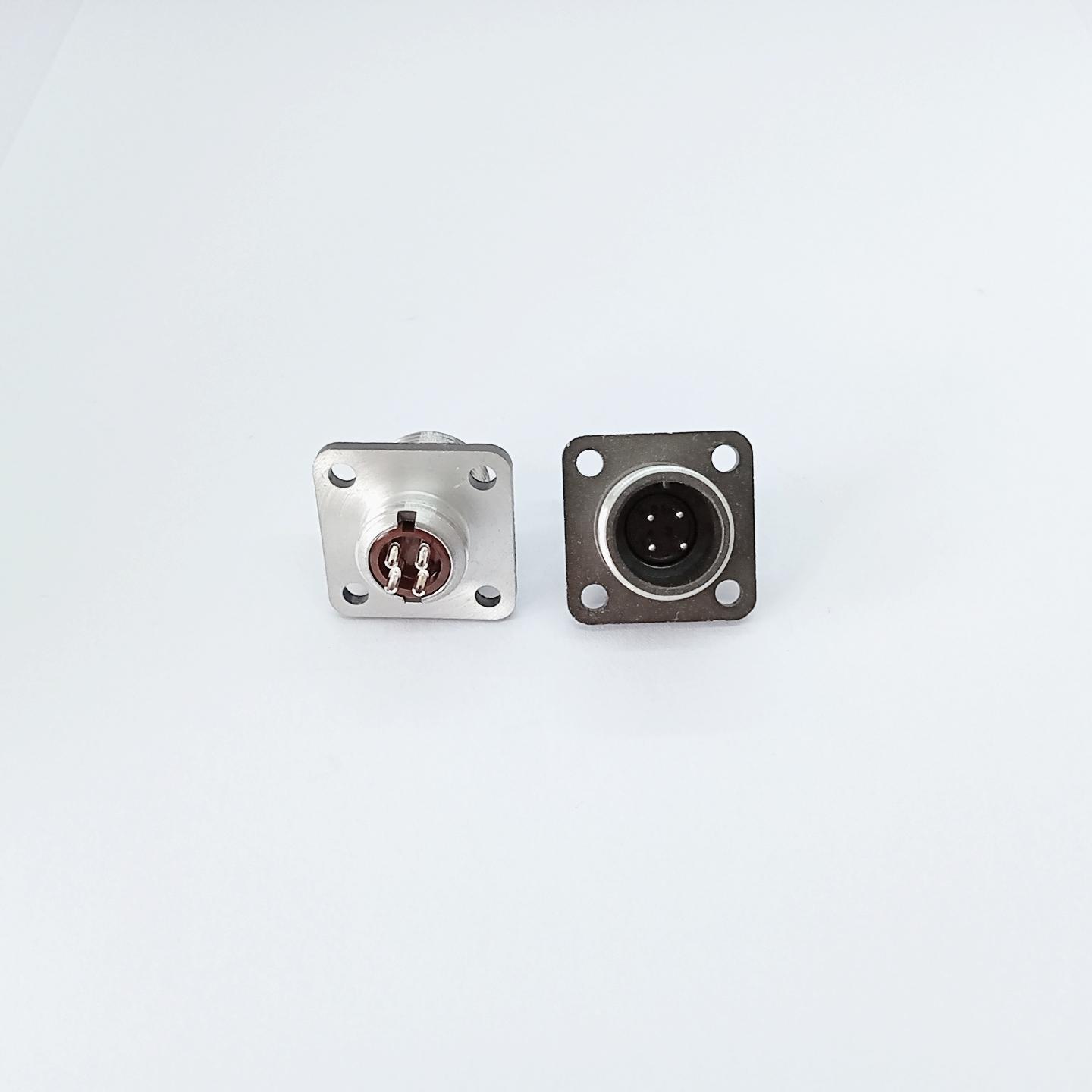

Physical product display
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector

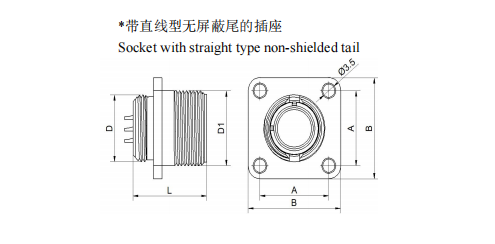

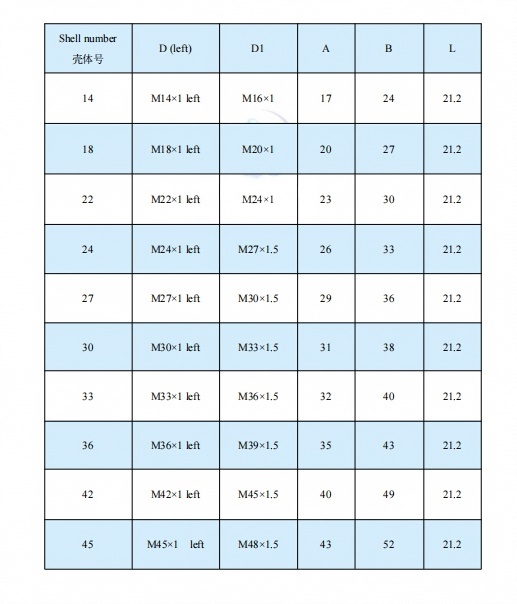

Product external dimensions
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector



Related product recommendati
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Display of Strength
Production Plant Area
Machining production workshop
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Precision Assembly Production Workshop
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Glass-to-metal sealed production workshop
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Obtained Certification Certificate
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Customer visit
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Product packaging
Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
Packaging and Shipping

  • Standard export carton Circular Aviation Plug Connector 2PM14J4Z2 4 Pin Flange Panel Mount Male Connector
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
