N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Specifications
Model Number :
N-KFD6
Price :
$1.80-$2.50 (Depending on the quantity)
Boday Material :
Nickel plated brass
Supply Ability :
1000000Pcs/Year
Name :
N Type Female Connector
Insulator material :
PTFE
MOQ :
10 pcs
Delivery Time :
5-8 Days
VSWR :
≤ 1.25
Payment Terms :
T/T,D/P,Alipay
Gender :
Female
Working temperature :
-45℃~+125℃
Brand Name :
ZSX
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Description
RF Connector N-KFD6 N Type Female 4-Hole Flange PCB Connector DC-6GHz
Product Overview

N-KFD6 is a standard N-type female flange-mount RF coaxial connector, designed for rear soldering on PCB circuit boards with DC to 6GHz wide frequency bandwidth and standard 50Ohm characteristic impedance. Equipped with square 4-hole fixing flange, it provides stable installation and strong vibration resistance, widely used in medium-power wireless communication equipment.

Technical Specifications
Parameter Specification
Product Model N-KFD6
Characteristic Impedance 50 ohm
Frequency Range DC-6GHz
Voltage Standing Wave Ratio ≤1.2
Medium Pressure Resistance ≥2500V RMS, 50Hz, at sea level
Contact Resistance Center contact: ≤1mΩ, Outer contact: ≤0.4mΩ
Dielectric Constant ≥5000MΩ
Body Material Gold-plated brass
Central Conductor Gold-plated brass
Insulator Material PTFE
Durability ≥500 Cycles
Temperature Range -45℃ to +125℃

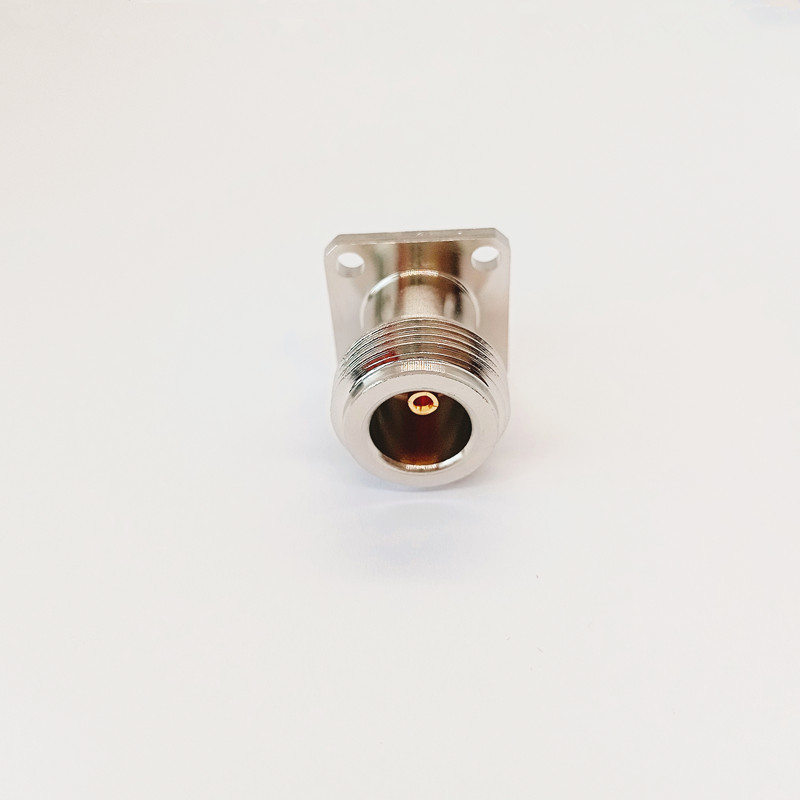

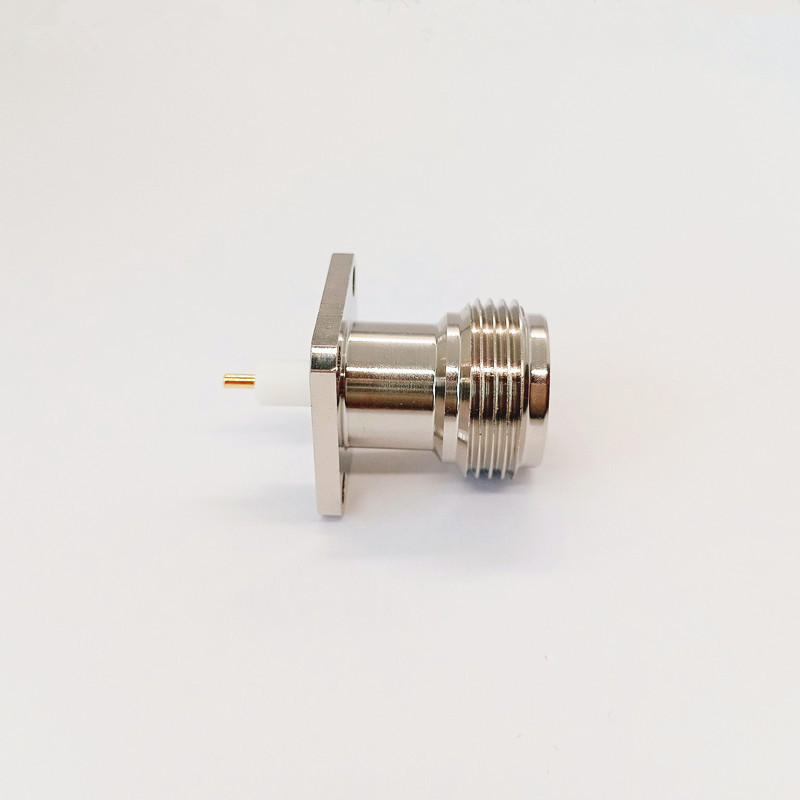

Product Images
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass

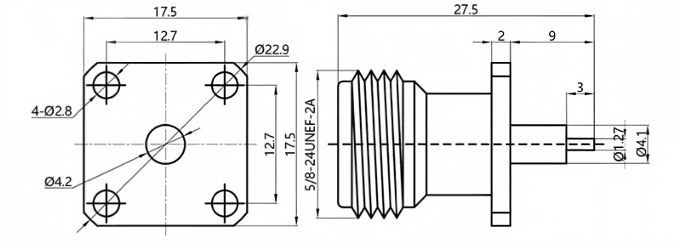

Product Dimensions
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Related Products
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Manufacturing Capabilities
Production Facilities
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Precision Assembly Workshop
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Glass-to-Metal Sealed Production
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Quality Certifications
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Customer Engagement
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
Packaging & Shipping
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
N-KFD6 N Type Female RF Connector with 4-Hole Flange for PCB Mounting DC-6GHz Nickel Plated Brass
  • Standard export carton packaging
  • Customized specifications available (logo, branding, etc.)
  • Delivery time: Within 24 hours for stock items, 3-4 weeks for mass production orders (varies based on quantity and ODM requirements)
Frequently Asked Questions
Are you a trading company or manufacturer?

Our company is a comprehensive manufacturer with 17 years of R&D, manufacturing, and sales experience in aeronautics, astronautics, and commercial RF microwave transmission components.

What are the main products of your company?

Main products include RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors, and other microwave products.

Does your company accept customized products?

We accept ODM (Original Design Manufacturer) services.

Does your company provide free samples?

We support free samples with freight paid on delivery.

What is the minimum order quantity of your company's products?

200 pieces. Pricing is higher for orders under 200 pieces.

Which logistics company does your company ship through?

We cooperate with international logistics companies including DHL, UPS, FedEx, TNT to ensure fast delivery with competitive shipping costs. Air and sea freight options are also available.

How long does it usually take to receive the goods?

Typically 3-8 working days for international express, 5-8 working days for air freight.

What payment methods does your company accept?

We accept L/C, T/T, Alipay, and Trade Assurance (credit card & T/T).

How long is your warranty?

The warranty period is three months.
