RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Specifications
Supply Ability :
1000000Pcs/Year
Name :
RF Cable Assembly
Model Number :
MMCX-JW/UF.L-RG178
Payment Terms :
T/T,D/P,Alipay
Gender :
Male to female
VSWR :
≤1.5
Price :
$1.50-$1.93(Depending on the quantity)
Boday Material :
Gold plated brass
Insulator material :
FEP
MOQ :
10 pcs
Delivery Time :
5-8 Days
Temperature range :
-20℃~+80℃
Certification :
ISO9001
Place of Origin :
China
Packaging Details :
Carton packaging
Brand Name :
ZSX
Description
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178

RF coaxial cable assembly features an angled MMXC male plug on one end and an IPEX/U.FL micro coaxial terminal on the other, constructed with high-performance RG178 silver-plated copper braided coax cable. It serves as a compact high-frequency signal jumper for wireless modules, IoT devices, Wi-Fi/Bluetooth antennas, GPS positioning equipment, and miniature RF communication hardware.

Product display

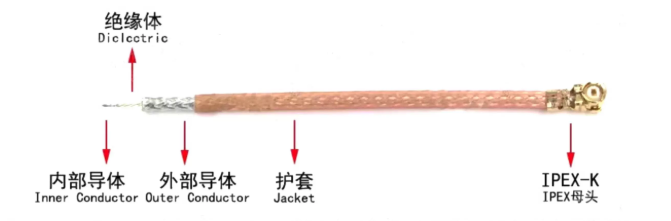

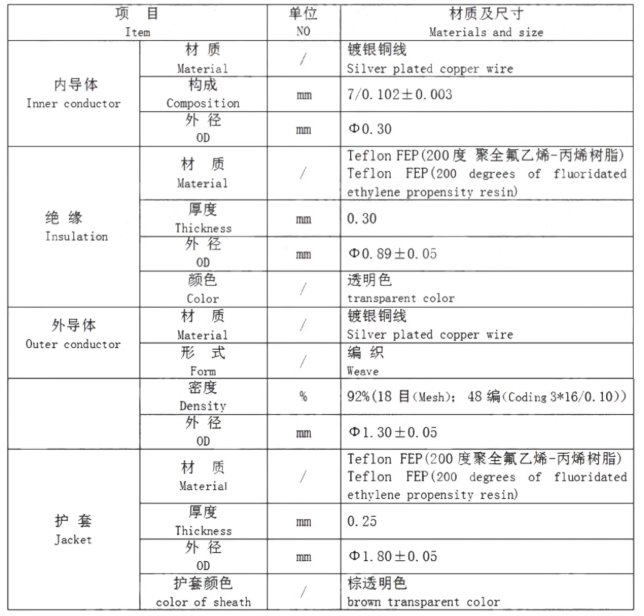

Product Performance Details
Product model MMCX-JW/UF.L-RF178 Bending radius 13mm
Inner conductor material Silver-plated copper wire Impedance 50±2
Insulating layer Polytetrafluoroethylene (PTFE) Frequency range DC-6G
Outer conductor Silver-plated copper wire Maximum operating voltage 1500VMS
Outer protective layer Perfluoroethylene-propylene copolymer (FEP) Maximum operating frequency 3000MHAz

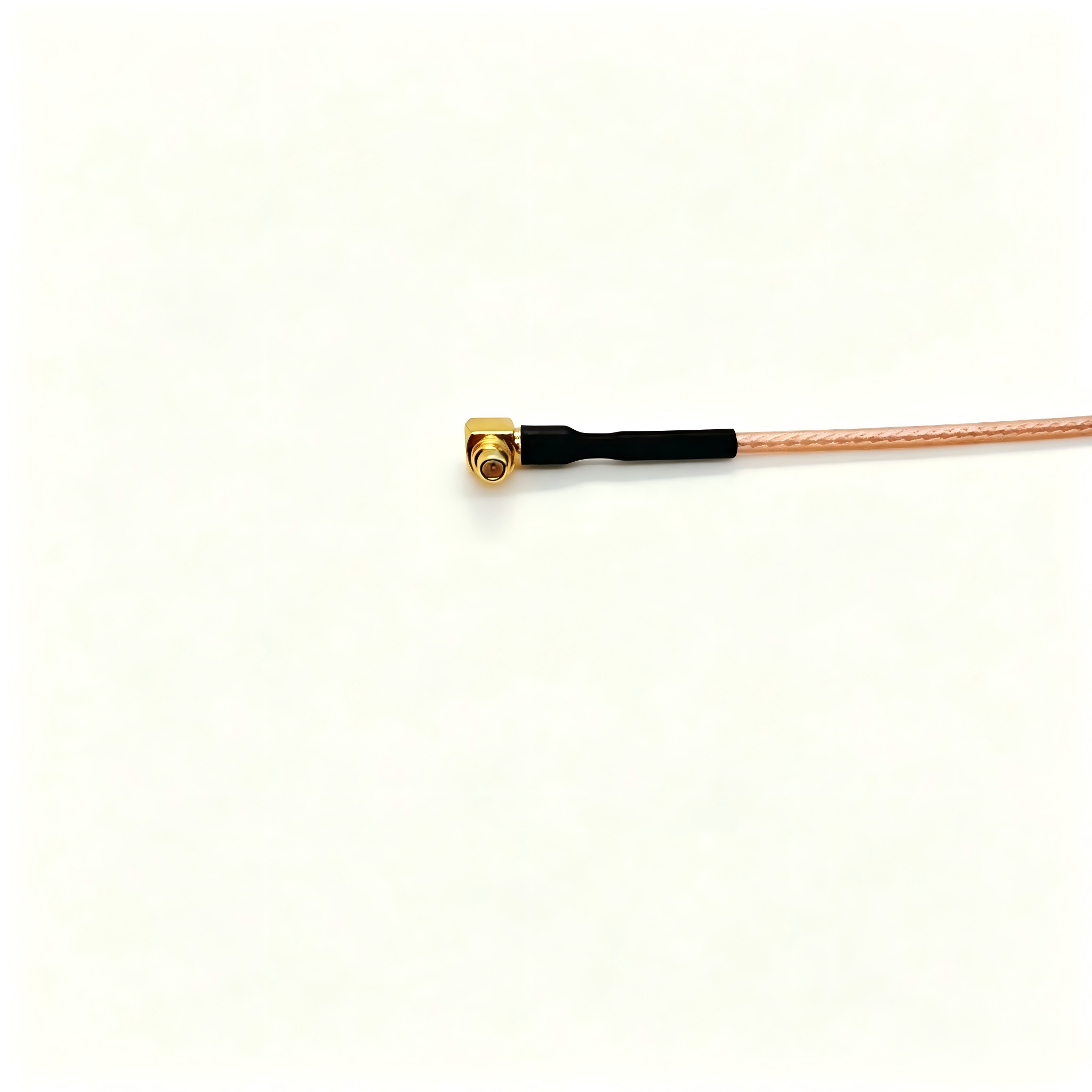

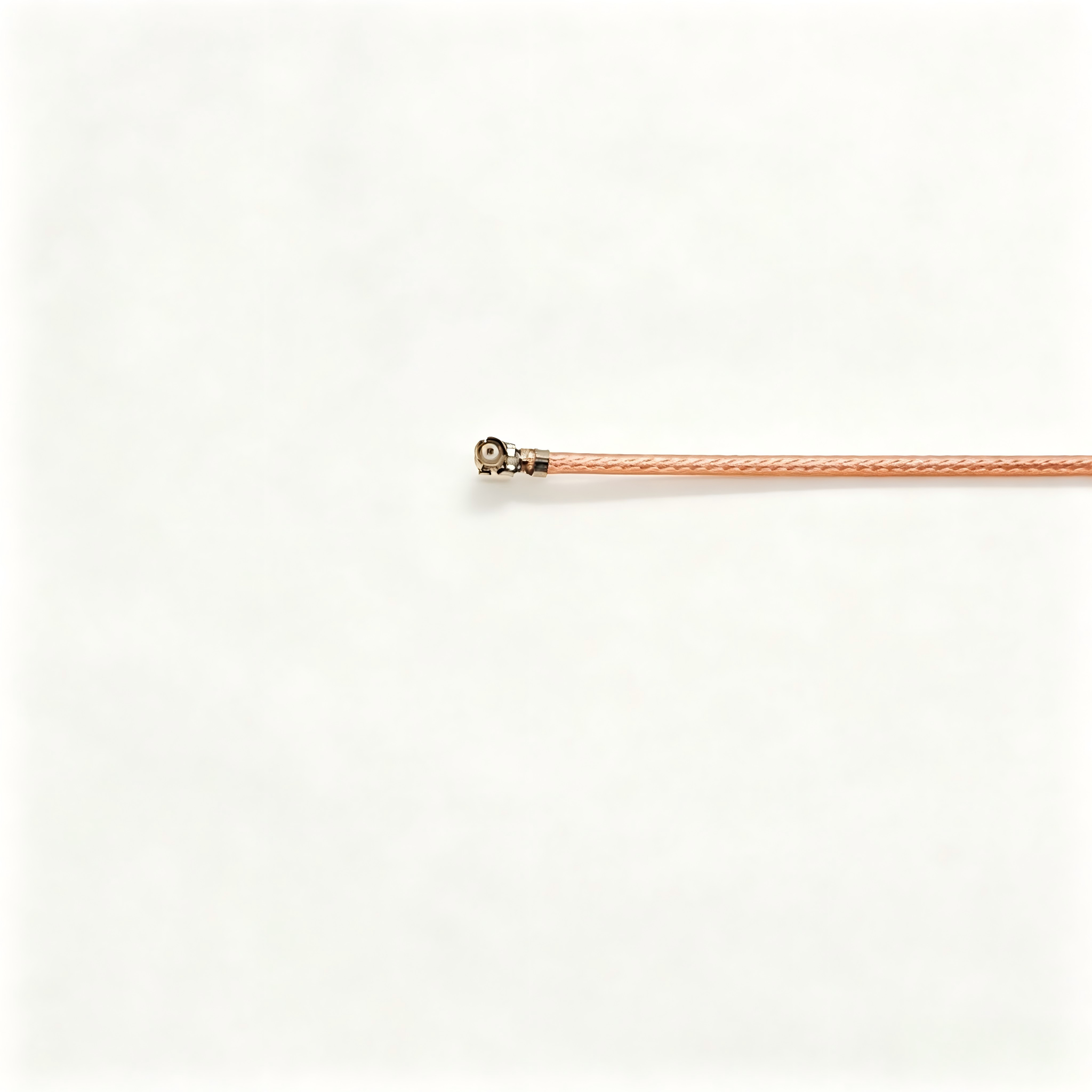

Physical product display
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178 RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178



RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178

RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178



Related product recommendations
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178 RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Display of Strength
Production Plant Area
Machining production workshop
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178 RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Precision Assembly Production Workshop
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178 RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Glass-to-metal sealed production workshop
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178 RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Obtained Certification Certificate
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Customer visit
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178 RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Product packaging
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178 RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
Packaging and Shipping
RF Cable Assembly MMCX Male To UF.L RF Jumper Cable MMCX-JW/UF.L-RG178
  • Standard export carton
  • As per customized specifications such as logo or others According to customers' requirements
  • Delivery time:Within 24 hours for stocks, 3-4 weeks for mass production orders. (based on different quantities,ODM, etc.)
FAQ
Q: Are you trading company or manufacturer?
A: Our company is a comprehensive manufacturer with 17 years of r&d, manufacturing and sales of aerospace and commercial RF microwave transmission components.
Q:What are the main products of your company?
A:Main products: RF coaxial connectors and adapters, RF cable assemblies, miniature rectangular electrical connectors and cable assemblies, coaxial waveguide converters and cable assemblies, glass insulator sealed connectors and other microwave products.
Q: Does your company accept customized products?
A: We accept ODM.
Q: Does your company provide free samples?
A: We support free samples with freight paid on delivery.
Q: What is the minimum order quantity of your company's products?
A: 200 pieces. The price is more expensive under 200 piece .
Q: Which logistics company does your company ship through?
A:Our company cooperates with international logistics companies DHL.UPS,FedexTX,TNT all year round to ensure our customers receive their goods quickly with the lowest shipping cost. There are also air and sea logistics.
Q: How long does it usually take to receive the goods?
A: Generally, 3-8 working days for international express, 5-8 working days for air freight.
Q:What payment methods does your company accept?
A: We accept L/C, T/T, Alipay, Trade Assurance (credit card &T/T)
Q: How long is your warranty?
A: The warranty period is three months.
