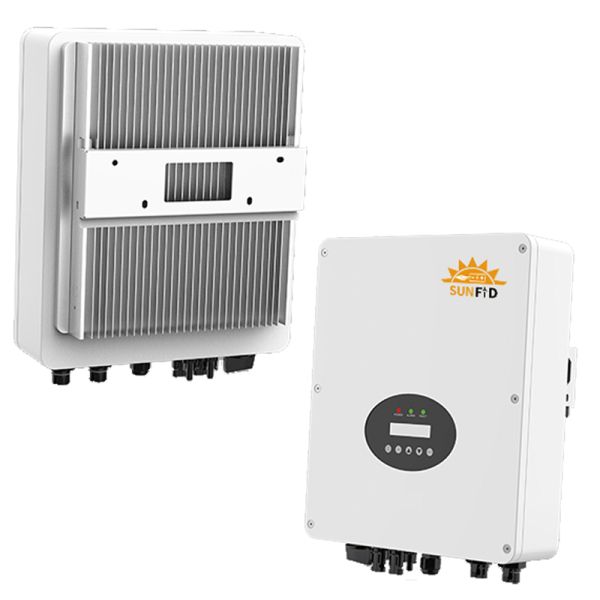

PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
Specifications
Brand Name :
Silk
Model Number :
SFD-PI3K
Certification :
CE,FCC
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs
Delivery Time :
10-30 Days
Packaging Details :
Carton
Product name :
Pure Sine Wave Solar Power Pumping Inverter
Output Power: :
3000W
Max.Output Current :
8A
AC Output Voltage :
380Vac\3PH
Application :
Solar System, Home Power System, Solar Pumping
Efficiency :
95%
Description

3KW Solar Pump Inverter with MPPT 2 DC Inputs for Solar Power System PV Agricultural Systems

Solar Pump Inverter Characters

1. Easy configuration with solar panels by MC4 terminals, plug and play.
2. Fully automatic intelligent operation, safe and stable, to prevent drainage and overflow.
3. Protection class IP65, waterproof and dust-proof, suitable for harsh environments.
4. Interface visualization, LCD screen and LED status indicator display.
5. Maximum efficiency up to 97%, MPPT efficiency up to 99%.
6. Supports GPRS-RS485 (optional) monitoring.PV Agricultural Systems 3KW Solar Pump Inverter With MPPT 2 DC Inputs
7. In-line design, AC aviation anti-stay plug, installation is fast and convenient.

Solar Energy System Pumping InverterParameters:

Model SFD-PI3K
Input(DC side)
Max DC Voltage(Vdc) 900Vdc
Start-up Voltage (Vdc) 250Vdc
Max Input Current (A) 12.5A
MPPT Operating Range(Vdc) 450Vdc-750Vdc
Number of Inputs 2
Output(AC side)
Rated Output Power(W) 3000W
Max Output Current (A) 8A
AC Output Voltage(Vac) 380Vac3PH
Output frequency (Hz) 0～50/60Hz
Other Parameters
Noise typical[dB(A)] <45dB(A)
Cooling Concept Natural cooling
Operating Temperature(℃) -25℃~+60℃
Protect Level IP65
Communication GPRSIRS485
Dimension(W*H*D mm) 410*346*160mm
Weight (Kg)REF 12Kg
