12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
Specifications
Brand Name :
Silk
Model Number :
OK3SL10ABMS
Certification :
CE,FCC,MSDS,ROHS,UN38.3
Place of Origin :
China
MOQ :
50pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000 pcs per month
Delivery Time :
5-10 Days
Packaging Details :
Hard Paper Carton with Foam or Wooden case
Base Material :
FR-4
Min. Hole Size :
0.2MM
Min. Line Width :
0.1MM
Min. Line Spacing :
0.1MM
Board Size :
34x34x1.2MM
Over Charge Protection :
Yes
Description

Lithium Battery BMS 3S 12V 100Ah 18650 10A BMS Balancing Assembly Pcb for Lithium Battery

Overview
Quick Details
Model Number: OK3SL10ABMS
Place of Origin: Guangdong, China
Brand Name: OKTANMAX
Base Material: FR-4
Copper Thickness: 1oz
Board Thickness: 1.2MM
Min. Hole Size: 0.2MM
Min. Line Width: 0.1MM
Min. Line Spacing: 0.1MM
Surface Finishing: HASL Lead Free
Board Size: 34x34x1.2MM
Over Charge Protection: Yes
Over Discharge Protection: Yes
Over Current Protection: Yes
Short-circuit Protection: Yes
Sample/oem/odm: Acceptable
Certificate: ISO9001/ROHS
Product Name: Printed Circuit Board
Application: Consumer Electronics
Packaging & Delivery
Selling Units: Single item
Single package size: 4X4X2 cm
Single gross weight: 0.040 kg

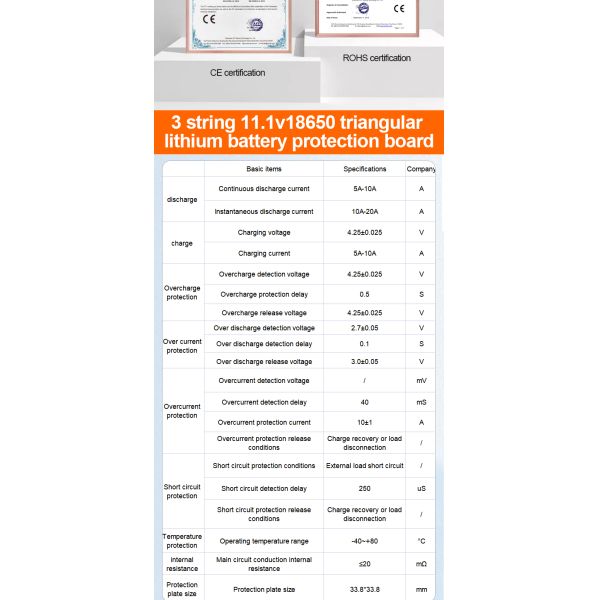

Specification

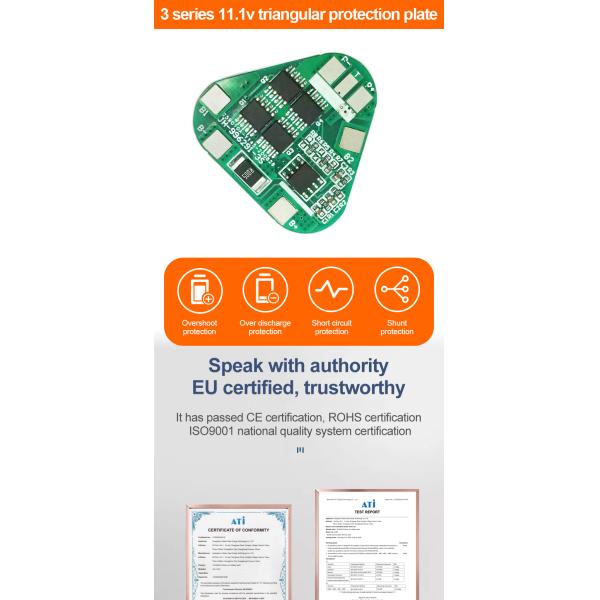

Product Name 3S 11.1V Triangular BMS
Scope of Use 3S
Size 34x34x1.2MM
Overcharging Detection Votage 4.25V
Overdischarging Detection Votage 2.7V
Certificate RoHS/ISO9001
Continuous Working Current 5-10A
Peak Current 20A

12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery

12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery

12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery

12V 100Ah 18650 BMS 3s 10A Balancing Assembly Pcb For Lithium Battery
