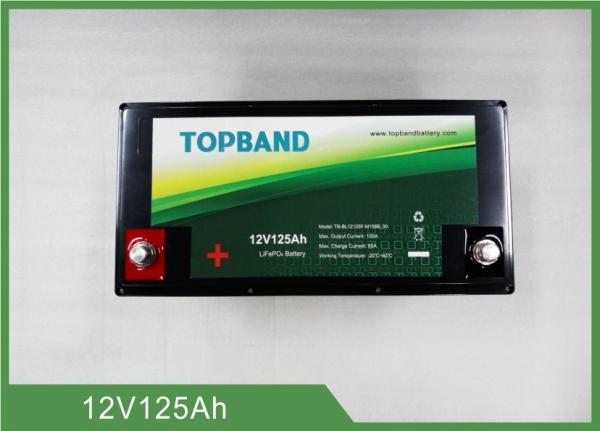

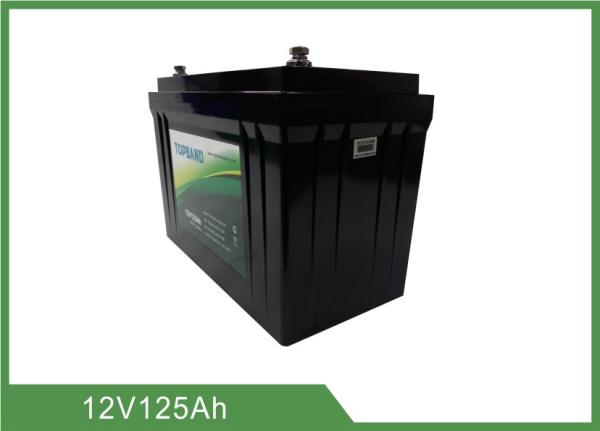

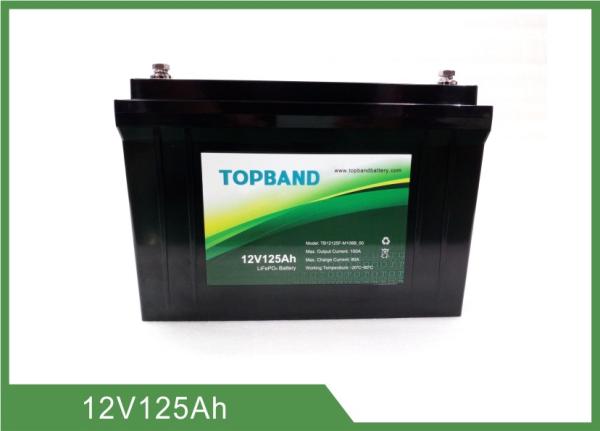

12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
Specifications
Brand Name :
Topband Lifepo4 battery
Model Number :
TB12150F
Certification :
CE, ISO9001, ISO14001
Place of Origin :
China
MOQ :
50
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
450Mwh/year
Delivery Time :
2~4weeks for samples; 4~6weeks for mass production
Packaging Details :
standard export carton for 125Ah 12 volt rv battery deep cycle
Items :
125Ah 12 volt rv battery deep cycle
Type :
LifePo4 battery
Normal Capacity :
125Ah
Internal Resistance :
≤20mΩ
Weight :
appr. 15.2KG
Application :
RV Camper Vans/ Caravans/Camping cars
Output Voltage Range :
8.0~14.6V
Warranty :
2years
Size(LxWxH) :
318*165*215mm
housing :
Black plastic housing(standard color)
Keywords :
12 volt rv battery deep cycle, rv battery 12V 125Ah
Protecton :
built-in BMS with protection function
Standard charge current :
80A
Maximum discharge current :
95A @30mins
Certificate :
CE certification
Parallel connection :
Max 4pcs
Description

12 Volt RV Camper Battery Deep Cycle Lithium Battery 12V 125Ah Lifepo4 Battery

1. The Features of 12 Volt RV Camper Battery Deep Cycle Lithium Battery 12V 125Ah Lifepo4 Battery :

  • Output with high efficiency
  • Good performance under wide temperature -20-60℃.
  • Good safety performance
  • Long cycle life time, over 2000 cycle times(100%DOD).
  • Fast charging.
  • Low self-discharge.
  • Evironment friendly.


2. The Specification of 12 Volt RV Camper Battery Deep Cycle Lithium Battery 12V 125Ah Lifepo4 Battery

* Max parallel connection: Max 4pcs

1 Nominal Voltage 12.8V
2

Normal Capacity

Minimum capacity

125Ah

119Ah
3 Internal Resistance ≤20mΩ
4 Battery operation charge temperature range 0~45℃
5 Normal charge voltage 14.6±0.1V
6 Recommended float charge voltage(for Standby use) 13.8±0.1V
7 standard charge current 50A
8 Maximum charge current 85A
9 Battery operation temperature range @discharging -20~60℃
10 Output Voltage Range 8.0~14.6V
11 Maximum discharge current 95A
12 Pulse discharge current 350A/Continuous for 2s
13 Discharge Cut-off voltage 8.0V
14 Dimension Length 318±2mm
Width 165±2mm
Height 215±2mm
15 Weight Approx. 15.2Kg
























12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery

IF ABOVE SPECS AND DIMENSTIONS IS NOT OKAY FOR YOU, WE ALSO HAVE OTHER ITEMS, PLEASE FREELY SEND US YOUR INQUIRY, SUCH AS 12V 100Ah, 12V 200AH, 12V 22AH Lifepo4 battery pack for options.

12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery


2. The dimension of 125Ah 12 volt rv battery deep cycle

12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
3. Protective circuit specification
The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

NO. Items Content Specification
5.1 Over charge Over-charge protection for each cell 3.75±0.025V
Over-charge release for each cell 3.60±0.025V
Over-charge release method Under the release voltage
5.2 Over discharge Over-discharge protection for each cell 2.50±0.05V
Over-discharge release for each cell 2.80±0.05V
Over-discharge release method Charge to recovery
5.3 Over current Discharge over current protection 300A～420A
Protection delay time 0.8S~1.2S
Over current release method Delay about 30S after recovery
5.4 Short circuit Do not short-circuit the electrodes Designed For 600A /500us
5.5 Battery temperature Charge over temperature Protection @65±5℃
Release @50±5℃
Discharge over temperature Protection @65±5℃
Release @50±5℃
Charge low temperature protection Protection @-10±5℃
Release @0±5℃
MOSFET over temperature protection Protection @103±10℃
Release @75±10℃


4. Storage & Transportation

  • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
  • Battery should be stayed in the warehouse -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.
  • The battery should be stored in 50% SOC during transportation.
  • The battery need to be charged every 6 months if out of use.
  • Keep the battery against dropping, turning over and serious stacking during loading


5. The Application of 125Ah 12 volt rv battery deep cycle: RV Caravans, Camping cars, Automotives, Sailing, Marine and boats,etc.


12 Volt RV Camper Battery 125Ah Normal Capacity Deep Cycle Lithium Battery
