48V Rechargeable High Power Li Ion Battery Charger For Electric Vehicle
48V Rechargeable High Power Li Ion Battery Charger For Electric Vehicle
Specifications
Name :
High Power Lithium Ion Battery
Model :
48V/200AH
L x W x H :
510mmX375mmx220mm
Working temperature :
-20°C ~ 60°C
Working current :
150A
Applications :
AGV vehicles, lawn mowers, sightseeing vehicles, sweepers, golf carts,etc.
Place of Origin :
Changsha, China
Brand Name :
HYZZ
Certification :
ISO9001, CE, CB, UN38.3
Packaging Details :
foam, wooden box / foam, carton, tray
Delivery Time :
22 days
Payment Terms :
L/C, T/T
Supply Ability :
10,000 PCS per month
Description

48V Rechargeable High Power Li Ion Battery Charger For Electric Vehicle

Model: 48V/200AH

Specification L x W x H: 510mmX375mmx220mm

Parameters: working temperature -20°C ~ 60°C, lithium iron phosphate battery, Anderson connector, RS485 communication, continuous working current 100A, instantaneous maximum current 150A, charging upper limit 54V, discharge lower limit 36V, cold rolled plate shell, spray plastic

Applications: AGV vehicles, lawn mowers, sightseeing vehicles, sweepers, golf carts, sweepers, ships, power

environmentally friendly backup power system focus on short-time and high-rate
discharge scenarios.The environmentally friendly lithium ion battery configured with high-performance BMS, has a
wide range of performance and application advantages compared with conventional battery.

Advantages

1. It is high integrated with less installation space.

2. Long life cycle, >3000 times at 80% DOD.

3. It without heavy metals and environment friendly.

4. Maintenance free,there is no memory effect.

5. Internal BMS with full protection,battery has high voltage protection with higher reliability.

Safety

Passed the below abuse and safety test-short-circuit, dropping, nail penetration, impact, crush, thermal shock, over-charge,over-discharge: no fire, no explosion with stable chemical structure.

 Number HY.NO0002
Version A0

HYLF/48/200-001

Battery pack specification

Date

2019-5-8
1．Basic characteristics

Product picture

Product name

Lithium battery pack

product code

 HYLF/48/200-001
L x W x H 510mmX375mmx220mm
Rated voltage 48V
Rated Capacity 200AH
Serialization 2P15SAluminum shell

Internal resistance

 ≤120mΩ
Discharge cutoff voltage 36V

Shell color

☑ Matt black

□ Bright gray

□ Fruit green + bright gray (two colors)

□ Stainless steel

Charging and discharging interface

□ Wall terminal

☑ Anderson

□ Air plug

□ Positive and negative lines

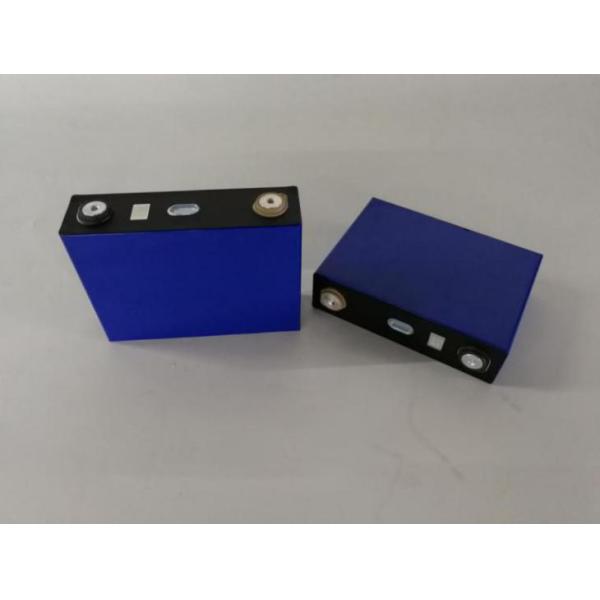

Batteries:3.2v/100Ah

48V Rechargeable High Power Li Ion Battery Charger For Electric Vehicle
Charging protection voltage 54V

Max.charging voltage

54.75V

Max. charging current

40A 0.2C

Max. sustained discharge current

100A

Peak current

 150±3A 2S

Rated discharge current

 100A
Charging method CC/CV

Cell discharge curve

48V Rechargeable High Power Li Ion Battery Charger For Electric Vehicle

weight

 75.0Kg

Operating temperature

Charging

 0～45℃

Discharge

 -20～45℃

60-80%SOC , 2 Storage temperature 60-80% SOC storage, need to recharge every 2 months

-10～35℃

C1 Cycle life

1500 Times
price RMB:¥ 00.00

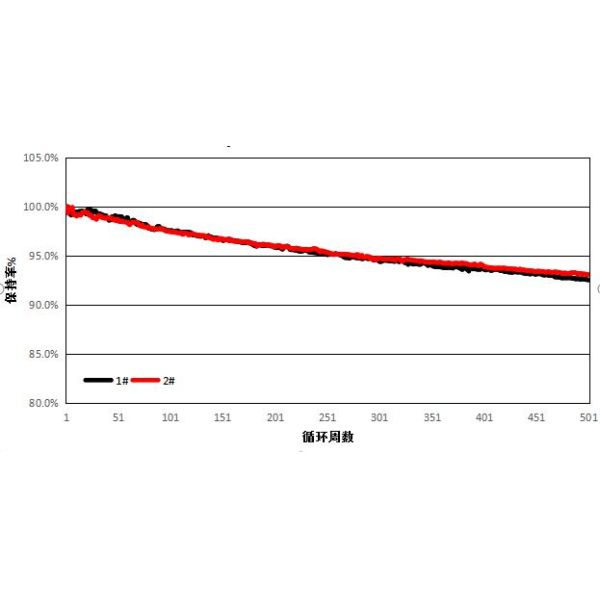

Cycle graph

Delivery period

25 Working day

 48V Rechargeable High Power Li Ion Battery Charger For Electric Vehicle
