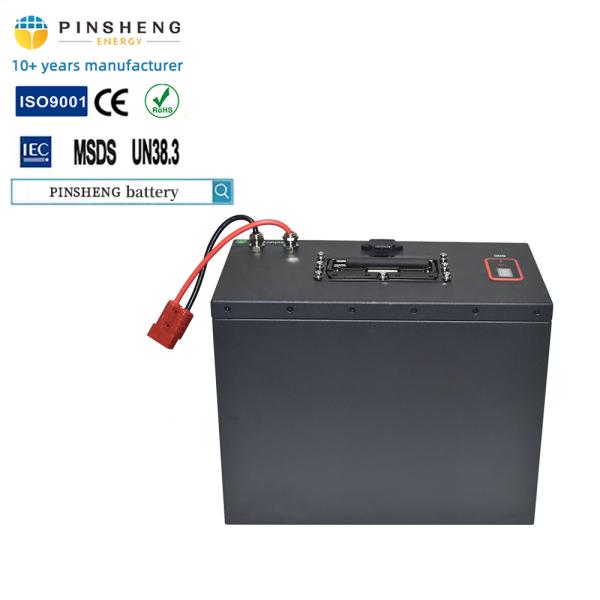

72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
72V 30AH 3000 Wh Deep Cycle Lithium Ion Battery Pack for Electric Bicycles and Scooters
Specifications
Brand Name :
PINSHENG ENERGY
Model Number :
PE7230
Place of Origin :
Hunan, China
MOQ :
2
Price :
$439-485
Rated voltage :
72V
Rated Capacity :
30AH
Size :
300*220*170MM
Charging voltage :
84V
Discharge voltage :
56V
Charging current :
30A
Discharge current :
30A
Operating Voltage :
84V-56V
Operating temperature :
20-60°C
Anode Material :
NCM
Charging ratio :
1c
Discharge rate :
2c
Electric Energy :
3000 Wh
Cycle life :
3500 times 80%dod
Self Discharge :
≤3% per month
Description
Product name
High Capacity 72V 50Ah Electric Motorcycle Lithium Battery LifePO4 Battery 3KW Motor
Model number
PE7250
Weight
36KG （73lbs）
Size
Can be customzied (L*W*H)
Nominal Voltage
72V
Nominal Voltage
50Ah 75Ah 80Ah 100Ah
Charge Voltage
79V - 87.6V
Components
24/23S 2P or 1P
Peak Discharge (8 Seconds)
200A
Continuous Charge / Discharge Rate
50A 100A
Capacity (amp hours)
50AH
Capacity (watts)
3600W
Chemistry
Lithium Iron Phosphate (LiFePO4) Cell
Cycle life
3500 times 80%dod
Depth of Discharge
100% DOD
Self Discharge
≤3% per month
Cell Type
Prismatic or Pouch cell LifePO4 Type
Modular
Parallel Connection or Series Connection
Connector
Aderson Connector with Cable
Display
Voltage V /Capacity % with button available
Discharge TemperatureCharge Temperature
Storage Temperature
Water Dust Resistance
0℃ to 45℃(32℉ to 113℉)20℃ to 60℃(-4℉ to 140℉)
0℃ to 45℃(32℉ to 113℉)
IP56 or IP67 available
BMS Function
Battery Protection Management SystemAutomatic Low Voltage Disconnect
Short Circuit Protection
Over Voltage Protection Over Current Protection
Over Charge Protection Over Discharge Protection
Over Temperature Protection Internal Cell Balancing
Company Profile
Pinsheng Energy with R&D located in Changsha City, Hunan Province, near to Guangzhou. It is a High-Tech Enterprise with 4,000 square meters workshop and 121 staffs. Pinsheng Energy focus on developing and producing Lithium battery and battery system integration, after many years development and research, we have formed a complete industry chain from research, production to sales. Our lithium battery has the characteristics of longer cycle life, more higher security and more reliability, higher energy density and other superior performance. Our products are widely used in energy storage system such as off grid wind & solar energy storage, telecommunication system, UPS and etc and power system such as electric motorcycles, electric bikes, E- scooter, electric tricycles, golf cart, fork lift,electric vehicles etc. Pinsheng Energy Battery products has a good reputation in China and abroad, it has strict quality guarantee system to ensure high-quality products. Pinsheng Energy put customers' needs at the first and listen to their suggestions. We will continuously improve our product quality and services. Pinsheng Energy is edicated to be a top OEM &ODM lithium battery manufacturer in the world.
