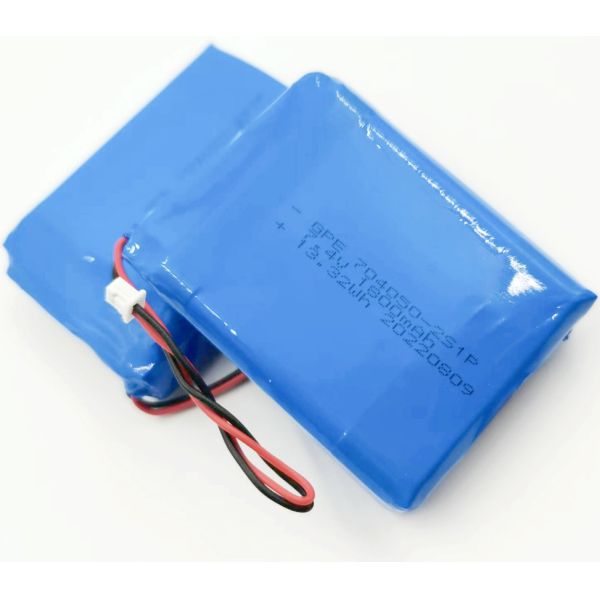

704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
704050 7.4V 1800mAh 500times Cycle Life Custom Lithium Polymer Battery Pack for Detective Device
Specifications
Model Number :
704050
Certification :
UN38.3, MSDS, IEC62133, RoHS
Place of Origin :
China
MOQ :
2000pieces
Payment Terms :
T/T
Supply Ability :
50'000Pieces daily
Delivery Time :
within 15days
Packaging Details :
Bulk packing
Nominal Voltage :
7.4V
Nominal Capacity :
1800mAh
Cycle Life :
500 times
Dimensions :
14*40*53mm
Weight :
70g
Discharge Current :
1800mA
Description
704050 2S1P Custom Lithium Polymer Battery Packs, 7.4V 1800mAh Lipo Battery Pack
Product Specifications
No Item Performance Remarks
1 Rated Capacity 1800mAh 0.2C5A Standard discharge
2 Minimum Capacity 1750mAh 0.2C5A Standard discharge
3 Normal Voltage 7.40V Mean Operation Voltage
4 O.C.V 7.40～8.20V
5 Limited charging voltage 8.40V
6 Discharge cut-off voltage 5.5V
7 Standard charging method 0.2C5A constant current charge to 8.4V, then constant voltage 8.4V charge till charged current declines to ≤ 0.01C5A
8 Charging Time Standard charge: 5.5～6.5 h
Rapid charge: 1.5～2h		 0.2C5A
1.0C5A
9 Maximum charge current 1800mA 1.0C5A
10 Standard discharging Current 360mA 0.2C5A
11 Maximum discharge current 1800mA 1.0C5A
12 Impedance ≤240 mΩ
13 Battery weight Approx. 70g
14 Assembled Mode 2S
15 Operating environment Charging: 5℃～45℃
Discharging: -10℃～60℃
60±25% R.H.
16 Storage Temperature -20~25℃
Storage humidity: 60±25% R.H.
<1month: -20°C ~ +40°C
<6months: -20°C ~ +30°C		 Spare battery within six months to recharge the battery to activate at least once
Available Models

Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacity range from 20mAh to 5000mAh to meet your different application requirements.

Model Cell Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7V 1200mAh
656090 6.5*60*90mm 6.5*60*92.5mm 3.7V 5000mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh
855465 8.5*54*65mm 8.5*54*65mm 3.7V 4000mAh
863040 8.6*30*40mm 8.8*30*42.5mm 3.7V 1000mAh
904060 9*40*60mm 9.2*40*62.5mm 3.7V 2500mAh
883760 8.8*37*60mm 9*57*51.6mm 3.7V 2000mAh
103048 10.2*30*48mm 10.2*30*50.5mm 3.7V 1500mAh
103040 10.2*30*40mm 10.2*30*42.5mm 3.7V 1200mAh
114261 11*42*61mm 11*42*63.5mm 3.7V 3400mAh
122773 12*27*73mm 12*27*75.5mm 3.7V 2400mAh
