14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
Specifications
Model Number :
LP505068 4S1P li polymer battery
Certification :
UN38.3, MSDS, IEC62133, RoHS
Place of Origin :
China
MOQ :
1000pieces
Payment Terms :
T/T
Supply Ability :
10'000Pieces daily
Delivery Time :
within 25days
Packaging Details :
Bulk packing
Voltage :
14.8V
Capacity :
2100mAh
Cycle life :
500times

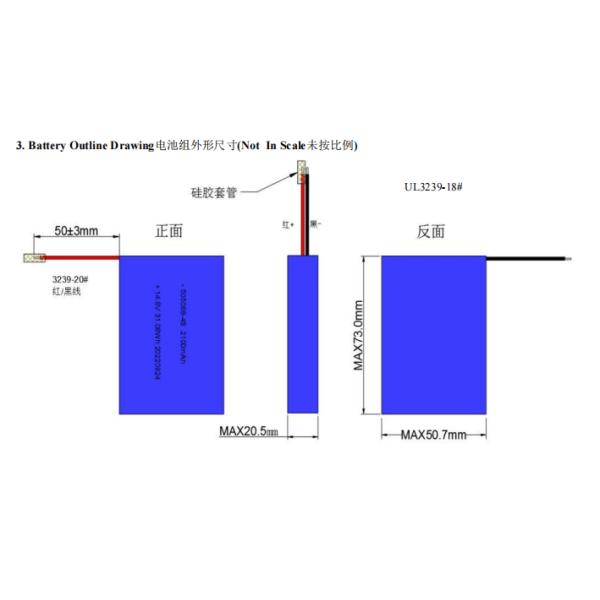

Dimensions :
20*50*70mm
Weight :
100g
Discharge cut-off :
12V
Description
14.8V 505068 4S1P Lithium Polymer Battery Pack 2.1Ah For Detector
Product Overview

Custom rechargeable lithium polymer battery pack 14.8V 2100mAh LiPo battery designed for detector applications.

Technical Specifications
No Item Performance Remarks
1 Rated Capacity 2100mAh 0.2C5A Standard discharge
2 Minimum Capacity 2100mAh 0.2C5A Standard discharge
3 Normal Voltage 14.80V Mean Operation Voltage
4 O.C.V 14.80～16.4V
5 Limited charging voltage 16.80V
6 Discharge cut-off voltage 12V
7 Standard charging method 0.2C5A constant current charge to 16.8V, then constant voltage 16.8V charge till charged current declines to ≤ 0.01C5A
8 Charging Time Standard charge: 5.5～6.5 h (0.2C5A)
Rapid charge: 1.5～2h (1.0C5A)
9 Maximum charge current 2100mA 1.0C5A
10 Standard discharging Current 420mA 0.2C5A
11 Maximum discharge current 2100mA 1.0C5A
12 Impedance ≤320 mΩ
13 Battery weight Approx. 148g
14 Assembled Mode 4S
15 Operating environment Charging: 5℃～45℃
Discharging: -10℃～60℃
60±25% R.H.
16 Storage Temperature Storage temperature: -20~25℃
Storage Humidity: 60±25% R.H.
<1month: -20°C ~ +40°C
<6month: -20°C ~ +30°C		 Spare battery within six months to recharge the battery to activate at least once
Available Battery Models

Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacity range from 20mAh to 5000mAh to meet various application requirements.

Model Cell Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7V 1200mAh
656090 6.5*60*90mm 6.5*60*92.5mm 3.7V 5000mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh
855465 8.5*54*65mm 8.5*54*65mm 3.7V 4000mAh
863040 8.6*30*40mm 8.8*30*42.5mm 3.7V 1000mAh
904060 9*40*60mm 9.2*40*62.5mm 3.7V 2500mAh
883760 8.8*37*60mm 9*57*51.6mm 3.7V 2000mAh
103048 10.2*30*48mm 10.2*30*50.5mm 3.7V 1500mAh
103040 10.2*30*40mm 10.2*30*42.5mm 3.7V 1200mAh
114261 11*42*61mm 11*42*63.5mm 3.7V 3400mAh
122773 12*27*73mm 12*27*75.5mm 3.7V 2400mAh

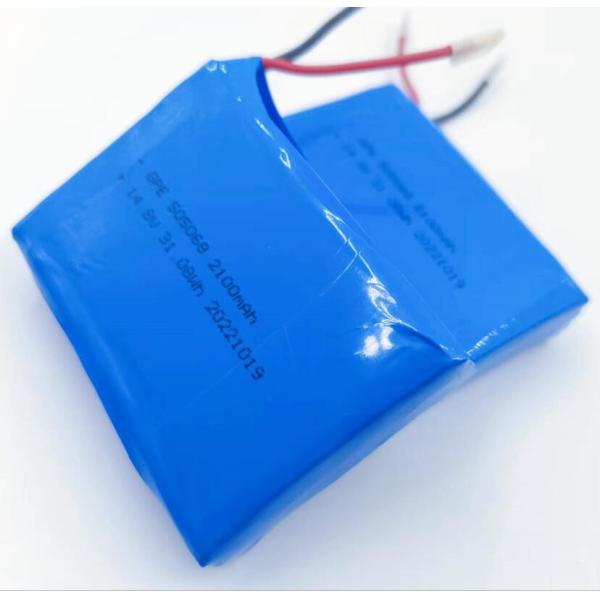

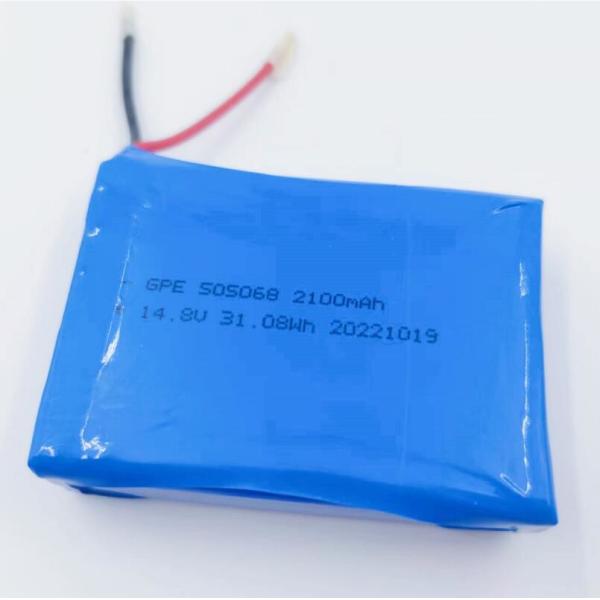

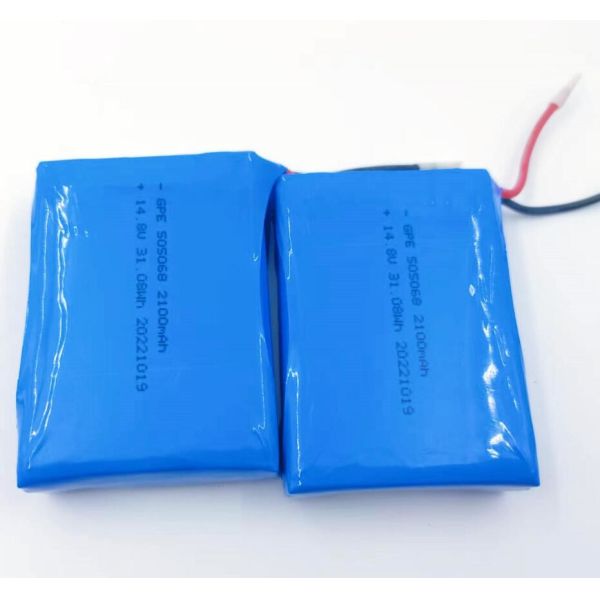

Product Image
14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
Why Choose Gold Power Energy
Advanced Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology
  • Full coverage of battery varieties
Research & Development

Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.

14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
Quality Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.

14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.

14.8V 2100mAh 4S1P Lithium Polymer Battery Pack for Detector with 500 Cycle Life
