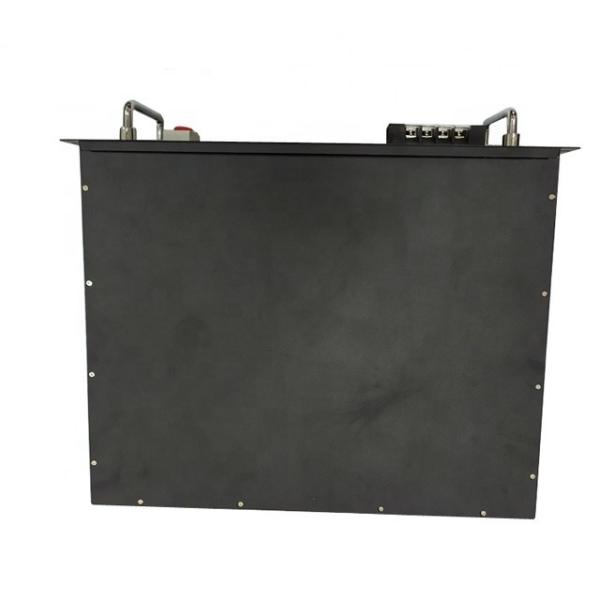

48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
Specifications
Capacity :
100Ah
Weight :
43kg
Dimensions :
432*420*170mm
Energy Capacity :
5KWh
Cycle life :
2000 times
Model Number :
LFP48V100
Certification :
UN38.3, MSDS, RoHS
Place of Origin :
China
MOQ :
2pieces
Payment Terms :
T/T
Supply Ability :
5000Pieces daily
Delivery Time :
within 20days
Packaging Details :
Carton box
Voltage :
48V
Description
Household 5KWh Lithium Battery 48 Volt Solar Energy Storage Batteries
Product Specifications
Item 2.4kWh Pack 2.8kWh Pack 4.8kWh Pack 5.6kWh Pack
Product Name 2.4kWh Pack 2.8kWh Pack 4.8kWh Pack 5.6kWh Pack
Ah Capacity 48V 50Ah 51.2V 55Ah 48V 100Ah 51.2V 110Ah
Energy Capacity 2.4kWh 2.8kWh 4.8kWh 5.6kWh
Cell Type 3.2V LiFePO4 prismatic cells
Cell Number 15 cells 16 cells 30 cells 32 cells
Cell Capacity 50Ah 55Ah 50Ah 55Ah
Cell Connection 15S 16S 2P15S 2P16S
Typical Voltage 48VDC 51.2VDC 48VDC 51.2VDC
Working Voltage Range 42V-54V 44.8V-57.6V 42V-54V 44.8V-57.6V
Dynamic voltage difference between cells ≤50mv
Maximum Discharging Current 1C
Maximum Charging Current 0.5C
BMS Integrated Yes
BMS Communication RS485
BMS Active Equalization Yes
SOC Range 5% - 95%
Usable Capacity 2.16kWh 2.52kWh 4.32kWh 5.04kWh
Lifespan 5000 cycles
Warranty 9MWh per kWh BTT or 10 years, depends on which one comes sooner
Working Temperature Range 0℃ - 45℃
Storage Temperature Range -20℃ - 45℃
Power Connection IP67 push and plug connector
Self-consumption (25℃ 40%SOC) 5% per month
Dimensions 2U 483x89x428mm 3.5U 483x160x428mm 2U 483x89x428mm 3.5U 483x160x428mm
Weight 24KG 25KG 46KG 47KG
Frequently Asked Questions
Q1. Can we put different LiFePO4 battery packs in parallel or series by ourselves?
Yes. The battery can be put in parallel or series by customers. However, there are important considerations:
  • Make sure the voltage of each battery is the same before putting them in parallel. If they are not the same, charge them to the same rate.
  • Don't put discharged and undischarged batteries in parallel. This may reduce the capacity of the whole battery pack.
  • Advise us of the capacity of the whole pack if you plan to put them in series. We will choose the suitable BMS for each battery.
  • If you are not professional in parallel and series battery connections, please don't handle the battery by yourself. It may cause danger and hurt the cycle life of the battery.
Q2. Does your battery pack include BMS? Can we use it for cars?
Yes, our battery pack includes BMS. You can use it for low-speed cars only or as auxiliary power for standard cars. Do not use it for standard cars directly, as that requires more complex BMS design for the pack.
Solar Street Light Battery - 100Ah Rechargeable 48V LiFePO4 Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack 48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
Related Battery Charger for 48V LiFePO4 Portable Solar Battery Pack
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
Other Popular LiFePO4 Battery Packs
Voltage Typical Capacity Charge Discharge Dimension (mm) with case Weight (Kg)
12V 8AH 0.2C-2C 0.2C-2C 150*92*65 1.25
12V 10AH 0.2C-2C 0.2C-2C 150*92*65 1.6
12V 12AH 0.2C-2C 0.2C-2C 151*99*95 1.8
12V 50AH 0.2C-2C 0.2C-2C 195*165*175 9.5
12V 100AH 0.2C-2C 0.2C-2C 330*175*220 19
12V 200AH 0.2C-2C 0.2C-2C 525*240*215 30
24V 10AH 0.2C-2C 0.2C-2C 181*77*175 3
24V 30AH 0.2C-2C 0.2C-2C 195*165*175 12
24V 50AH 0.2C-2C 0.2C-2C 330*175*220 18
24V 100AH 0.2C-2C 0.2C-2C 485*175*240 32
48V 10AH 0.2C-2C 0.2C-2C 223*106*175 7.5
48V 50AH 0.2C-2C 0.2C-2C 522*237*215 33
48V 75AH 0.2C-2C 0.2C-2C 522*237*215 42
48V 100AH 0.2C-2C 0.2C-2C 350*540*160 52
LiFePO4 Rechargeable Battery Packs for Various Applications
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
Why Choose Us
Advanced Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applied
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
Research & Development

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
Quality Control
48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.

48V 5KWh Household Solar Energy Storage Battery with 2000 Cycles LiFePO4 Battery Pack
