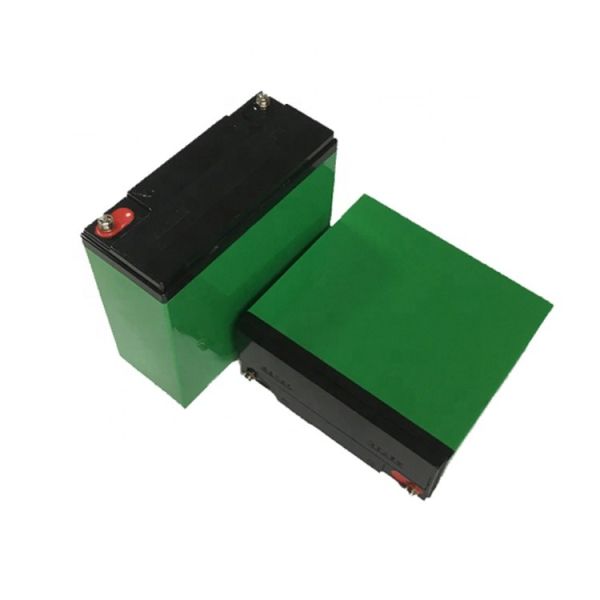

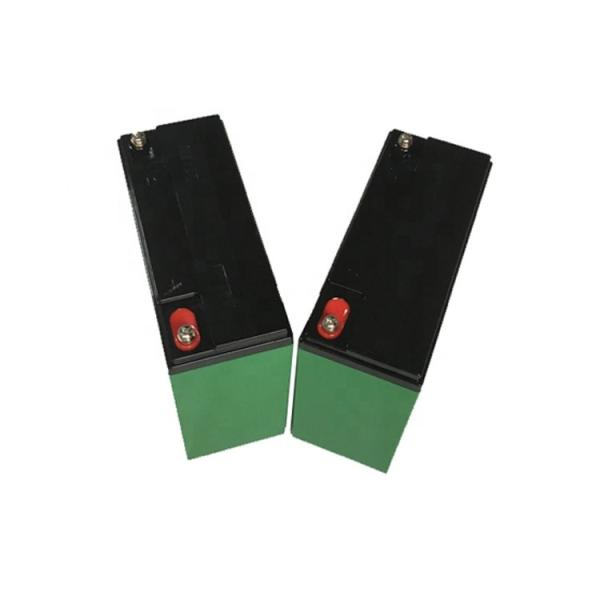

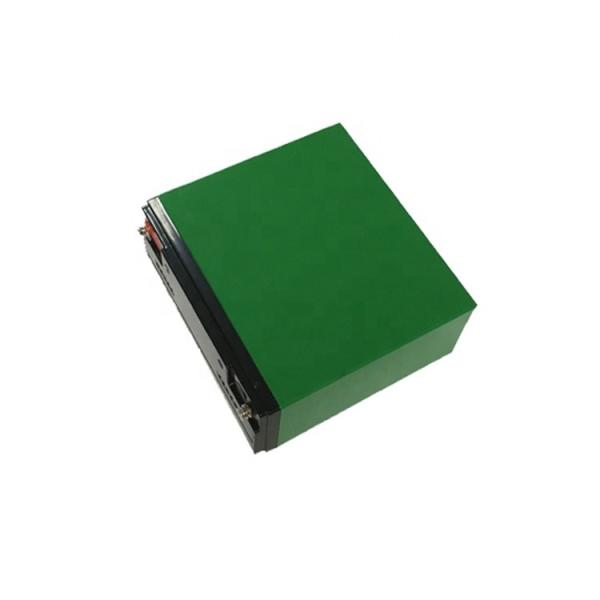

12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
Specifications
Model Number :
LFP12V20
Certification :
UN38.3, MSDS, RoHS
Place of Origin :
China
MOQ :
100pieces
Payment Terms :
T/T
Supply Ability :
5000Pieces daily
Delivery Time :
within 20days
Packaging Details :
Carton box
Battery Type :
LiFePO4
Voltage :
12V
Capacity :
24Ah
Cycle Life :
2000 times
Weight :
2.8kg
Size :
181*77*175mm
Description
Deep Cycle 12V 24Ah LiFePO4 Battery Pack for Solar Street Light
Product Specifications
Name 12.8V 24Ah Energy Storage Batteries
Model LFP12V24
Capacity 24Ah
Cell Type A Grade 32650 Battery
Discharge Current 1C-2C (3C available for motor start applications)
Nominal Voltage 12.8V
Full Charge Voltage 14.6V
Size 181 × 72 × 168 mm
Weight 3kg
Color Black or Customized
Power Indicator Without
Protection Intelligent protection for short circuit, over charge/discharge, over-load, and temperature
Warranty 1 Year
Lifetime >1500 cycles
Additional Hot-Sale LiFePO4 Battery Packs
Voltage Typical Capacity Charge Discharge Dimensions (mm) Weight (kg)
12V8AH0.2C-2C0.2C-2C150×92×651.25
12V10AH0.2C-2C0.2C-2C150×92×651.6
12V12AH0.2C-2C0.2C-2C151×99×951.8
12V50AH0.2C-2C0.2C-2C195×165×1759.5
12V100AH0.2C-2C0.2C-2C330×175×22019
12V200AH0.2C-2C0.2C-2C525×240×21530
24V10AH0.2C-2C0.2C-2C181×77×1753
24V30AH0.2C-2C0.2C-2C195×165×17512
24V50AH0.2C-2C0.2C-2C330×175×22018
24V100AH0.2C-2C0.2C-2C485×175×24032
48V10AH0.2C-2C0.2C-2C223×106×1757.5
48V50AH0.2C-2C0.2C-2C522×237×21533
48V75AH0.2C-2C0.2C-2C522×237×21542
48V100AH0.2C-2C0.2C-2C350×540×16052
Product Images
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications 12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
Frequently Asked Questions
Can I use Lithium batteries mixing with other battery types?
If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.
What will happen if batteries with different capacity are packed together?
If batteries with different capacity or new and old batteries are used together, leakage, zero voltage and other issues might occur. During charging, some batteries may overcharge while others remain undercharged. During discharge, some cannot discharge fully while others may over-discharge, potentially damaging the battery.
What are possible reasons for zero voltage or low voltage of the battery pack?
Short circuit or open circuit of the connector, wrong connection, de-soldering or cold solder joints between batteries and leads, or incorrect connections between batteries.
Why might a rechargeable battery or battery pack fail to charge?
Possible reasons include: zero voltage in the battery or battery pack, wrong internal connections, abnormal electronic components or PCB, charger failure, or external factors like extremely low or high temperatures affecting charging efficiency.
LiFePO4 Rechargeable Battery Applications
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
Why Choose Us
Technology

All-weather applicability (-30~60℃)

Highly safe battery design with advanced electrolyte and separator technology

Full coverage of battery varieties including cylindrical, polymer, LiFePO4, solar storage, and primary batteries

Research & Development

Experienced R&D team with over 60 engineers

Advanced equipment supporting OEM and ODM requirements

12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
Quality Control
12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified

12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have offered various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.

12V 24Ah LiFePO4 Battery Pack with 2000 Cycle Life for Solar Light Applications
Ordering Information
OEM/ODM Welcome
Lead Time 7-12 days for samples and small orders; 12-25 days for bulk orders
Payment Terms T/T, PayPal, Western Union (30% deposit, 70% balance before delivery)
Package 1x Battery with case
