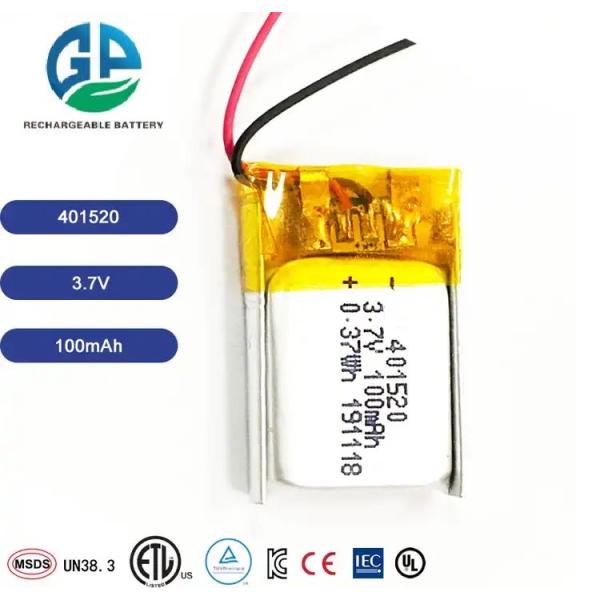

KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
Specifications
Size :
4.0*15*22mm
Cycle life :
500times
Charge voltage :
4.2V
Model Number :
LP401520
Certification :
UN38.3, MSDS, IEC62133, KC
Place of Origin :
China
MOQ :
6000pieces
Payment Terms :
T/T
Supply Ability :
50'000Pieces daily
Delivery Time :
within 15days
Packaging Details :
Bulk packing
Voltage :
3.7V
Weight :
6g
Capacity :
100mAh
Description
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Ion Li-Polymer Battery With PCB And JST PH2.0 Connector
Product Specifications
No. Item Specifications
1 Model 401520
2 Size 4.0*15*22mm (thickness*width*length)
3 Charge voltage 4.2V
4 Nominal voltage 3.7V
5 Nominal capacity 100mAh
6 Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
7 Standard Charging method 0.5C (constant current) charge to 4.2V, then CV (constant voltage 4.2V) charge till charge current decline to ≤0.05C
8 Charging time Standard Charging: 3.0 hours (Ref.)
Rapid charge: 2 hours (Ref.)
9 Max. charge current 1C
10 Max. discharge current Constant current 1C, transient peak current 2C
11 Discharge cut-off voltage 2.45V or 3.0V
12 Operating temperature -20℃ to 60℃
13 Storage temperature 25℃
Other Popular Li-Polymer Battery Models

Shenzhen Gold Power Energy offers over 1,000 models of lithium polymer batteries with capacities ranging from 20mAh to 5000mAh to meet various application requirements.

Model Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7V 1050mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh
Product Images
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
Standard Packaging
KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
Safety Warnings
  • Do not place the battery in water
  • Do not mix fresh batteries with used batteries
  • Do not mix batteries with metal objects
  • Do not insert batteries with the (+) and (-) reversed
  • Do not disassemble, dispose in fire, heat or short circuit
  • Do not put the battery in a charger or equipment with wrong terminals connected
Why Choose Gold Power Energy
Advanced Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design with newest electrolyte and separator technology
  • Full coverage of battery varieties including lithium ion cylindrical, polymer, LiFePO4, and energy storage batteries
Research & Development

Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.

KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
Quality Control KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
Certifications

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.

KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
Factory Overview

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China, offering various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.

KC Approved 401520 3.7V 100mAh Rechargeable Lithium Polymer Battery with PCB and JST PH2.0 Connector
